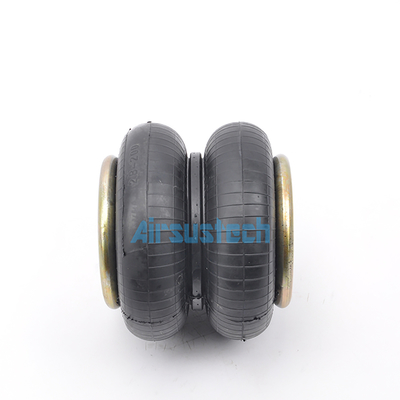

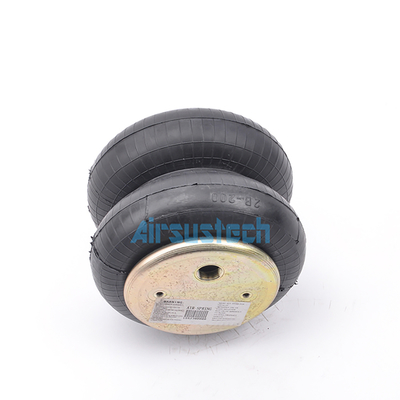

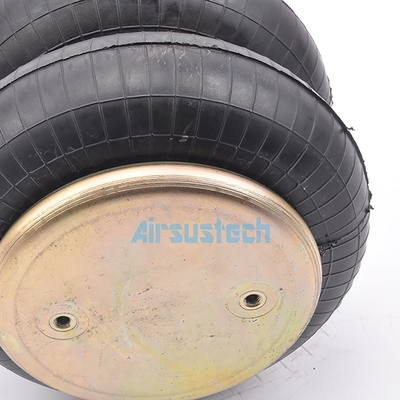

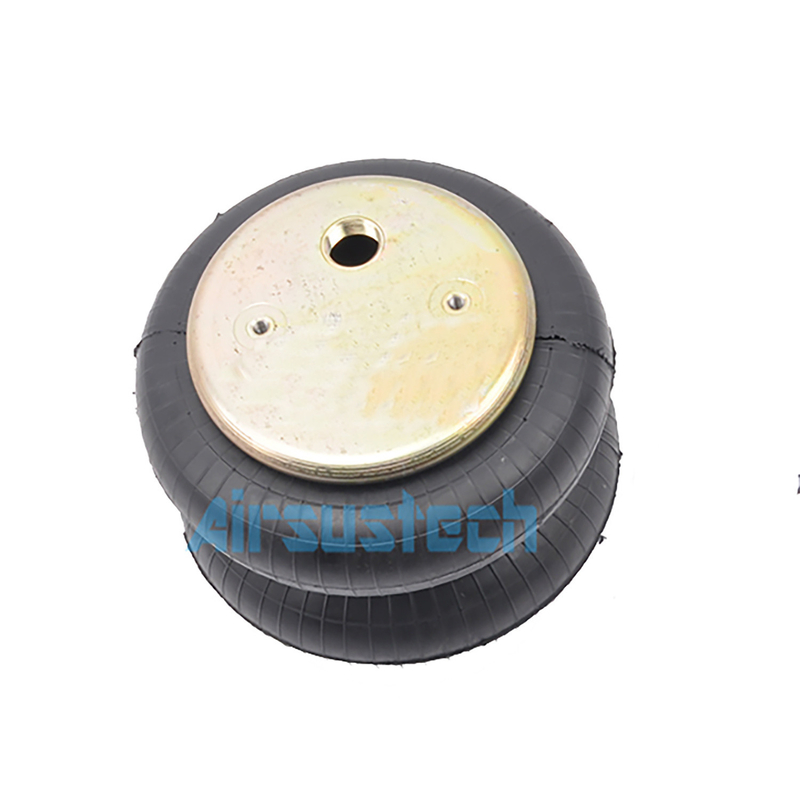

Contitech FD 200-19/2682045000 G3/4 Double Convoluted Rubber Air Spring
OEM NO.
Contitech : FD 200-19
Contitech : FD200-19
Contitech : FD 200 19
Contitech : FD200 19
Contitech : FD20019
Contitech 2682 045000
Contitech 2682045000
2B6910P34 Specifications and Tecnical Data
Nut/blind nut
Top plate screw (nut) teeth: 2 x M8×1.25
Top plate screw center distance: 89 mm
Bottom cover plate screw (nut) teeth: 2 x M8×1.25
Bottom plate screw center distance : 89 mm

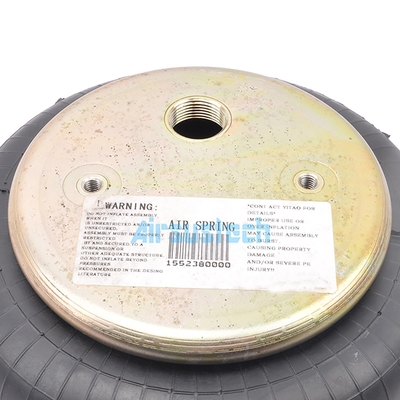

Air hole/air inlet/air fitting
air hole/air inlet: G3/4
The distance between the screw center and the air inlet: 38mm

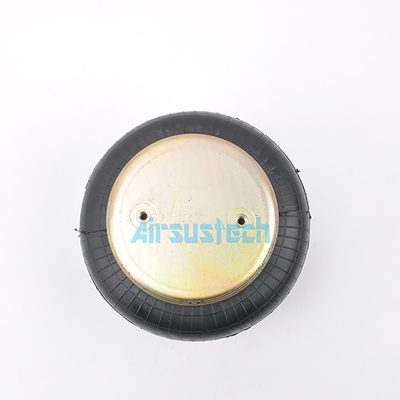

Cover plate
Top plate diameter (width): 160 mm
bottom cover diameter (width): 160 mm
bell-shaped rubber bellows
rubber bellows diameter: 224 mm
Max. rubber bellows diameter: 251mm
Height
Min. height: 75mm
Max. height: 260mm
Bumper block/bumper block
without bumper
Belt loop/Girdle hoop/Girdle ring
with one belt loop
Min. pressure: 0 bar
Return force to min.height: ≤200N
Overall weight with clamped plates: 3.2kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 220mm, minimum 205mm
| Pressure p[bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V[l] |
| Force(Load) [KN] |
6.1 |
8.2 |
10.3 |
12.5 |
14.5 |
16.5 |
6.0 |
| Spring rate [N/cm] |
750 |
960 |
1110 |
1340 |
1510 |
1730 |
| Natural frequency [Hz] |
1.8 |
1.7 |
1.7 |
1.6 |
1.6 |
1.6 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V [l] |
| Height H[mm] |
250 |
4.9 |
6.6 |
8.2 |
9.5 |
11.7 |
13.4 |
6.5 |
| 210 |
6.7 |
8.8 |
11.0 |
13.3 |
15.5 |
17.6 |
5.8 |
| 170 |
7.9 |
10.5 |
13.1 |
15.7 |
18.3 |
20.7 |
4.9 |
| 130 |
9.1 |
12.0 |
15.0 |
17.8 |
20.7 |
23.4 |
4.0 |
| 90 |
9.9 |
13.2 |
16.6 |
19.8 |
23.0 |
25.8 |
2.9 |
Air Springs
Rubber air springs use rubber elasticity and air pressure to obtain comprehensive shock absorption, shock absorption, shock isolation, noise prevention and cushioning performance. According to the sealing structure, it is divided into four categories: pressure self-sealing type, rim clamping type, hoop sealing type and hybrid type. The load of the rubber air spring is mainly borne by the cord, and the number of layers of the cord is mainly composed of 2 layers. The product is required to consist of 4 layers of cord. The inner layer of rubber is mainly used for sealing, and the outer layer of rubber is not only for sealing, but also for protection.
This rubber air spring can be used in vibration damping equipment. It can better achieve vibration isolation and ensure the safety and stability of the base and control system of the vibration equipment by utilizing the characteristics of high frequency vibration isolation, sound insulation and low natural vibration frequency. Such as vibration isolation of vibrating screens, vibration reduction of luxury vehicle seats and other equipment.
