Rubber Air Spring HF80/90-1 Single Convoluted Type Air Bellows For Vibration Test Systems

Rubber Air Spring HF80/90-1 Single Convoluted Type Air Bellows For Vibration Test Systems

Technical parameters

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth: /

Top Cover Plate Screw (Nut): /

Bottom Cover Plate Screw (Nut) Tooth: /

Screw Center Distance of Bottom Cover Plate: /

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet: /

Cover Plate

Top Cover Plate Diameter: /

Bottom Cover Plate Diameter: /

Rubber Bellows

Design diameter D_0: 80mm

Maximum outer diameter D(mm): 136mm

End outside diameter φ₀(mm):82mm

Design height: 90mm

Whole trip L(mm): 50-110mm

0.4-0.7Mpa bearing capacity (Kg): 201-352

Bumper block / Buffer block

With Bumper Block Or Without Bumper Block

Girdle Hoop / Girdle Ring

Without Girdle Hoop

Rubber Material: The HF80/90-1 is made of high-quality rubber with excellent elasticity and wear resistance.
Loose-fit Flange: This shock absorber may be equipped with a loose-fit flange for easy installation and connection, ensuring a tight fit with the equipment.
Pneumatic Structure: The internal pneumatic structure automatically adjusts the air pressure according to load changes, achieving effective shock absorption.

Applications Include

Industrial Machinery: Vibration isolation foundations for precision machine tools, stamping equipment, vibrating screens, etc.

Vehicles: Air suspension systems for commercial buses and truck cabs

Equipment Leveling: Optical platforms, laboratory equipment, and other equipment require a highly stable and level foundation.

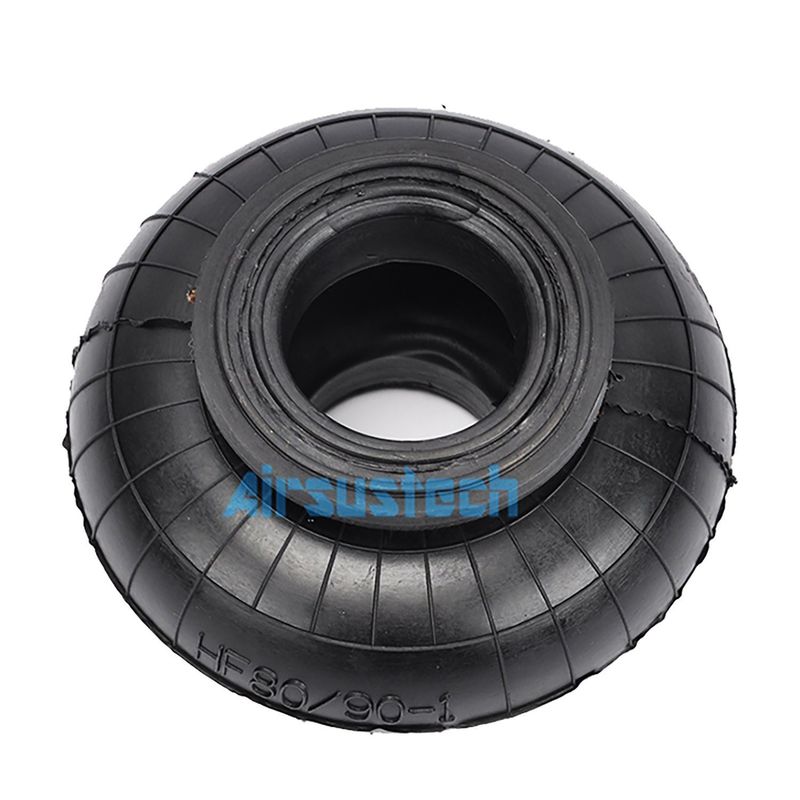

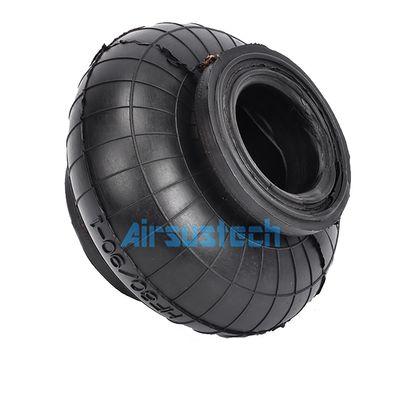

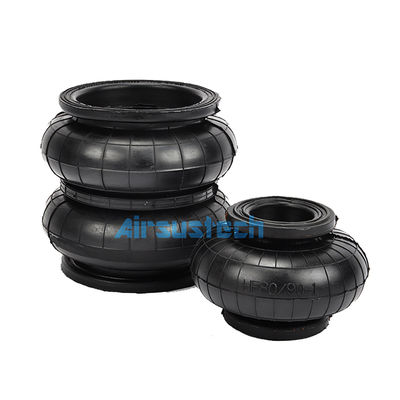

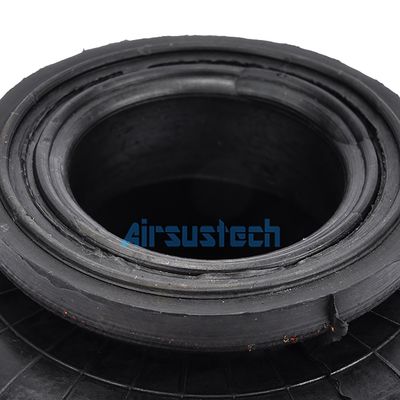

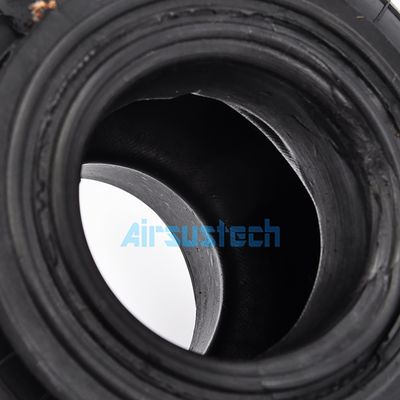

The Related Picture of HF80/90-1
