| Model Name: | Industrial Air Spring | Spring Material: | Rubber |
|---|---|---|---|
| Cross Reference: | Contitech FS 530-14 | Transport Package: | Strong Cartons |
| Specification: | Rubber | Type: | Gas-Filled |
| Customization: | Available | Customized Request | Color: | Black |

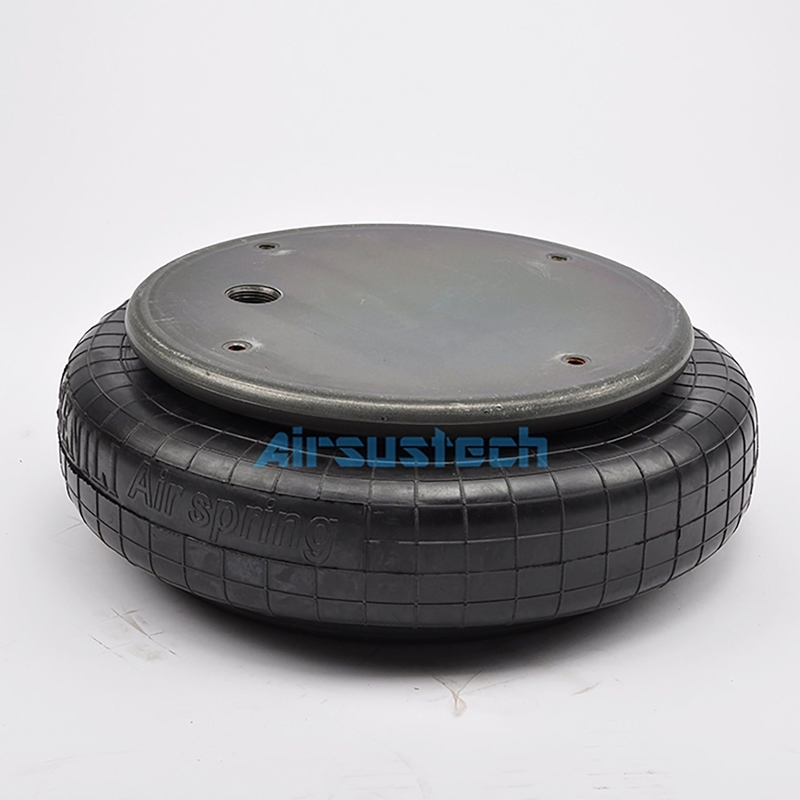

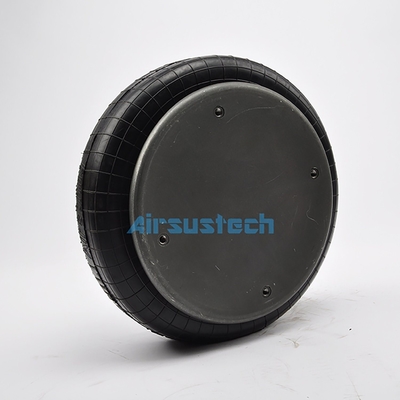

Contitech FS 530-14 3/4-14NPTF Rubber 1 Convoluted Air Spring Replacement
Refer No.
CONTITECH FS 530-14
CONTITECH FS 53014
CONTITECH FS 530 14
Continental FS 530-14
Firestone Style 113-1
Firestone. W01-358-7112
Firestone. W01 358 7112
Firestone. W013587112
Firestone. WO1-358-7112
Firestone. WO1 358 7112
Firestone. WO13587112
FleetPride AS7112
Goodyear 1B14 358
Goodyear 1B14358
Goodyear 1B14-358
Goodyear Flex No. 578913352
Taurus 6326
Triangle AS-4339
Triangle AS4339
TRP AS71120
Dayton 354-7112
Dayton 354 7112
Dayton 3547112
Hendrickson S-13044
Loadguard SC2012
Fleetrite 554782C1
Ridewell 1003587112C
SAF Holland 90557028
Navistar

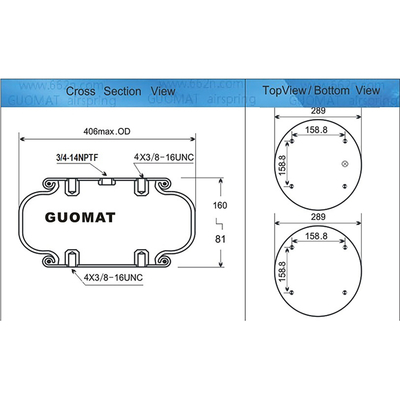

Specifications and Detailed Technical Parameters:AIRSUSTECH 1B53014P01
Nut/blind nut
Top plate screw (nut) teeth: 4X3/8-16UNC
The screw center distance of the top cover plate: 158.8mm
Screw (nut) teeth of the bottom cover plate: 4X3/8-16UNC
The screw center distance of the bottom cover plate: 158.8 mm

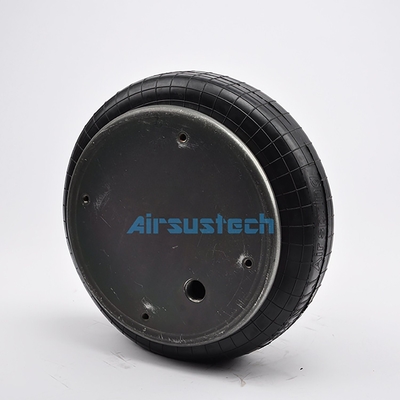

Air hole/air inlet/air fittings
Air hole/air inlet: 3/4NPTF-14NPTF
The air hole is in the middle of the screw center
Cover plate
Top plate diameter: 289 mm
Diameter of the bottom cover: 289 mm
Bell rubber bellows
Maximum diameter of rubber bellows: 406 mm
Natural diameter of rubber bellows: 360 mm
Working stroke: minimum 81 mm to maximum 160 mm
Maximum height: 160 mm
Minimum height: 81 mm
Bumper block/bumper block
No bumper block
Belt loop/Girdle hoop/Girdle ring
Withot belt loop/girdle hoop/girdle ring
Min. pressure: 0 bar
Return force to min.height: ≤300N
Overall weight with clamped plates: 6.1kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 150mm, minimum 120mm
| Pressure p[bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force(Load) [KN] | 18.6 | 24.9 | 31.5 | 37.9 | 44.4 | 50.8 | 11.0 |
| Spring rate [N/cm] | 3650 | 4410 | 5340 | 6140 | 7220 | 7920 | |
| Natural frequency [Hz] | 2.2 | 2.1 | 2.1 | 2.0 | 2.0 | 2.0 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 160 | 17.1 | 23.0 | 29.0 | 35.0 | 41.2 | 47.3 | 11.8 |
| 140 | 20.0 | 26.8 | 33.7 | 40.6 | 47.7 | 54.5 | 10.7 | |
| 120 | 22.3 | 29.8 | 37.3 | 44.9 | 52.7 | 60.2 | 9.5 | |
| 100 | 24.1 | 31.9 | 40.0 | 48.1 | 56.3 | 64.3 | 8.2 | |
| 80 | 25.3 | 33.4 | 41.9 | 50.3 | 58.8 | 67.1 | 6.6 | |
| 60 | 26.0 | 34.5 | 43.4 | 52.0 | 60.8 | 69.1 | 4.6 | |
Precautions when installing the air spring
When installing the air spring, try to ensure that the upper seat and the lower seat have the same center line, and minimize the offset and tilt of the center line of the upper seat and the lower seat of the air spring. Excessive offset and tilt will increase the wear of the air spring, and there are The possibility of internal friction can easily lead to early damage to the air spring. When installing the air spring, it should be ensured that there is enough installation space, no friction with any part, and no interference with any part during the entire use period, and necessary measures should be taken to prevent the impact of hard objects.
