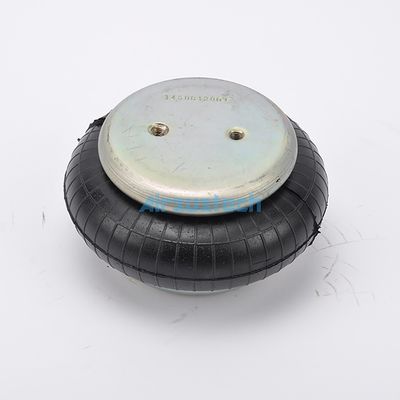

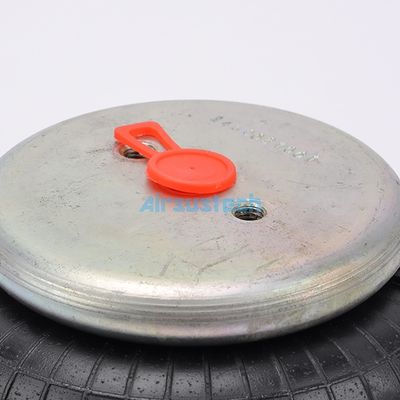

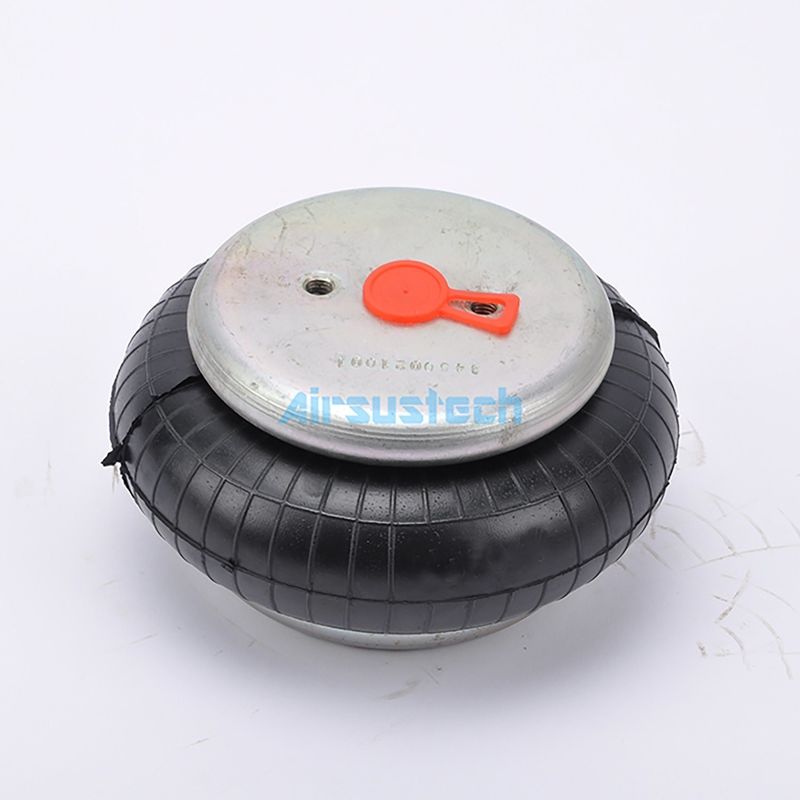

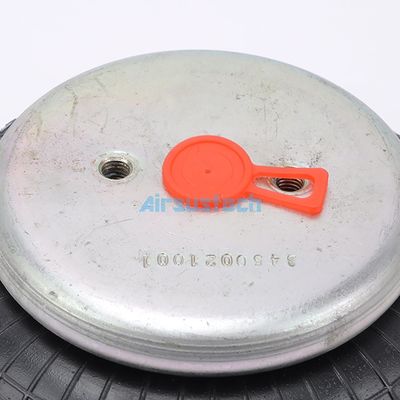

Air Springs Shocks FS70-7 Contitech 2681015000 Rubber Industrial Air Bag For Packaging Machine

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B7070

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Quality:	100 % Tested	Fuction:	Reduce Shock
Transport Package:	Strong Cartons	HS Code:	8708809000
Warranty:	12 Months	Type:	Gas-Filled
Contitech:	FS70-7	Other Name:	Rubber Air Bags

Air Springs Shocks FS70-7 Contitech 2681015000 Rubber Industrial Air Bag For Packaging Machine

Product Description

Parameter	Details
Brand	GUOMAT
Model	1B7070
Place of Production	Guangzhou
Product Type	Rubber Air Spring
Quality Assurance	One-Year Warranty
Packaging Method	Export Carton Packing
Packing Quantity	12 Pieces per Carton
Net Weight	1.378 kg / Piece
Carton Size	33 × 33 × 22 cm
Supply Capability	Stable Production & Bulk Order Support

Compatible with Other Brands & Their Part Numbers
Contitech Part Number: FS70-7

Contitech Part Number: 2681015000

Phoenix Part Number: SP1B05

B-osch Part Number: EB-165-65

Weforma Part Number: WBE 200-E1

Specifications & Technical Parameters

1. Mounting Configuration

Top Mounting Thread	2 × M8 × 1.25
Top Mounting Center Distance	44.5 mm
Bottom Mounting Thread	2 × M8 × 1.25
Bottom Mounting Center Distance	44.5 mm

Symmetrical mounting layout ensures balanced load transfer and secure installation.

2. Air Hole Configuration

Air Inlet Thread	1/4"
Distance: Air Hole to Mounting Thread	22.25 mm

Standard threaded air connection compatible with common pneumatic systems.

3. End Plate Dimensions

Top Plate Diameter	105 mm
Bottom Plate Diameter	105 mm

High-strength metal plates provide structural rigidity and stable fastening.

4. Bellows Dimensions & Stroke

Maximum Bellows Diameter	165 mm
Natural Bellows Diameter	150 mm
Recommended Installation Diameter	180 mm
Working Stroke	65 mm
Maximum Height	115 mm
Minimum Height	50 mm

Designed to deliver stable vertical motion and consistent load support within the defined operating range.

Application in Packaging Machines

The GUOMAT 1B7070 air spring is widely used in packaging machinery for vibration isolation and load support. In high-speed packaging systems, continuous operation often generates mechanical vibration and impact forces. The 1B7070 helps absorb shock and reduce vibration transmission, improving machine stability and operational precision.

By maintaining consistent support force and controlled vertical movement, the air spring contributes to smoother equipment performance, reduced component wear, and extended service life of the packaging system. It is particularly suitable for use in automatic filling machines, sealing machines, and material handling sections where stable positioning is essential.

Air Springs Shocks FS70-7 Contitech 2681015000 Rubber Industrial Air Bag For Packaging Machine 0
