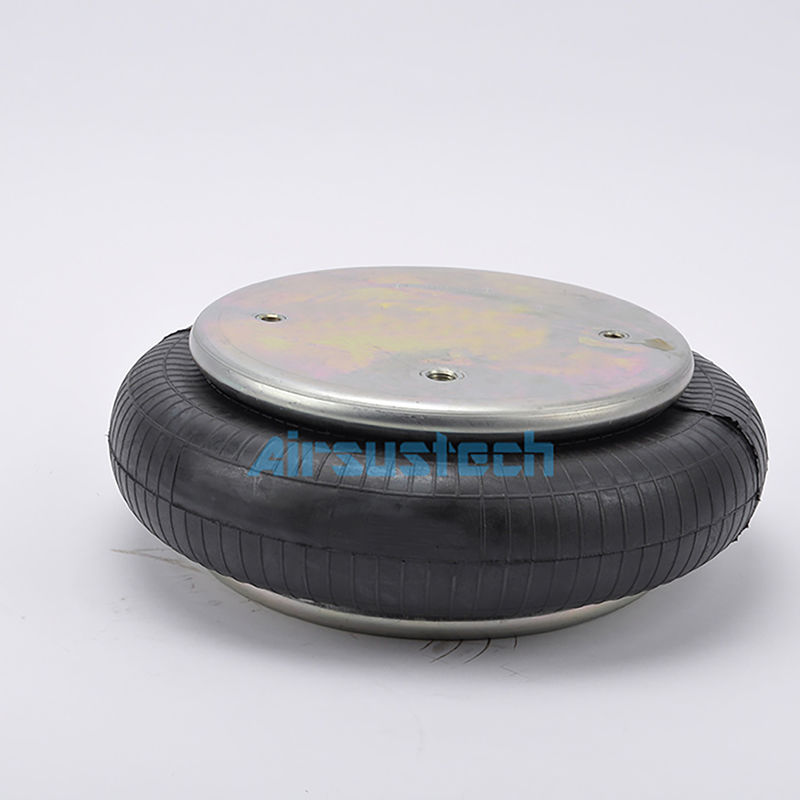

1B12-301 Goodyear Single Convoluted Air Spring Tested FS 330-11 468 Contitech Air Bags

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B7009

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Part:	Industrial Air Spring	Brand:	GUOMAT
Quality:	100 % Tested	Function:	Reduce Shock
Origin:	Guangzhou, China	Warranty:	12 Months
Firestone:	W01-358-7009	Contitech:	FS330-11 468

1B12-301 Goodyear Single Convoluted Air Spring Tested FS 330-11 468 Contitech Air Bags

Specifications and Detailed Technical Parameters

Type 3 Bead Plate, 2pcs×3/8-16UNC Blind Nuts On 157.5mm Centers, 1/4" NPTF Offset Port, 325mm Max. OD, 68-160mm Working Stroke, 231mm Top and Bottom Cover Plate, With bumper block, Without girdle hoop/Girdle ring

Cross Reference
Firestone W01-358-7009 / W01 358 7009 / W013587009

Contitech FS 330-11 468 / FS330-11 468

Goodyear 1B12-301 / 1B 12-301

Goodyear 578913301 / 578 91 3 301 / 578-91-3-301

Triange 6374 / 4468

SAF Holland	90557002
SAF Holland	AR741
Ridewell	1003587009C

Force Table

Assembly Height(in.)	Volume@100PSIG(in3)	Pounds Force
Assembly Height(in.)	Volume@100PSIG(in3)	@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
5.0	394	780	1690	2640	3730	4870
4.0	327	1300	2610	4060	5500	7050
3.0	244	1580	3280	5000	6720	8440
