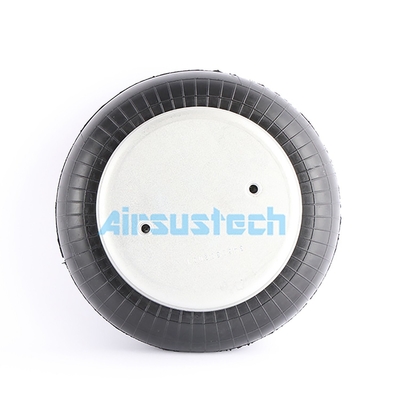

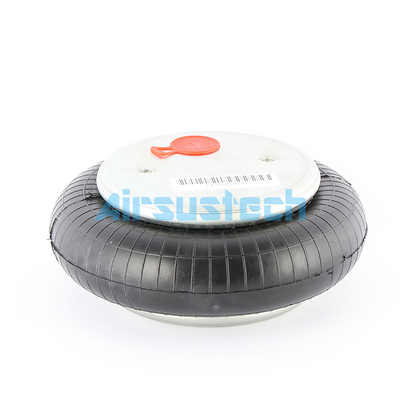

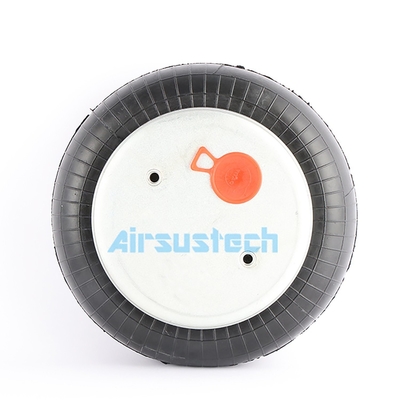

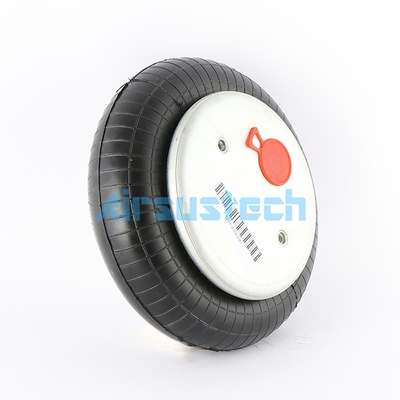

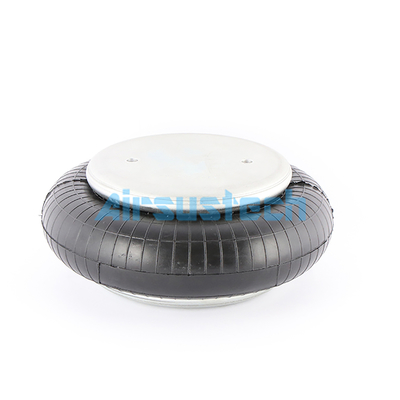

Cross Contitech FS200-10 Phoenix SP1B12 G3/4 Air Inlet Rubber Air Bag

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B20010-3/4

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Type:	Shock Absorber	Quality:	100 % Tested
Function:	Reduce Shock	Cross Reference:	Contitech FS 200-10
HS Code:	8708809000	Warranty:	12 Months
Material:	Rubber And Steel	Customization:	Available \| Customized Request
Highlight:	SP1B12 Air Inlet Rubber Air Bag , Phoenix Air Inlet Rubber Air Bag

Cross Contitech FS200-10 Phoenix SP1B12 G3/4 Air Inlet Rubber Air Bag

Cross reference

Fire-stone W01-M58-6374 / W01 M58 6374 / W01M586374 / WO1M586374 / WO1-M58-6374 / WO1 M58 6374
Contitech: FS 200-10 / FS200-10
Phoenix: SP 1B 12 / SP1B12 / SP 1 B 12
Dunlop(FR): : 9"1/4x1 S09101
Bo sch: 822419004
Fes to: : EB-250-85
Norgren: : PM/31091(81/4x1)

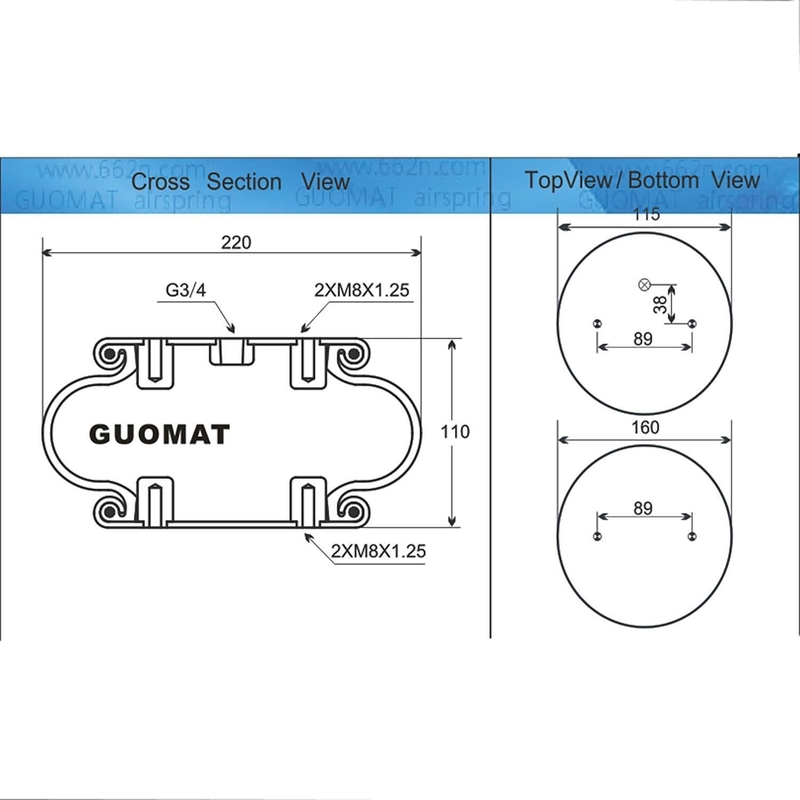

The Contitech FS200-10 Technical Data

The cover plate diameter: 161mm

Threaded hole specifications: M8,15mm

Center distance between threaded holes: 89mm

Rubber bellows max diameter: 250mm

Max height: 140mm

Min height: 51mm

Type	Order No.
Rubber bellows only
with crimped plates.G1/4 air inlet A=44.5mm excentrical
with crimped plates and bumper A=44.5mm excentrical
with crimped plates.G3/4 air inlet A=38.1mm excentrical
with stainless steel crimped plate. G3/4 air inlet A=38.1mm excentrical
