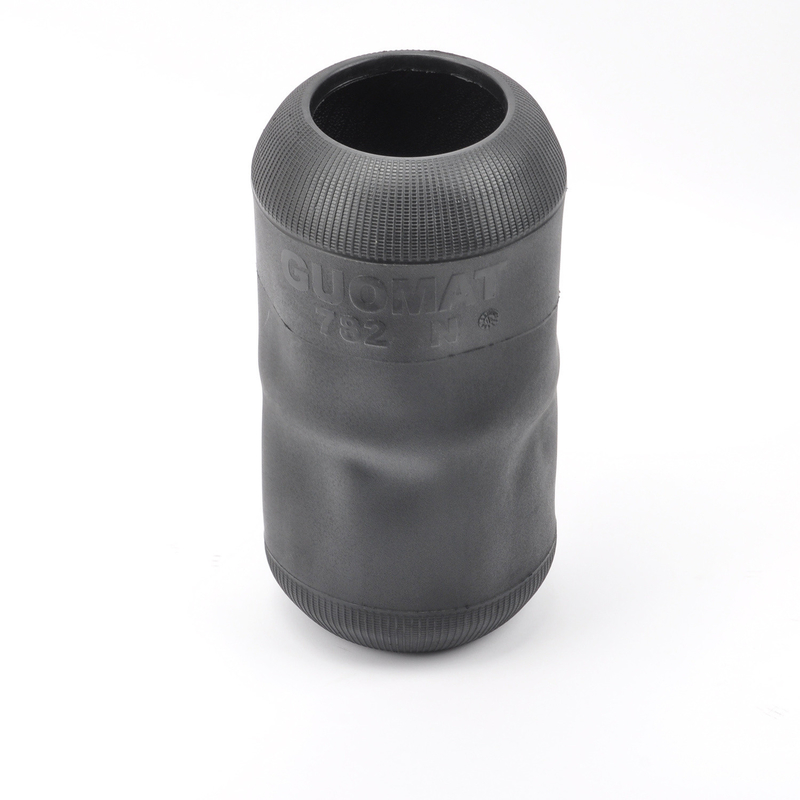

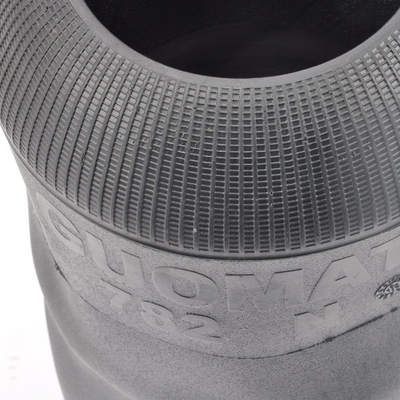

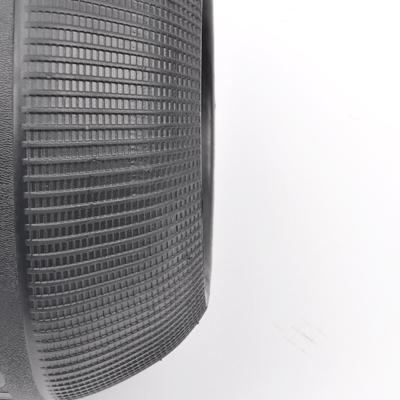

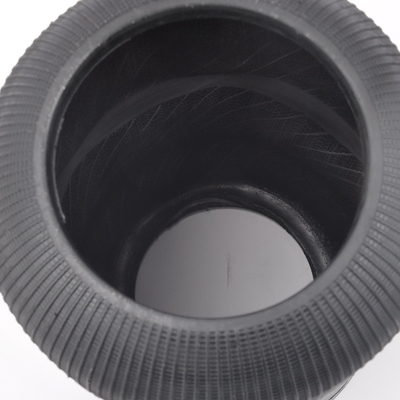

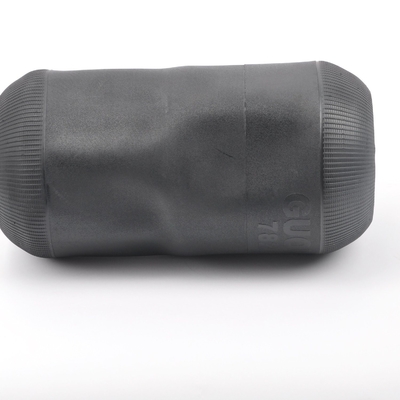

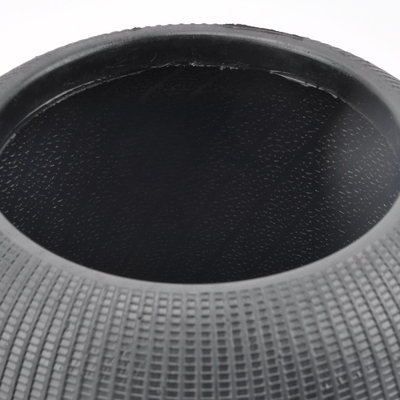

782N Contitech Rubber Bellows W01-095-0197 Firestone Bus Air Suspension Spring

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	782N

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD29.9-49.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Name:	Bus Air Spring	Material:	Rubber
Damping Force Direction:	Bidirectional	Quality:	100 % Tested
Trademark:	GUOMAT	HS Code:	8708809000
Contitech:	782N	Firestone:	W01-095-0197
Highlight:	Firestone Bus Air Suspension Spring , W01-095-0197 Bus Air Suspension Spring

782N Contitech Rubber bellows W01-095-0197 Firestone Bus Air Suspension Spring

Product Speciafications and Detailed Parameters

Natural Outer Diameter	210mm
Opening Diameter	130.8mm
Height	412mm

Cross Reference

CONTITECH 782 N

FIRESTONE 1R1A 415 285 W01 095 0197

FIRESTONE W01-095-0197

GOODYEAR 9013

PHOENIX 1E 21 D

CF GOMMA 1 S 285-25 97555

TAURUS B 124

IRIS BUS (French carV.I.) 5.000.954.176

IVECO 4703904

IVECO 4703972

IVECO 4716989

MENARINI 178741

MERCEDES BENZ A 382 327 72 01

RENAULT V.I. 5000 954 176

Other Model Size of Continental bus air spring bellows replacement we could offer

883 N1	884 N	896 N	897 N
916 N1	921 N	927 N	928 N
936 N	943 N	944 N	945 N
975 N	1234 N	1415 N	1421 N
1720 N	1774 N	1782 N1	1788N

What is a Bus Rubber Air Spring?

A bus rubber air spring is a suspension system component used in buses and other large vehicles. It is mainly composed of rubber and air, and is designed to provide better comfort and stability. This spring adjusts the internal air pressure to adapt to different load conditions, thereby effectively absorbing the vibration caused by uneven road surfaces and reducing the impact on passengers.

Main Features

Shock absorption effect: It can effectively absorb shock and improve riding comfort.
Height adjustment: It automatically adjusts the height according to the load of the vehicle to maintain the balance of the vehicle body.
Durability: The rubber material has good wear resistance and anti-aging properties, and is suitable for long-term use.
