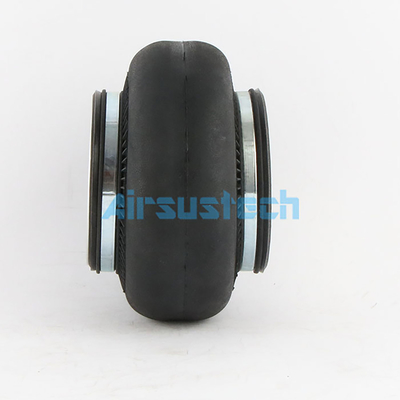

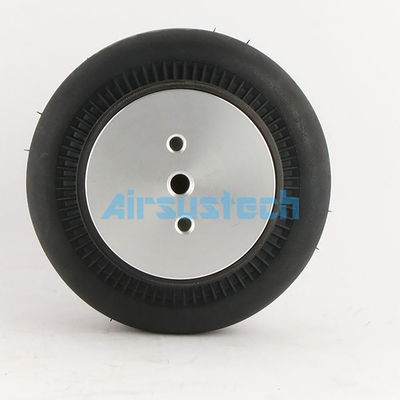

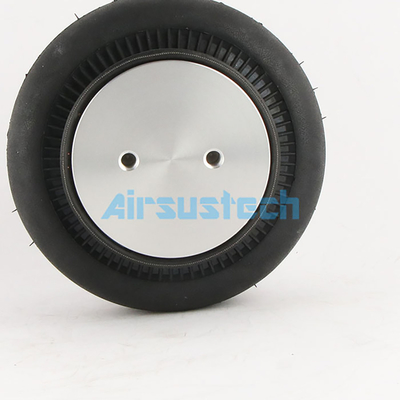

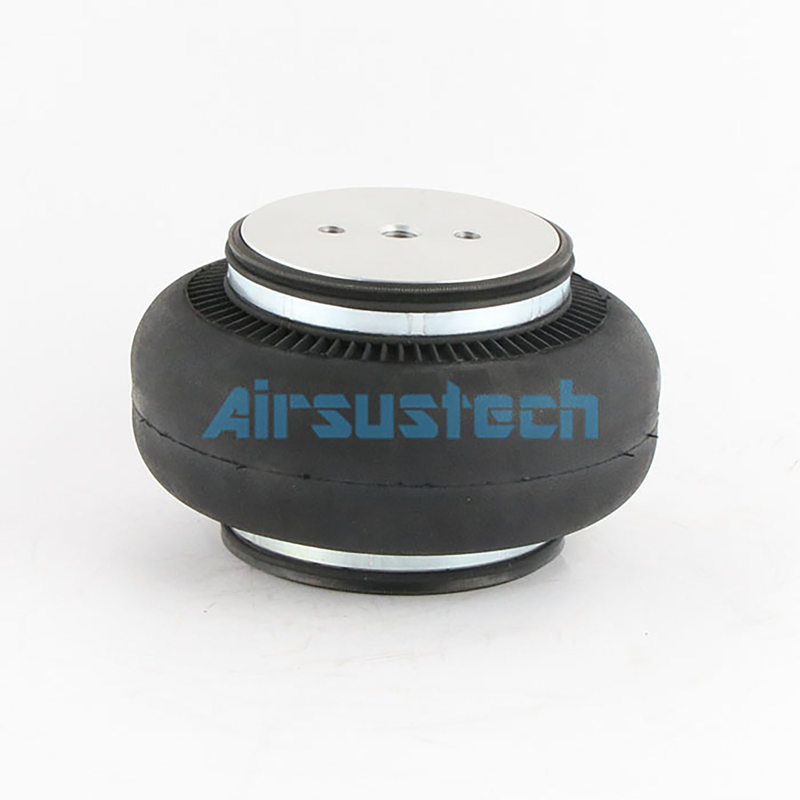

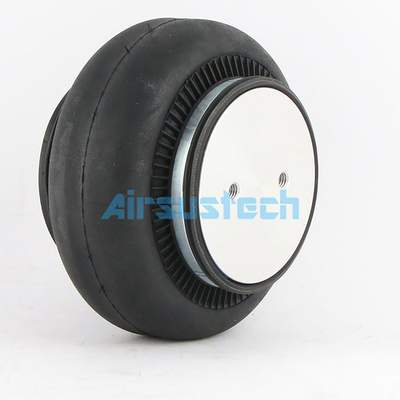

1K176120 Air Bag Replace Goodyear 1B7-544 1B7544 Single Convoluted Air Supsension Spring

1K176120 Air Bag Replace Goodyear 1B7-544 1B7544 Single Convoluted Air Supsension Spring

1K176120 Air Bag Replace Goodyear 1B7-544 1B7544 Single Convoluted Air Supsension Spring
1K176120 Air Bag Replace Goodyear 1B7-544 1B7544 Single Convoluted Air Supsension Spring
1K176120 Air Bag Replace Goodyear 1B7-544 1B7544 Single Convoluted Air Supsension Spring
Product Details:
Place of Origin: Guangzhou China
Brand Name: GUOMAT
Certification: ISO/TS16949, ISO9001
Model Number: 1K176120
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: USD79.9-99.9/PC
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 3-7 Working Days
Payment Terms: L/C, T/T, Western Union Or Others
Supply Ability: 1000PCS/Week
Contact Now
Detailed Product Description
Convolutions: Single Convoluted Air Spring Type: Shock Absorber
Quality: 100 % Tested Fuction: Reduce Shock
Cross Reference: Goodyear 1B7-544 Warranty: 12 Months
Stroke: 75mm Min Height: 55mm
Highlight:

Single Convoluted Air Supsension Spring

,

1K176120 Air Supsension Spring

,

1B7544 Air Supsension Spring

1K176120 Air Bag Replace Goodyear 1B7-544 1B7544 Single Convoluted Air Supsension Spring



Product Description


Replace Goodyear 1B7-544
Replace Goodyear 1B 7-544
Replace Goodyear 1B7 544
Goodyear 579-912-544
Goodyear 579 912 544
Goodyear 579912544
Goodyear 579-912-544-00000



Material: Rubber+Steel

Certifications: ISO/TS16949, ISO9001

Warranty Period: 12 Months

Convoluted: Single

Packing: Neutral Box or as Customers'Request

Sample: Available

Condition: 100% New

Product Name: Air Spring

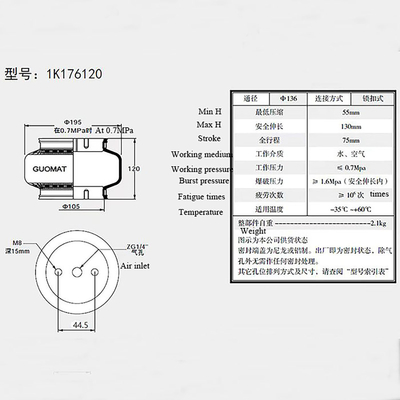

Specifications and Technical Parameters



Rubber bellow diameter at 0.7MPa: 195mm

Min height: 55mm

Max height: 130mm

Stroke: 75mm

Working medium: Water, Air

Working Pressure: ≥1.6MPa

Fatigue time: ≥106times

Air inlet: ZG 1/4'', Centered

Screw: 2pcs M8 on top plate and bottom plate

Temperature: -35 ~ +60


1K176120 Air Bag Replace Goodyear 1B7-544 1B7544 Single Convoluted Air Supsension Spring 01K176120 Air Bag Replace Goodyear 1B7-544 1B7544 Single Convoluted Air Supsension Spring 1
