| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B5330 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Steel | Price Condition: | FOB China |
|---|---|---|---|
| Color: | Black | Type: | Convoluted Air Spring |
| Warranty: | 12 Months | Suitable For Trucks: | Trailer Trucks Semi Truck |
| Feature: | In-Situ Installation | Position: | Universal |
| High Light: | Contitech Rubber Industrial Shock Absorber,Replacement Industrial Shock Absorber,1B12-300 Industrial Shock Absorber |
||

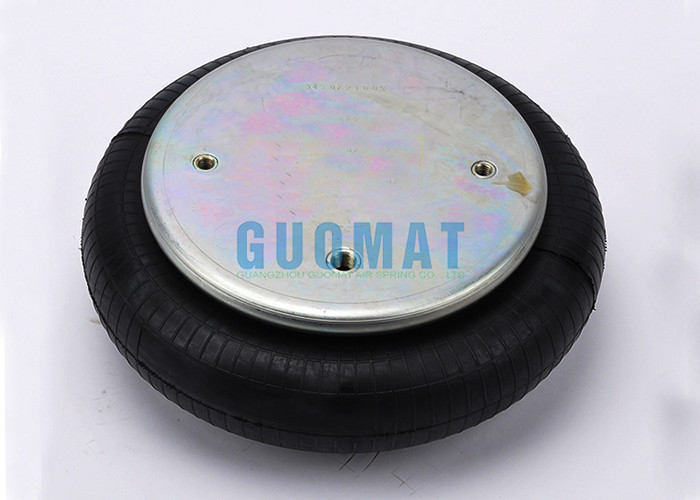

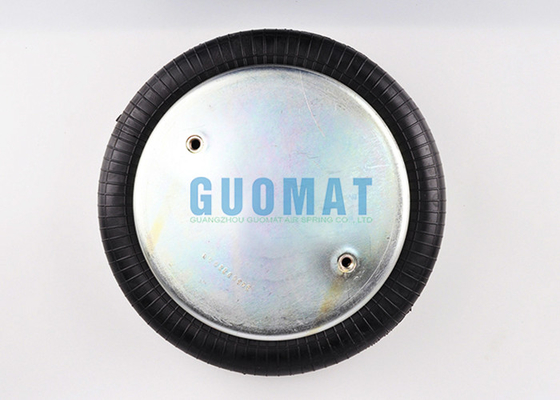

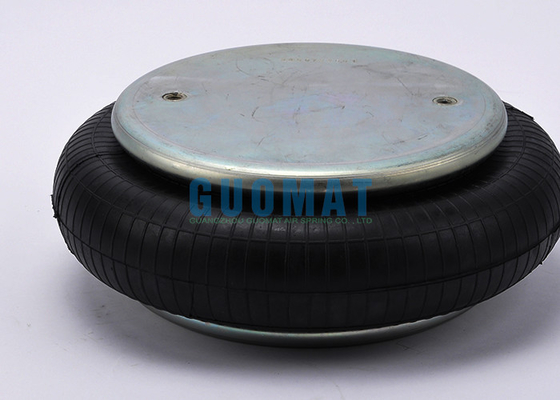

Industrial Shock Absorber 1B12-300 Goodyear FS 330-11 474 Contitech Rubber Air Bag Replacement
Product Description
|
Firestone |
W01-358-7008 / W01 358 7008 / W013587008 |
|
Firestone |
WO1-358-7008 / WO1 358 7008 / WO13587008 |
|
Contitech |
FS330-11 474 / FS 330-11 474 / FS330-11474 |
|
Goodyear |
1B12-300 / 1B12 300 / 1B 12-300 |
|
Goodyear |
1B12-313 / 1B 12-313 / 1B12 313 |
|
Triangle |
6374/4474 |
|
Holland(Neway) |
90557226 |
Brand: GUOMAT
Model Number: 1B5330
Warranty: 1 Year
Material: Rubber+Steel
Application: For Industrial,Truck,Trailer
Name: air spring/airbag/air suspension
Type: Rolling lobe air spring

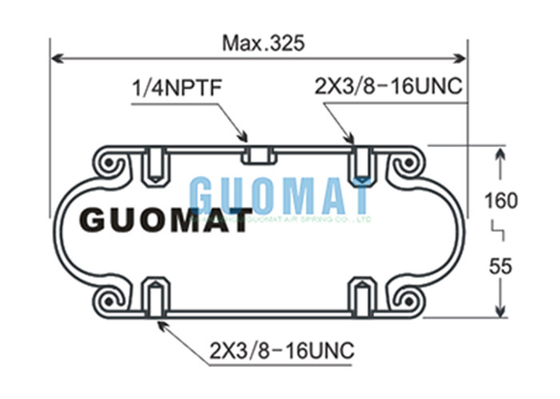

GUOMAT 1B5330 Industrial Air Spring Technical Data
Net weight: 4.8KG
Cover diameter: 231mm
Threaded hole specifications: 3/8-16UNC
Air hole specification: 1/4NPTF
Center distance between threaded holes: 157.5mm
Distance between threaded hole and air hole: 73mm
Natural outer diameter: 310mm
Maximum outer diameter: 325mm
Maximum height: 160mm
Minimum height: 55mm
Advantages of Our Products
1.Excellent materials
2. Effective impact
3.In-situ installation
4. Comfortable and stable
5.Long life
6. Eliminate abnormal noise
GUOMAT More Models
|
W01-M58-6165 |
W01-M58-6166 |
W01-358-7731 |
|
W01-M58-6374 |
W01-358-7008 |
W01-358-7009 |
|
W01-358-6994 |
W01-358-7451 |
W01-358-7564 |
|
W01-358-7725 |
W01-358-7598 |
W01-358-7095 |
|
W01-358-7551 |
W01-358-6926 |
W01-358-6884 |
|
W01-358-6890 |
W01-358-6897 |
W01-358-6900 |
|
W01-358-6902 |
W01-358-6905 |
W01-358-6908 |
|
W01-358-6910 |
W01-358-6926 |
W01-358-6932 |
|
W01-358-6935 |
W01-358-6940 |
W01-358-6941 |
