Contitech SZ 37-10 P02 Air Suspension Spring With G 1/8 Air Inlet Air Actuator

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	G74013

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$29.9-49.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Industrial Actuator	Warranty:	12 Months
Material:	Rubber And Steel	Brand:	GUOMAT
Firestone:	W02-358-3002	Stud Material:	Plastic
Air Inlet:	G 1/8	Function:	Reduce Shock
Highlight:	Contitech Air Suspension Spring , Air Suspension Spring With Air Actuator

Contitech SZ 37-10 P02 Air Suspension Spring With G 1/8 Air Inlet Air Actuator

Product Technical Data

Air Spring Description	1/8 NPT Each End, Plastic Studs
Air Inlet Type	NPT
Bumpers	w/o Bumpers
Air Inlet	1/8 in
Maximum Outer Diameter	3.5
Sleeve Diameter	100 mm
Top/Bottom Cover Plate	61 mm
Installation Diameter	120 mm

Pressure p	bar	3	4	5	6	7	8	Vol. V[I]
Height H [mm]	150	0.9	1.16	1.44	1.71	2	2.29	0.72
	130	1.05	1.43	1.8	2.19	2.57	2.95	0.64
	110	1.08	1.49	1.89	2.31	2.73	3.16	0.55
	90	1.11	1.52	1.93	2.36	2.79	3.22	0.46
	70	1.27	1.68	2.1	2.47	2.88	3.32	0.37

Cross Reference Number

Firestone Part Number W023583002
Firestone Part Number W02-358-3002
Firestone Part Number W02 358 3002
Firestone Part Number WO23583002
Firestone Part Number WO2-358-3002
Firestone Part Number WO2 358 3002
Contitech Part Number SZ 37-10 P02
Contitech Part Number SZ37-10 P02
Contitech Part Number SZ 37-10 P02 1/8 NPT X2

Style 2M1A Firestone Air Spring
W02-358-3002 1/8NPT,each end,plastic studs (Two Ply Bellows)
W02-358-3004 1/8NPT,each end,brass studs (Two Ply Bellows)

Advantages

100% Brand New
Durable and long service life.
Direct replacement for your old or broken one, easy installation.
Built to meet standard specification, strictly follow factory quality control.
Due to the light and screen difference, the item's color may be slightly different from the pictures.

FAQ

Q1: How to order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, you can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.

Q2: After-sales service?
A: One year warranty for all kinds of products. If you have any questions after receiving the goods, please feel free to contact me, as an experienced manufacturer, you can rest assured of the quality and after-sales service.

Q3: What is your warranty term?
A: There is a 12months warranty for our export products has run out from the date of the shipment.

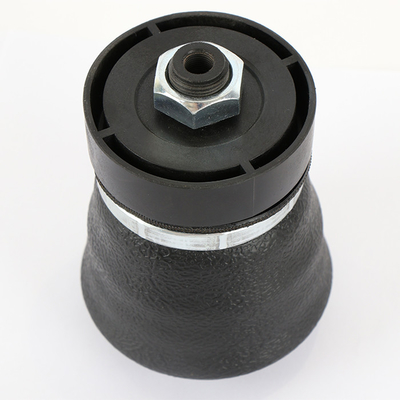

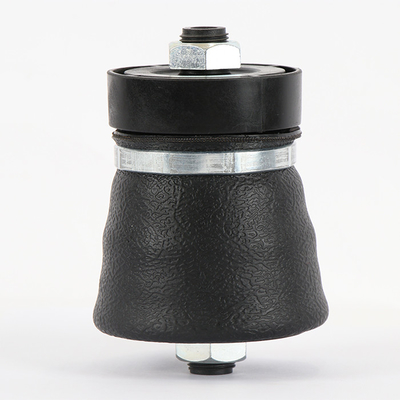

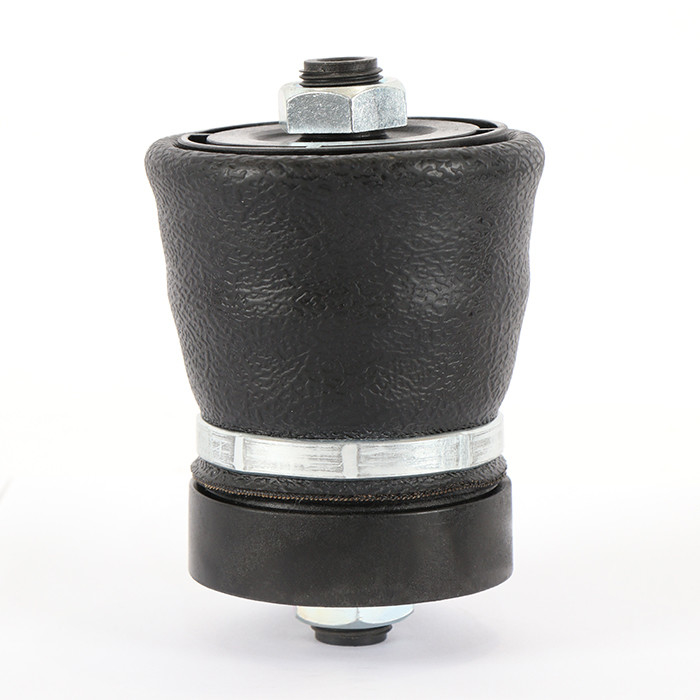

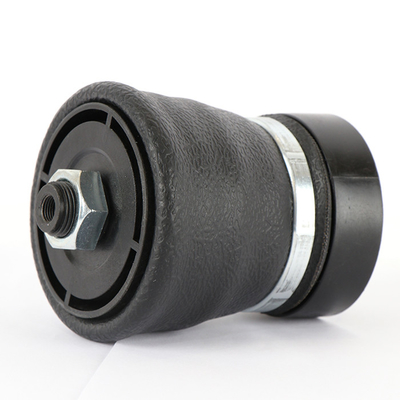

W02-358-3002 Firestone Industrial Air Spring Real Picture
Contitech SZ 37-10 P02 Air Suspension Spring With G 1/8 Air Inlet Air Actuator 0

Contitech SZ 37-10 P02 Air Suspension Spring With G 1/8 Air Inlet Air Actuator 1
