Pirelli Torpress 89023 Industrial Air Spring Actuator MIN. H. 45MM Air Shocks

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1H5081

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	Negotiable
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Brand:	GUOMAT	OEM NO.:	1H5081
Cross References:	GART ARI.275	Compressed Height:	45 MM
Extended Height:	145 MM	Total Stroke Height:	100 MM
Product Name:	Air Spring/Air Suspension	Structure:	Single Convoluted
Highlight:	89023 Industrial Air Spring , Pirelli Torpress Industrial Air Spring

Pirelli Torpress 89023 Industrial Air Spring Actuator MIN. H. 45MM Air Shocks

Product Description

The GUOMAT Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance. We offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convoluted Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.

Product Specifications

Connection	F1
Maximum Diameter	210 mm
Maximum Height	145 mm
Minimum Height	45 mm
Connecting bolts or holes	6 N.
Connecting bolts or holes	M8×1.25
Thread Air tion Hole	No

1B Style Industrial Air Bellow

Model NO.	OEM Number
1B4060	Contitech : FS 40-6 1/8 M8 Phoenix : SP1B04 Weforma : WBE100-E1
1B7070	Contitech : FS 70-7 Phoenix : SP 1 B 05 Bosch : 822419002 Festo : EB-165-65 Weforma : WBE 200-E1
1B5010	Firestone : W01-358-7731
1B5010P01	Firestone : W01-358-7731
1B1209	Firestone : W01-M58-6165 Contitech : FS120-9 Dunlop(FR) : 8"x1 S08101 Bosch : 822419003 Festo : EB-215-80 Norgren : PM/31081,(8x1) Weforma : WBE300-E1 Airtech : 140293 Megatech : 1S12
1B8X4	Firestone : W01-358-7564 Goodyear : 1B8-550 Contitech : FS120-10
1B8580	Firestone : W01-358-7598 Goodyear : 1B8-580
1B6910	Firestone : W01-M58-6374 Contitech : FS200-10 Phoenix : SP1B12 Dunlop(FR) : 9"1/4x110 S091 Bosch : 822419004 Festo : EB-250-85 Norgren : PM/31091(81/4x1)
1B9202	Goodyear : 1B9-202 : 578 91 3 201
1B5330	Firestone : W01-358-7008 Contitech : FS330-11474 Goodyear : 1B12-300 Goodyear : 1B12-313
1B53014	Firestone :Style 113 Firestone: W01-358-7103 FleetPride: AS7103 Goodyear: 1B14-350 Goodyear Flex No: 578913351 Taurus :6326

Supports and Services

GUOMAT manufactures efficient, strong, and premium 1H5081 air springs for all your vehicle steering needs. Not only is it efficient in performance, it is also extremely durable, providing long-lasting quality without compromising its effectiveness.
These 1H5081 air springs are made of high-quality materials, including metal, which ensures maximum stability, durability, and sustainability for demanding use, and is also equipped with the latest features for consistent, optimal performance. These products are certified and tested by regulatory boards to ensure safe use and superior quality.
When purchasing our products, you can also enjoy a host of after-sales services, including low-cost maintenance, installation guidance, and more. The GUOMAT air springs here are environmentally friendly, with features such as anti-corrosion and anti-rust, and have a longer service life.

FAQ

Q: What is the model number of the Suspension Air Springs?
A: The model number of the Suspension Air Springs is 1H5081

Q: What are the packaging details for the Suspension Air Springs?
A: The Suspension Air Springs are packaged in strong carton boxes or as per the customers' requirements.

Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.

Q: What is your advantage?
A: (1) High quality - Natural rubber.
(2) Fast delivery - Stock sales.
(3) Best service - 24 hours online.

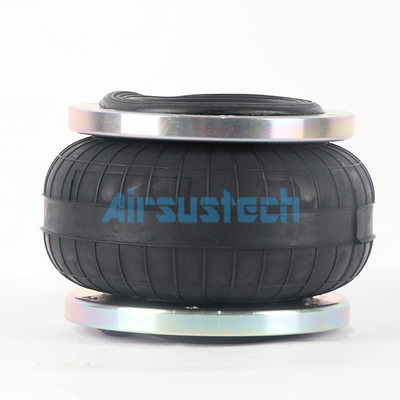

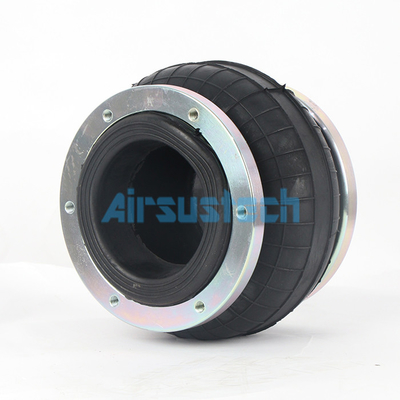

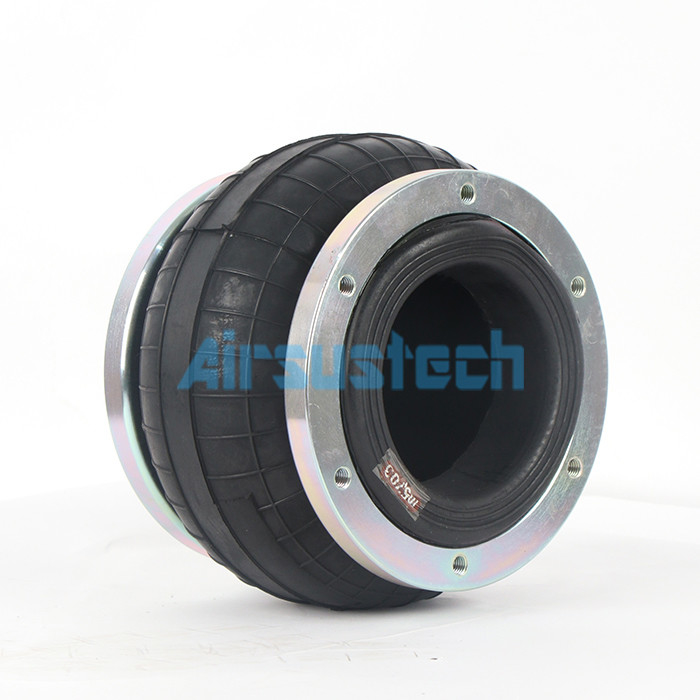

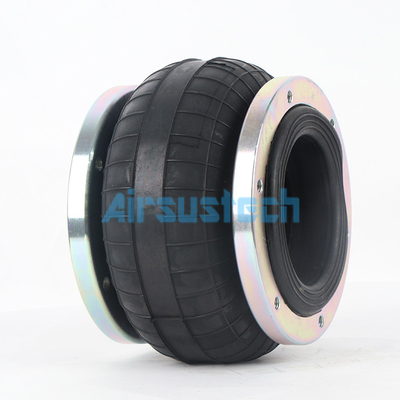

Real Pictures of 1H5081

Pirelli Torpress 89023 Industrial Air Spring Actuator MIN. H. 45MM Air Shocks 0
