W01-358-7727 Firestone Industrial Bellows Actuator Style 126 Flange Connection

W01-358-7727 Firestone Industrial Bellows Actuator Style 126 Flange Connection

Flange Ring Air Spring Introduction

The flange air spring has high reliability and durability. It is made of high-strength rubber and metal materials, and has good wear resistance and corrosion resistance. This enables the flange air spring to withstand greater pressure and load and have a longer service life. In addition, the flange air spring can also be monitored and adjusted in real time through an automatic control system to ensure its normal operation and safety performance.

1H1710-12 Air Spring Technical Datas

Bottom Plate Alignment: Parallel
Bottom Plate Center To Center Diameter: 19 inches
Bottom Plate Diameter: 20.36 inches
Bottom Plate Hole Quantity: 24(3/8-24) bolts
Bottom Plate Type: Steel

Top Plate Alignment: Parallel
Top Plate Center To Center Diameter: 19 inches
Top Plate Diameter: 20.36 inches
Top Plate Hole Quantity: 24(3/8-24) bolts
Top Plate Type: Steel

Expanded Height: 6 inches
Compressed Height: 2 inches
Spring Type: Single Convoluted
Nut/Blind Nuts Type: 24(3/8-24) bolts
Max Rubber Bellow Diameter: 22.4 inches
Type: Gas-filled

OEM Cross References

Product Application

• Gate Valve Operator
• Glue Coating Machine
• Web Tightening Tool
• Stripper
• Tool Spring Driver
• Quenching Drain Driver
• Paper Mill
• Pickling Tank Driver

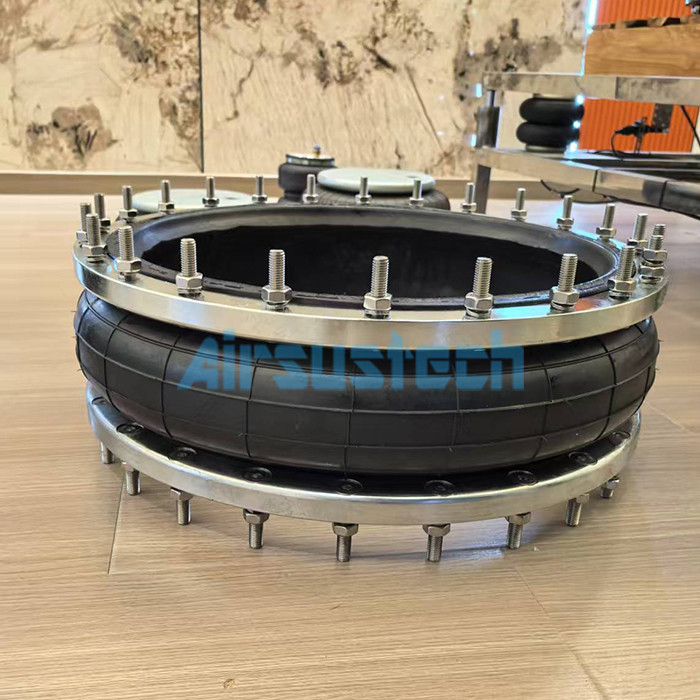

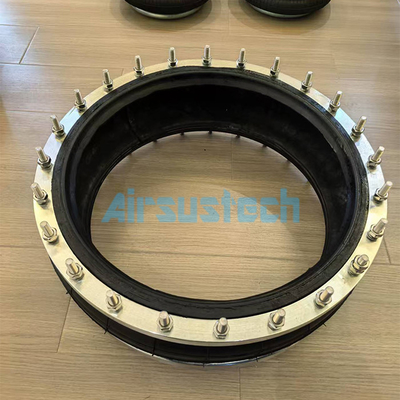

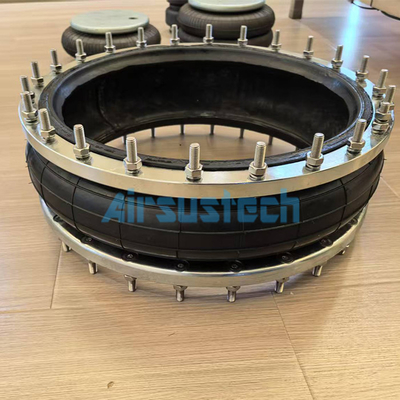

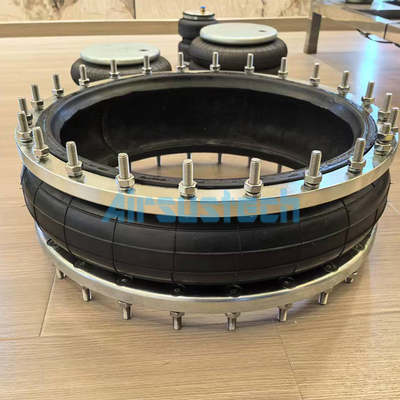

The Real Pictures
