166mm Height Rubber Air Spring M10 Double Convoluted Air Balloon For Rotary Shaft Actuators

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2H160166P

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Condition:	Brand-New	Sample:	Available
Function:	Reduce Shock	Trademark:	GUOMAT
Type:	Gas-Filled	Material:	Stainless Steel + Rubber
Convolutions:	2	Stroke:	108mm
Highlight:	166mm Height Air Spring , Double Convoluted Air Spring , Rotary Shaft Actuators Air Spring

166mm Height Rubber Air Spring M10 Double Convoluted Air Balloon For Rotary Shaft Actuators

Product Introduction
GUOMAT Number: 2H160166P
Warranty: 1 Year
Product Name: Industrial Air Spring
Convolutions: 2
Connection Method: Flange Connection
Material: Rubber and Stainless Steel
Sample: Yes
Delivery Time: 2-8 Working Days
Type: Gas-Filled

Technical Data
Nominal diameter: 100mm
Minimum compression: 82mm
Safe extension: 190mm
Full stroke: 108mm
Maximum outer diameter (0.7Mpa): 175mm
Natural height: 166mm
Cover width: 160mm
Center distance between threaded holes: 135mm

Bearing Capacity	Inflation Pressure		0.2Mpa	0.3Mpa	0.4Mpa	0.5Mpa	0.6Mpa	0.7Mpa	0.8Mpa	0.7Mpa Volume (dm³)
	Installation Height		0.2Mpa	0.3Mpa	0.4Mpa	0.5Mpa	0.6Mpa	0.7Mpa	0.8Mpa	0.7Mpa Volume (dm³)
	82	(mm)	364	538	713	892	1071	1251	1430	0.86
	116	(mm)	262	397	537	674	815	950	1095	1.27
	150	(mm)	190	290	391	490	597	700	802	1.64
	166	(mm)	149	237	325	413	502	593	684	1.77
	190	(mm)	76	128	180	233	287	342	398	1.95
	201	(mm)	23	55	83	111	148	183	220	1.95
Stiffness and frequency at design height	Vertical Stiffness	(Kg/cm)	39	54	72	89	107	125	138
	Natural frequency	Hz	2.56	2.40	2.35	2.33	2.31	2.30	2.25
	Natural frequency	cpm	154	144	141	140	139	138	135

Air Spring for Rotary Shaft Actuators
Air springs can be effectively integrated into rotary shaft actuators to enhance performance, reduce vibration, and improve precision in rotational motion systems.
(1) Vibration Damping & Shock Absorption
Problem: Rotary actuators (e.g., in robotics, valve control, or industrial automation) often experience torsional vibrations or sudden load changes, leading to mechanical wear or positioning errors.
Solution: Air springs mounted axially or radially absorb high-frequency vibrations and dampen shock loads (e.g., sudden stops/reversals).

(2) Torque Assistance & Load Compensation
Problem: Heavy rotary loads (e.g., large valves, crane slewing rings) require high torque, straining actuators.
Solution: Air springs pre-loaded in the rotation direction offset static loads, reducing actuator power demand.

(3) Backlash Elimination
Problem: Gear trains or linkages in rotary systems introduce backlash, reducing precision.
Solution: An air spring applies constant radial pressure to bearings or gears, maintaining contact and minimizing play.

(4) Misalignment Compensation
Problem: Shaft misalignment due to thermal expansion or mounting errors causes binding.
Solution: Laterally compliant air springs allow slight radial/axial float while maintaining torque transmission.
Example: Paper mill rollers with air-spring-coupled shafts tolerate thermal drift without buckling.

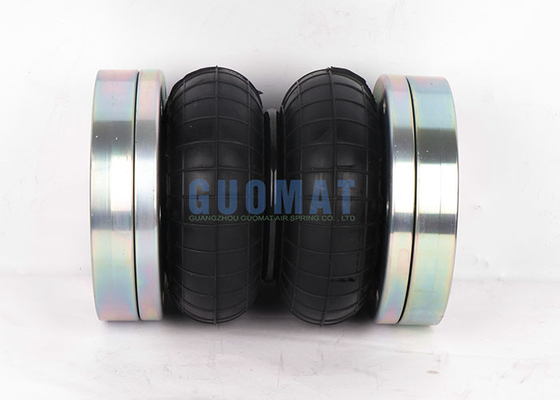

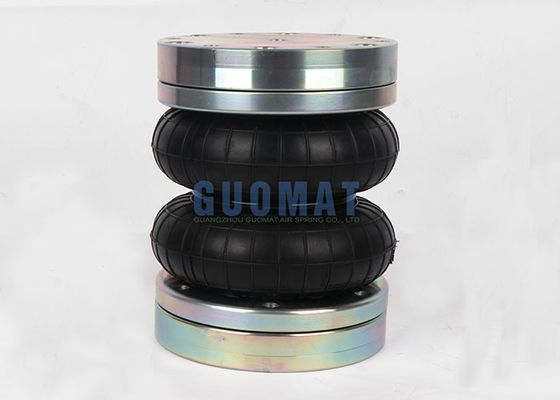

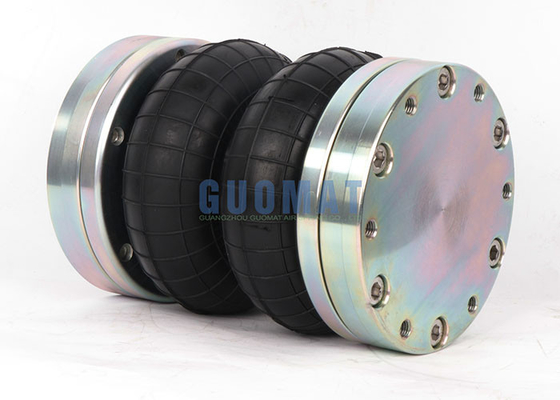

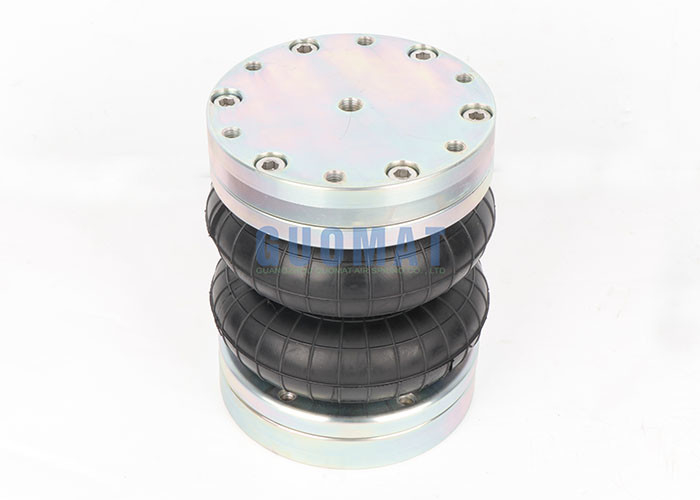

Product Image
166mm Height Rubber Air Spring M10 Double Convoluted Air Balloon For Rotary Shaft Actuators 0
