Rubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration Isolation

Rubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration Isolation

  • Rubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration Isolation
  • Rubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration Isolation
  • Rubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration Isolation
  • Rubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration Isolation
Rubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration Isolation
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B7400
Payment & Shipping Terms:
Minimum Order Quantity: 6PCS
Price: $59.9-69.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber+Steel Warranty: 12 Months
Quality: 100% Tested Convolutions: Double Convoluted
Interface Type: Threaded Interface Temperature Range: -40℃~+70℃
Contitech: FD 330-22 313 Firestone: W01-358-7400
Highlight:

FD 330-22 Air Spring

,

Contitech Air Spring

,

Rubber Pneumatic Air Spring

Rubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration Isolation



Product Information



Brand: GUOMAT

GUOMAT number: 2B7400

Article status: Normal

Warranty: 12 Months

Color: Black

Other Name: Air Spring,Air Bags



2B7400 Cross Reference Numbers

Firestone Number: W01-358-7400 / W01 358 7400 / W013587400

Firestone Number: WO1-358-7400 / WO1 358 7400 / WO13587400

Firestone Style Number: 22

FleetPrice Number:  AS7400

Goodyear Number: 2B12-309 / 2B 12-309

Goodyear Flex Number: 578923309 / 578 92 3 309 / 578-92-3-309

Taurus Number: 6316

Triangle Number: AS-4313

Vibracoustic Number: V SP 2 B 22 R-7400 / VSP2B22R-7400

TRP Number: AS74000

Automann Number: SP2B22R-7400 / SP 2 B 22 R-7400

Road Choice Number: AS7400



OE Manufacturer/Part NO.

Manufacturer Original Part No.
Fab Tek 04-0080
Dayton 354-7400
Chevrolet 693230
Taurus AS214-7400
SAF Holland 90557016
Ridewell 1003587400C
R&S Truck 1027519
Navistar/Fleetrite 554788C1
Loadguard SC2020
Hendrickson S-1013
GMC 693230
Watson & Chalin AS-0003
Granning 2726
Tuthill 2726
SAF Holland 90557018
Volvo 3130488
Scania 670199
Brake & Wheel M3506
Freightliner 16-10796-000
HDA PMABG-740



Contitech FD 330-22 313 Air Suspension Technical Data


Top Cover Plate Diameter:Ø9.00

Bottom Cover Plate Diameter:Ø9.00

Air Inlet :1/4-18NTPF

Screw Center Distance Of Top Cover Plate:6.20

Screw Center Distance Of Bottom Cover Plate:6.20

Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC

Rubber Bellow Rubber Bellow MAX Diameter:Ø12.80

Max.Height: 12.50

Min.Height: 4.10

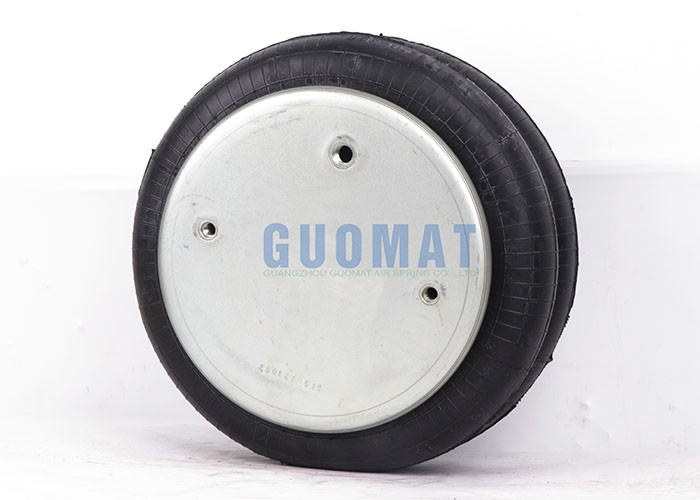

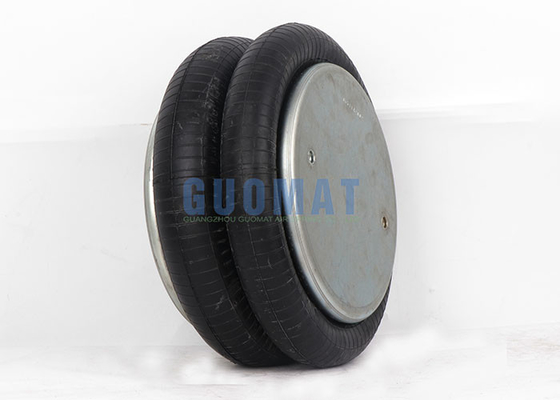

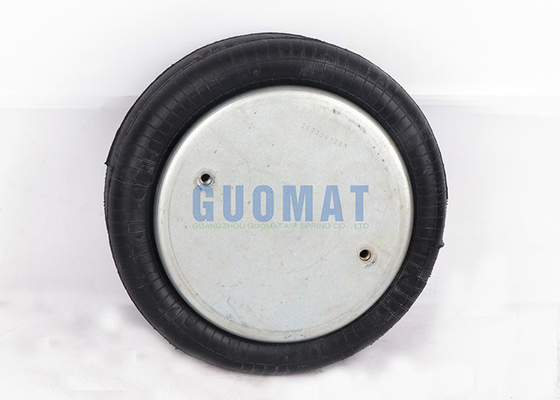

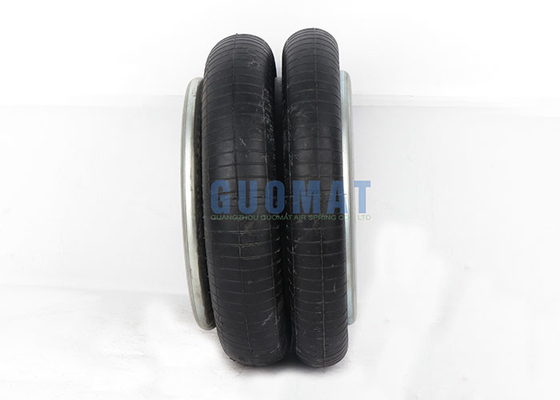

Product Image

Rubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration Isolation 0Rubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration Isolation 1
