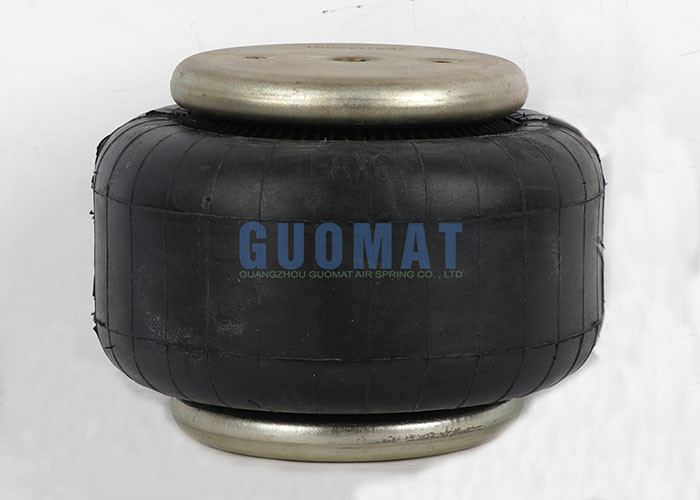

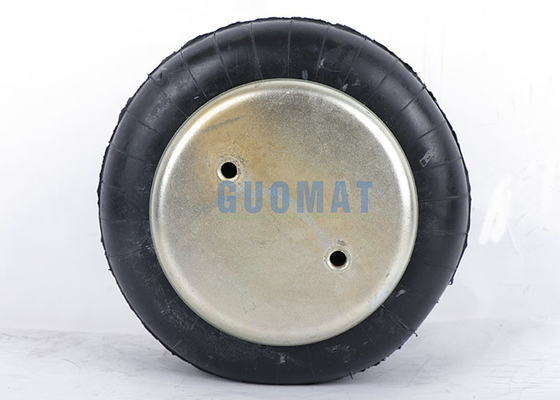

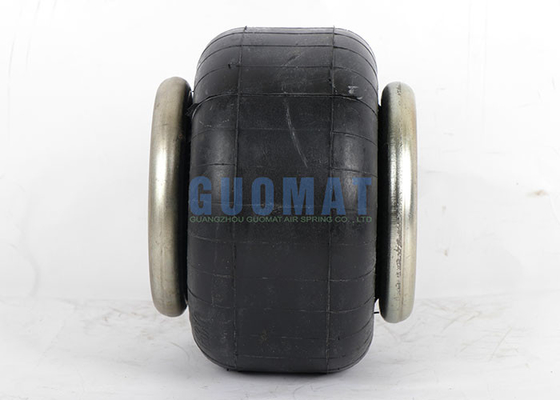

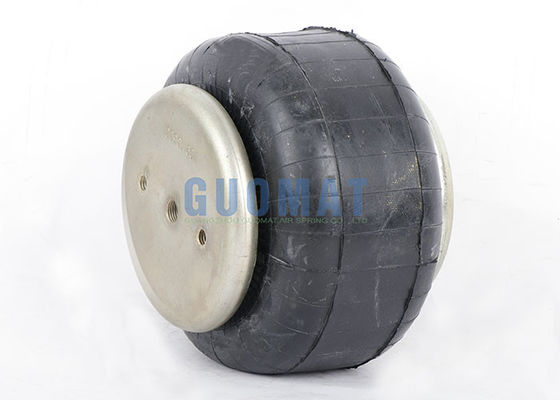

1B8X6 Single Convoluted Air Spring Ball W01-358-7598 Firestone Rubber Air Bellows

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B8X6

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Item Name:	Suspension Spring, Single Convoluted Airbags	Warranty:	1 Year
Material:	Rubber + Steel	Packing:	Brown Carton
Goodyear:	1B8-580	Firestone:	W01-358-7598
Working Stroke:	120mm	Color:	Black
Highlight:	W01-358-7598 Single Convoluted Air Spring , 1B8X6 Single Convoluted Air Spring , Firestone Rubber Air Bellows

1B8X6 Single Convoluted Air Spring Ball W01-358-7598 Firestone Rubber Air Bellows

Product Information

Manufacturer: GUOMAT

Manufacturer Part Number: 1B8X6

Size and Quality: OEM Standard

Benefits: Air suspension struts improve ride comfort by more efficiently absorbing shock and decreasing vibration. They also make it easier to alter ride height and stiffness to suit varying loads, driving preferences, and road conditions.
Purchase with Confidence: we Provide 1 year warranty,we provide a large range of car accessory categories.

Can replace Firestone W01-358-7598 / WO1-358-7598

Can replace Firestone W013587598 / WO13587598

Can replace Firestone W01 358 7598 / WO1 358 7598

Can replace Firestone 116-1

Can replace Goodyear 1B8-580

Can replace Goodyear 1B 8-580

Air Spring Technical Data

Temperature Range【MIN】: -40℃

Temperature Range【MAX】: 70℃

Bellows O.D.【MAX】:240mm

Convoluted:Single

Air Inlet Type:NPT

Air Inlet :1/4-18NPT

Top Cover Plate Diameter:135mm

Bottom Cover Plate Diameter:135mm

Screw Center Distance of Top Cover Plate:70mm

Screw Center Distance of Bottom Cover Plate:70mm

Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC

Bottom Cover Plate Screw(Nut) Tooth:2X3/8-16UNC

The Working Stroke:120mm

Natural Height: 157mm

Max.Height: 180mm

Min.Height: 60mm

W01-358-7598 Force Table

Assembly Height (in.)	Volume@100PSIG(in³)	Pounds Force
Assembly Height (in.)	Volume@100PSIG(in³)	@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
6.0	237	360	750	1150	1580	2090
5.0	210	540	1100	1650	2240	2920
4.0	178	650	1330	2000	2710	3490
3.0	139	710	1450	2200	2980	3810
