262mm Design Height Flange Connection Air Suspension Spring For Vibratory Conveyors

262mm Design Height Flange Connection Air Suspension Spring For Vibratory Conveyors

  • 262mm Design Height Flange Connection Air Suspension Spring For Vibratory Conveyors
  • 262mm Design Height Flange Connection Air Suspension Spring For Vibratory Conveyors
  • 262mm Design Height Flange Connection Air Suspension Spring For Vibratory Conveyors
  • 262mm Design Height Flange Connection Air Suspension Spring For Vibratory Conveyors
262mm Design Height Flange Connection Air Suspension Spring For Vibratory Conveyors
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2H630262
Payment & Shipping Terms:
Minimum Order Quantity: 6PCS
Price: $199.9-399.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Product Name: Air Spring, Airbags, Air Suspension Spring Material: Rubber + Steel
Warranty: 12 Months Operation: Gas-filled
Quality: 100% Tested Application: Vibratory Conveyors Machine
Weight: 20kg Stroke: 210mm
Highlight:

Flange Connection Air Suspension Spring

,

262mm Air Suspension Spring

,

Vibratory Conveyors Air Suspension Spring

262mm Design Height Flange Connection Air Suspension Spring For Vibratory Conveyors



Flange Air Spring

A flange air spring is a type of air spring (pneumatic suspension component) that incorporates flanges for mounting and sealing purposes. These flanges allow for secure attachment to other structures, such as vehicle chassis, industrial machinery, or vibration isolation systems.



Brand: GUOMAT

Part number: 2H630262

Product name: Air Spring

Nominal diameter: 530mm
Minimum compression: 90mm
Safe extension: 300mm
Full stroke: 210mm
Natural height: 262mm
Maximum outer diameter: 660mm
Cover plate diameter: 610mm
Thread specification: M10
Number of threads: 30pcs
Center distance between threads: 560mm



Bearing Capacity Inflation Pressure 0.2Mpa 0.3Mpa 0.4Mpa 0.5Mpa 0.6Mpa
Installation Height
90   6241 9433 12534 15691 18710
140 (mm) 5559 8501 11190 14061 16950
190 (mm) 5104 7636 10184 12766 15298
240 (mm) 4710 6953 9024 11775 14224
262 (mm) 4371 6545 8820 10585 13410
290 (mm) 3910 5941 7974 9943 12184
300 (mm) 3810 5693 7675 9543 11742
340 (mm) 2812 4277 5901 7451 9190
Stiffness and frequency at design height Vertical Stiffness (Kg/cm) 493 732 919 1081 1234
Natural frequency Hz 1.68 1.67 1.61 1.6 1.52
cpm 101 100 97 96 91



Bearing Capacity Inflation Pressure 0.7Mpa 0.8Mpa

0.7Mpa

Volume(dm3)
Installation Height
90 (mm) 22277 25476 23.62
140 (mm) 20134 23184 37.74
190 (mm) 18222 20924 49.2
240 (mm) 16680 19253 59
262 (mm) 15801 17907 63
290 (mm) 14357 16470 67.91
300 (mm) 13776 15030 69.41
340 (mm) 10934 12745 73.12
Stiffness and frequency at design height Vertical Stiffness (Kg/cm) 1381 1539
Natural frequency Hz 1.48 1.47
cpm 89 88



Every standard air spring consists of 4 layers.

•The inner layer which actually contains the air.

•The first layer of fabric reinforced rubber applied

at a specific angle.

•The second layer of fabric reinforced rubber which

is laid to a specific angle to the first layer.

•The cover to protect the bias fabric plies.



Product Image

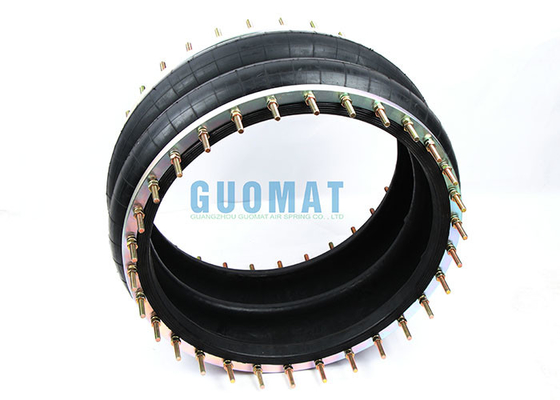

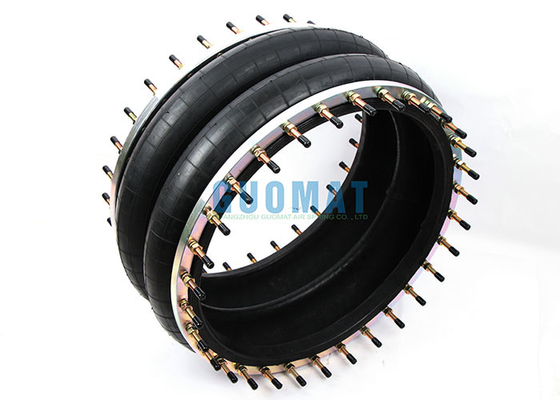

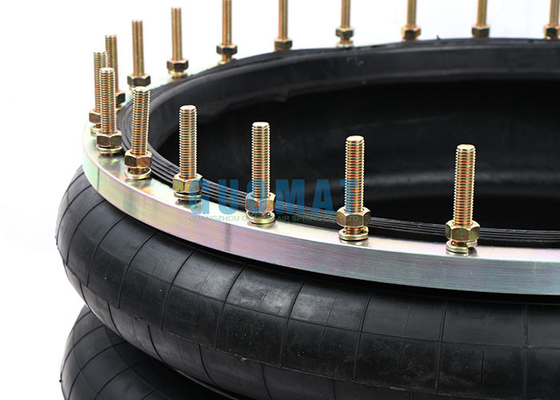

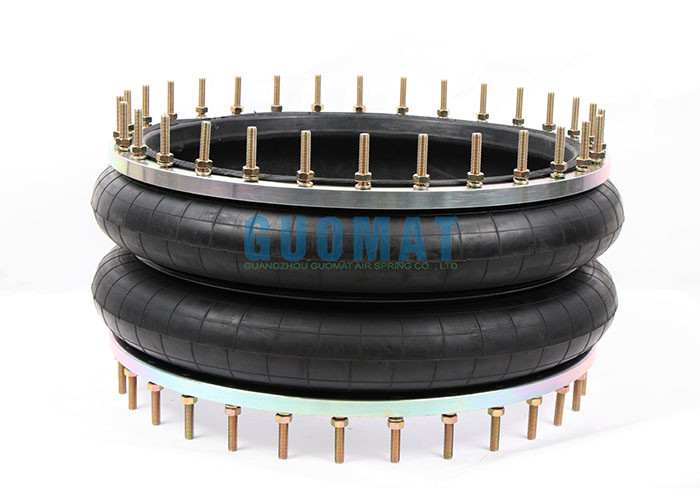

262mm Design Height Flange Connection Air Suspension Spring For Vibratory Conveyors 0262mm Design Height Flange Connection Air Suspension Spring For Vibratory Conveyors 1
