Rubber Air Bellows Navigator WBE 200-E1 Weforma Crimped Convoluted Air Springs

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B7070

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Air Spring/Airbag/Air Suspension	Warranty:	1 Year
Material:	Rubber + Steel	Packing:	Brown Carton
Contitech:	FS70-7	Phoenix:	SP 1 B 05
Festo:	EB-165-65	Air Hole:	G1/4

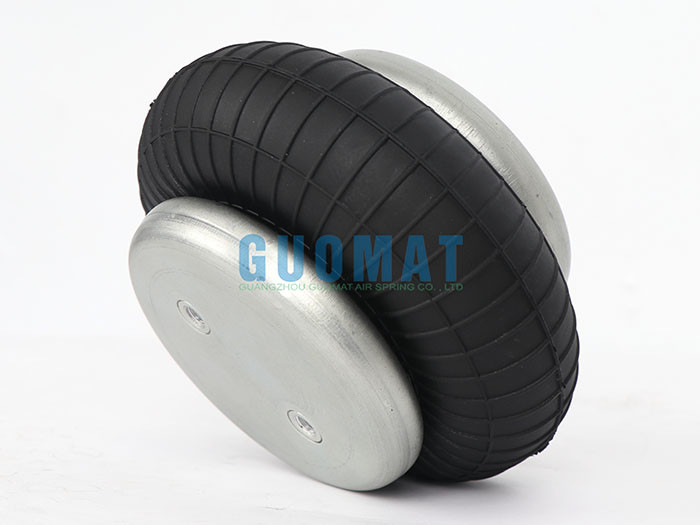

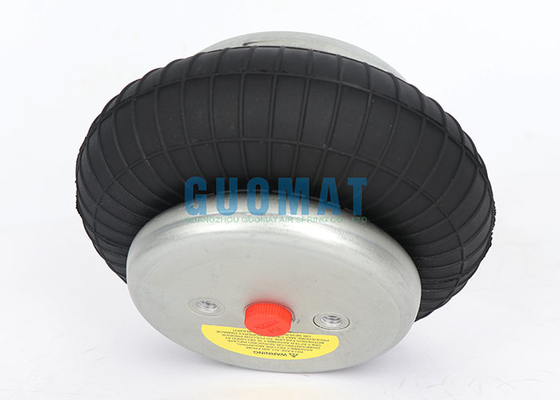

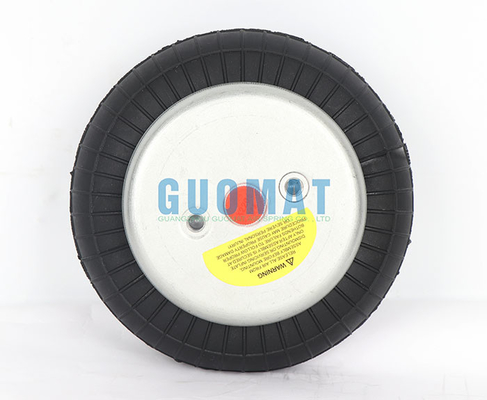

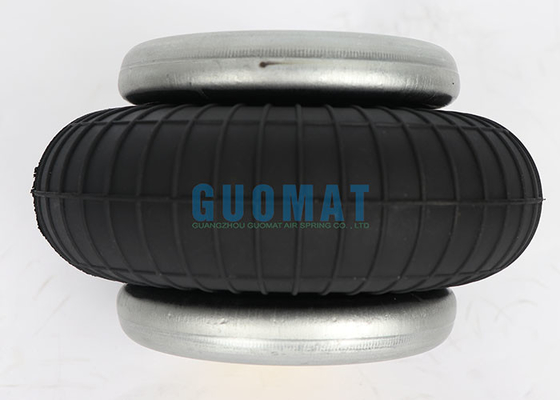

Rubber Air Bellows Navigator WBE 200-E1 Weforma Crimped Convoluted Air Springs

Product Details

GUOMAT NO.: 1B7070

Name: Single Convoluted Industrial air spring

Warranty: 1 Year

Material: Rubber bellows and steel cover plate

Certification: ISO/TS16949:2009

Packing: Brown arton with (air spring), packed according to customer's requirements

Scope of application: Shock absorption of industrial equipment

Payment: T/T,PayPal,Western Union

Shipment: Ship by air,by sea,by truck or by express

1B7070 Rubber Air Bellows Technical Data

Top cover plate diameter: 105mm
Air hole: G1/4
Threaded hole of top cover plate: 2XM8X1.25
Center distance between threaded holes: 44.5mm
Center distance from threaded hole to air hole: 22.25mm
Bottom cover plate diameter: 105mm
Threaded hole of bottom cover plate: 2XM8X1.25
Center distance between threaded holes: 44.5mm
Natural outer diameter: 150mm
Maximum outer diameter: 165mm
Minimum compression height: 50mm
Maximum height: 115mm
Stroke: 65mm

GUOMAT 1B7070 can Replace The Following Manufacturer Numbers

ContiTech FS70-7

ContiTech FS 70-7

ContiTech FS70-7 CI

ContiTech FS 70-7 CI

ContiTech FS70-7 CI G1/4

ContiTech FS 70-7 CI G1/4

Phoenix SP1B05

Phoenix SP 1 B 05

Bosh 822419002

Festo EB-165-65

Weforma WBE 200- E1

Weforna Air Spring

WBE 200

WBE 200-E1 G1/4

WBE 200-E3 1/4NPT

Vibration isolation - dynamic characteristic values

Design height

Recommended 90mm,minimum 70mm

Pressure	bar	3	4	5	6	7	8	Vol V (I)
Force(Load)	KN	2.7	3.7	4.7	5.7	6.6	7.7	0.9
Spring Rate C	N/cm	1040	1270	1530	1770	2060	2325
Natural Frequenz f0	Hz	3.1	2.9	2.9	2.8	2.8	2.7

Pneumatic application - static characteristic values

Force F (kN)

Pressure P	bar	3	4	5	6	7	8	Vol V (I)
Height H (mm)	100	2.2	3.1	4.0	4.8	5.7	6.6	1.0
	90	2.7	3.6	4.6	5.6	6.5	7.5	0.9
	80	3.1	4.1	5.1	6.2	7.3	8.3	0.8
	70	3.4	4.5	5.6	6.7	7.9	9.0	0.7
	60	3.6	4.8	6.0	7.2	8.4	9.5	0.6
