Convoluted Type Air Spring 1/4NPTF Plate Industrial Rubber Bellows 55mm-160mm
Product Information
Product Name: GUOMAT Single Convoluted Air Spring
Brand: GUOMAT
Warranty: 1 Year
Material: Rubber and Steel
Function: Reduce Vibration
Application: Industrial Machine
MOQ: 5pcs
Weight: 5.5KG
Packing Size: 38*38*22(cm), 3pieces in Box
Technical Date
Cover Plate
Top Cover Plate Diameter: 231mm
Screw Center Distance of Top Cover Plate: 157.5 mm
Bottom Cover Plate Diameter: 231 mm
Screw Center Distance of Bottom Cover Plate: 157.5mm
Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth: 3×3/8-16UNC
Bottom Cover Plate Screw(Nut) Tooth: 4×3/8-16UNC
Gas Hole/Air Inlet/Air Fitting
Air Hole: 1/4NPTF
Rubber Bellow
Rubber Bellow Max. Dia.: 325 mm
Max. Height: 160mm
Min.Height: 55mm
Stroke: 105mm
Application
| Transfer Station |
| Bark Peeling Machine |
| Scissors-type Lifting Table |
| Pneumatic Ram Weight Compensation |
| Loading and Transfer Stations |
| Measuring Devices |
| Vibrating Screens,vibration Conveyors |
| Reciprocating Engines |
| Washing Machine |
How to Buy from Us: A Simple Step-by-Step Guide
Welcome to GUOMAT! We are very happy to help you find the perfect product. Whether you are an individual buyer or a corporate customer, our process is designed to ensure seamless and secure. Here is how your order is placed:
Step 1: Confirm product specifications and drawings
To ensure your product meets your exact requirements, please provide the air spring model/OEM number and size, and we will provide the relevant drawings to you for confirmation.
Step 2: After confirming the model and size, please let us know the quantity
Step 3: Complete the quotation
Step 4: Choose the payment method
For your convenience, we accept flexible international payment methods:
Payee information: Company name, bank account, SWIFT/BIC code and bank address (provided after order confirmation).
Processing time: 1-3 business days.
Make secure and instant payments through PayPal. We will send you a payment request link.
Use our company information (shareable upon request) for fast transfers.
Important:
Full payment is required before production/shipping.
Please send your payment receipt to [your finance email] for quick verification.
Step 5: Production and Shipment
After payment confirmation
Start production: We will notify you immediately and provide an estimated completion date.
Quality Check: Each product is strictly inspected.
Shipping: We ship worldwide via [DHL/FedEx/your logistics partner] and share tracking information within 24 hours.

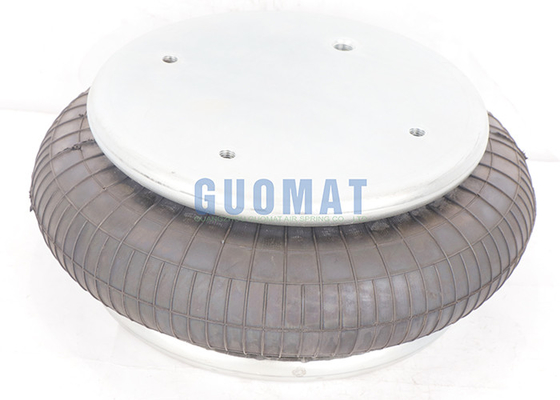

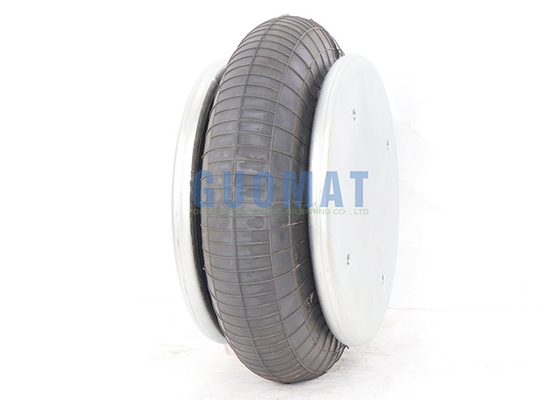

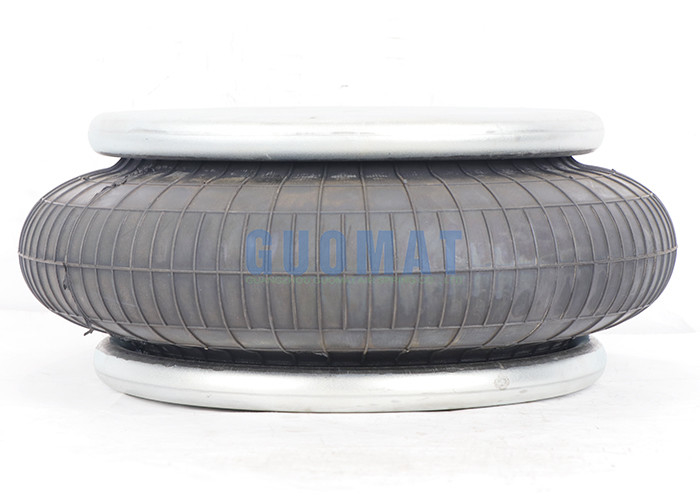

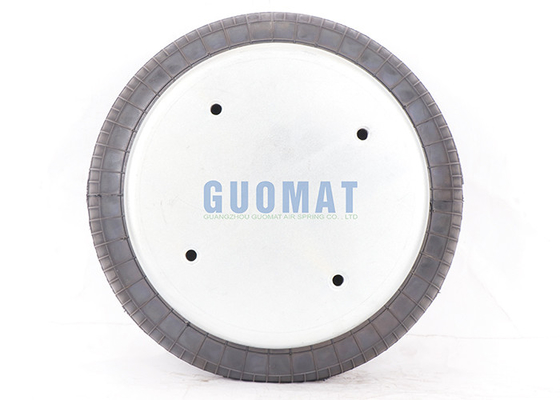

Real Picture
