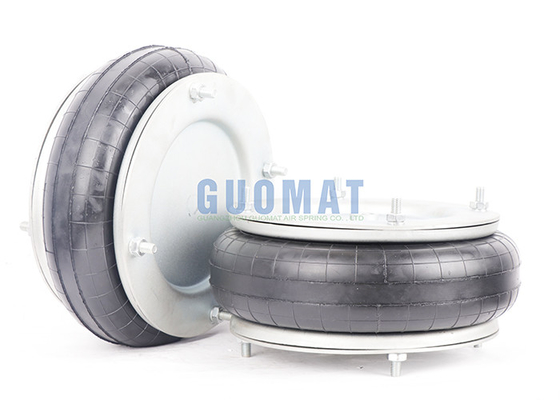

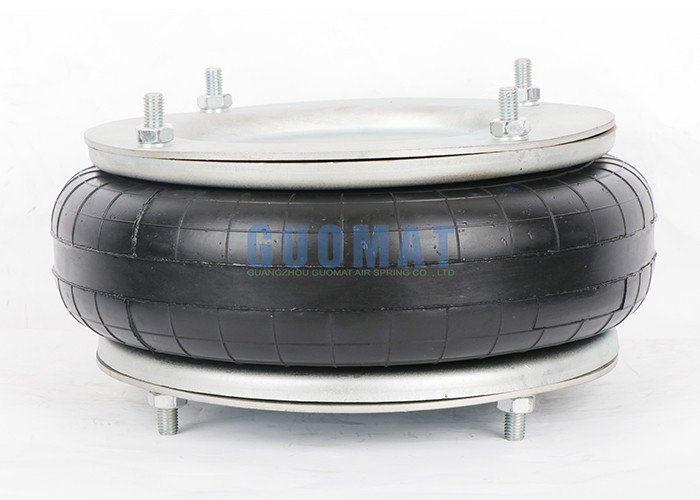

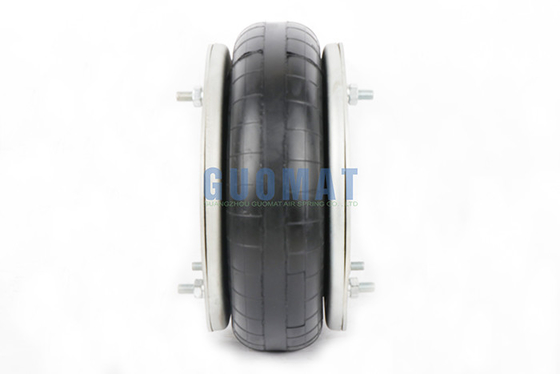

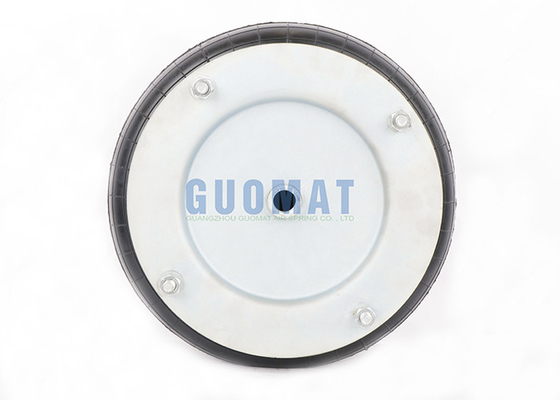

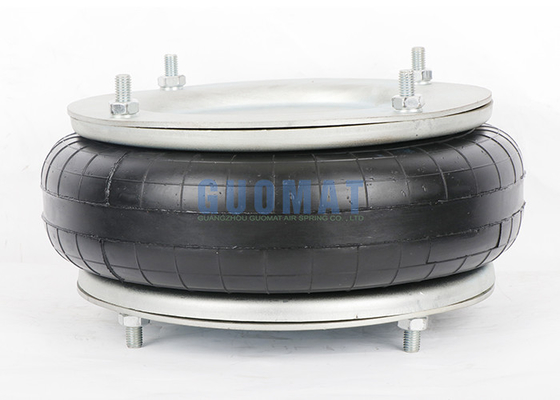

12X1 Rubber Bellows W01-R58-4060 Firestone Air Spring For Large Drying Machines

Product Details:

Place of Origin:	Germany
Brand Name:	Contitech
Certification:	ISO/TS16949, ISO9001
Model Number:	1B12X1T

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD99.9-129.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Spring Type:	Flange Air Spring	Brand:	GUOMAT
Function:	Reduce Shock	After-sales Service:	1 Year
Type:	Gas-Filled	Convolutions:	1
Material:	Rubber Bellows+Steel	Cross:	W01-R58-4060,FS 412-10 DS
Highlight:	Firestone Air Spring Rubber Bellows , Large Drying Machines Rubber Bellows , W01-R58-4060 Rubber Bellows

12X1 Rubber Bellows W01-R58-4060 Firestone Air Spring For Large Drying Machines

Product Details

Item	Industrial Air Spring	Brand	GUOMAT
Part No.	1B12x1T	Color	Black
Material	Rubber+Steel	Warranty	1 Year
Payment	L/C,T/T,Western Union	Shipment	FedEx,UPS,DHL

GUOMAT 1B12X1T can Replace the Following Manufacturer Number

GUOMAT NO.: 1B12X1T

FIRESTONE NO.: W01-R58-4060 / WO1-R58-4060

FIRESTONE NO.: W01 R58 4060 / WO1 R58 4060

FIRESTONE NO.: W01R584060 / WO1R584060

CONTITECH NO.: FS412-10

CONTITECH NO.: FS 412-10

CONTITECH NO.: FS412-10 DS

CONTITECH NO.: FS 412-10 DS

CONTITECH NO.: FS412-10 DS G1/2

CONTITECH NO.: FS 412-10 DS G1/2

CONTITECH NO.: FS412-10 DS G1/2 M10

CONTITECH NO.: FS 412-10 DS G1/2 M10

DUNLOP NO.: SP1540

DUNLOP NO.: SP 1540

DUNLOP RUBBER NO.: 12X1 / 12''X1 / 12x1

NORGREN NO.: M/31121

NORGREN NO.: M 31121

NORGREN NO.: M31121

Technical Data

Air Fitting: G1/2

The Screw Thread: M10

The Cover Plate Diameter: 260mm

The Rubber Bellows Natural Outer Diameter: 300mm

Natural Height: 130mm

Center Distance Between Two Screw Threads: 232mm

Pneumatic Application – Static Characteristic Values

Force F(kN)

Pressure P	bar	3	4	5	6	7	8	Vol.V(I)
	120	11.2	15.1	18.9	22.90	27	31.4	5.5
	100	13.9	18.5	23.4	28.1	33.1	38.3	4.6
	80	16.5	22.1	27.6	33.4	39.1	45	3.4
	60	18.5	24.8	31	37.2	43.6	50	2.2

Single Convoluted Industrial Air Spring

GUOMAT	Firestone	Dunlop	Contitech	Norgren	Parker
1B4 1/2X1 P	W01-R58-4050	SP2334	FS44-5 DI	PM/31041	9109400
1B6X1P	W01-R58-4078	SP2913	FS76-7 DI	PM/31061	9109004A
1B6X1T	W01-R58-4052	SP1536	FS76-7 DS	M/31061	9109004
1B8X1T	W01-R58-4054	SP1537	FS138-8 DS	M/31081	9109014
1B10X1T	W01-R58-4057	SP2523	FS210-10 DS	M/31101	9109024
1B12X1T	W01-R58-4060	SP1540	FS412-10 DS	M/31121	9109044
