FS 530-14 CI Replacement Airbag 1B14-350 Goodyear Single Convolution Air Actuator
Product Description
The rubber air spring is composed of a high-strength rubber airbag (reinforced by multiple layers of cords), a metal cover plate (upper and lower end plates) and an air chamber, which is filled with compressed air. The rigidity and height are changed by adjusting the internal air pressure, and the compressibility of air and the elastic deformation of rubber are used to achieve support, shock absorption and vibration isolation.
Cover Plate
Top Cover Plate Diameter : 289mm
Screw Center Distance of Top Cover Plate : 158.8mm
Bottom Cover Plate Diameter : 289mm
Screw Center Distance of bottom Cover Plate : 158.8mm |
Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth : 4x3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth : 4x3/8-16UNC |
Gas Hole/Air Inlet/Air Fitting
Gas Hole:1/4NPTF |
|
Rubber Bellow
Rubber Bellow MAX Diameter : 406mm
Maximum Height: 160mm
Minimum Height : 81mm
|
Manufacturer OEM Number
OEM Contitech Number: FS530-14
OEM Contitech Number: FS 530-14
OEM Contitech Number: FS530-14 CI
OEM Contitech Number: FS 530-14 CI
OEM Contitech Number: FS530-14 CI G1/4
OEM Contitech Number: FS 530-14 CI G1/4
OEM Contitech Number: FS530-14 CI G1/4 M8
OEM Contitech Number: FS 530-14 CI G1/4 M8
OEM Firestone Number: W01-358-7103
OEM Firestone Number: W01 358 7103
OEM Firestone Number: W013587103
OEM Goodyear Number: 1B14-350
OEM Goodyear Number: 1B 14-350
OEM Goodyear Number: 578-91-3-351
OEM Goodyear Number: 578 91 3 351
OEM Goodyear Number: 578913351
Key Points
Sealing: Check the airbag and joints regularly to prevent leakage.
Pressure control: Avoid overpressure or underpressure, which will affect performance and life.
Environmental adaptation: Special materials (such as oil-resistant and ozone-resistant rubber) are required for high temperature and corrosive environments.

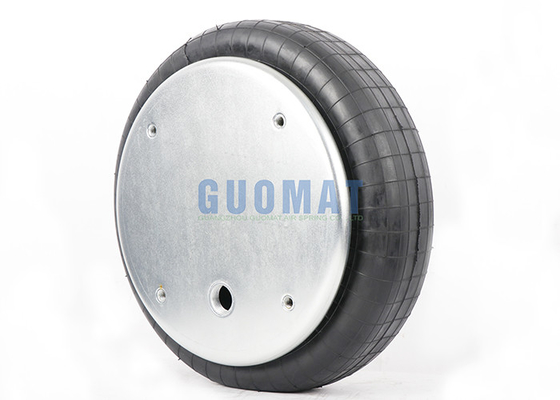

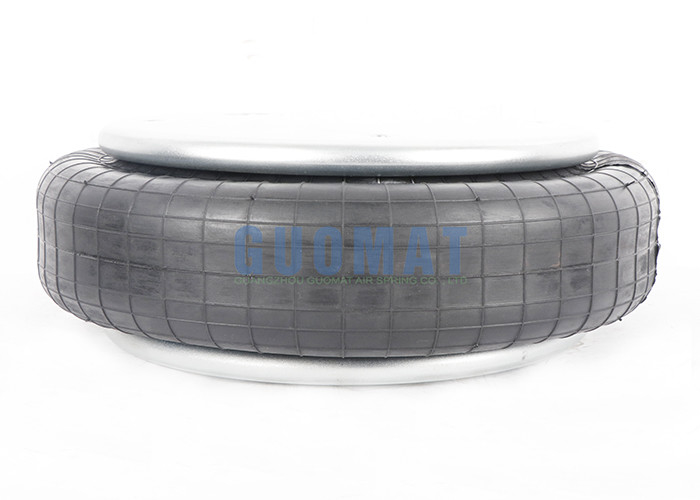

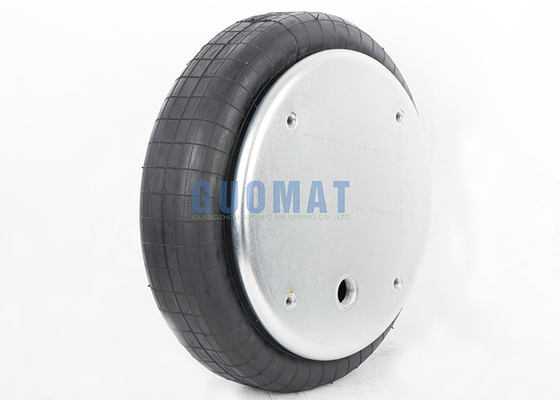

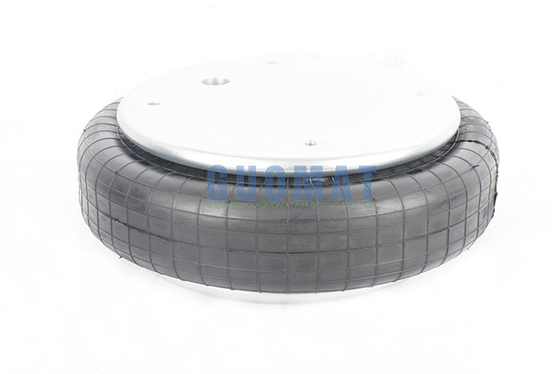

Product Picture of GUOMAT 1B53014 Air Bag
