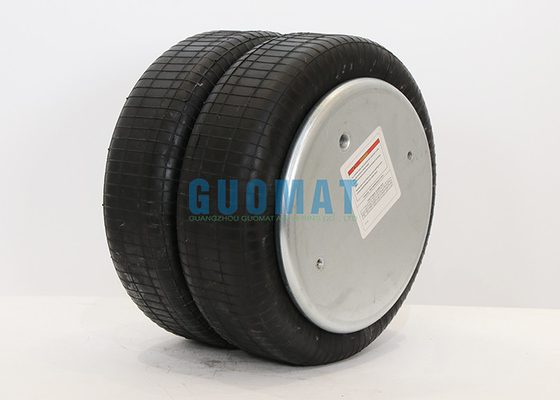

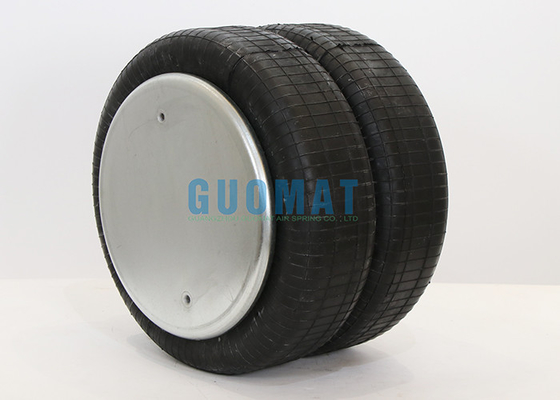

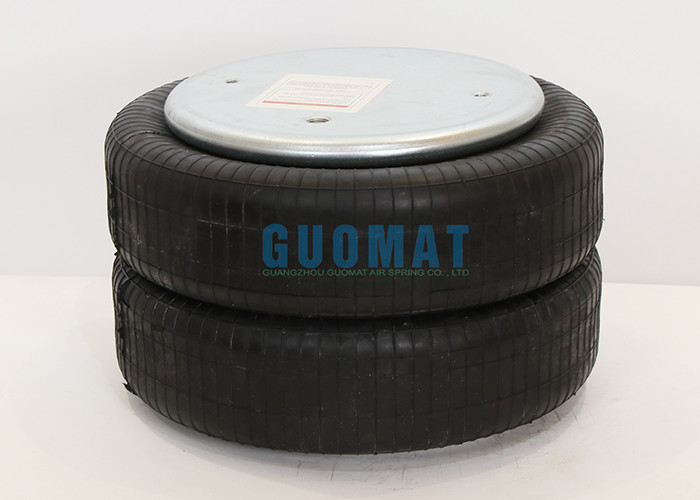

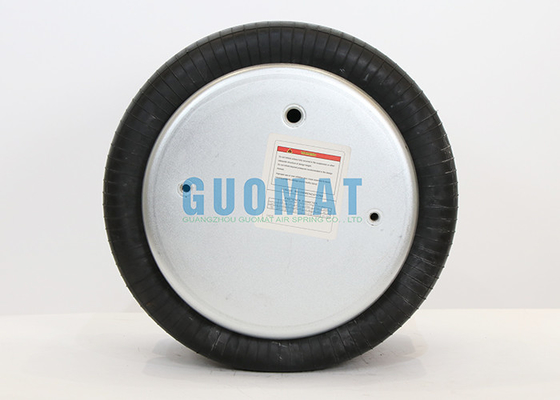

FD330-30 CI Contitech Lift Axle Air Springs W01-M58-6384 Double Convoluted Rubber Bellow

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B12-331 P06

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Item:	Industrial Air Spring	Type:	Gas-Filled
Material:	Rubber + Steel	Warranty:	1 Year
OEM:	Contitech FD330-30	Air Fitting:	G1/4
Weight:	5.1KG	Firestone:	W01-M58-6384
Highlight:	FD330-30 Lift Axle Air Springs , W01-M58-6384 Lift Axle Air Springs , Double Convoluted Lift Axle Air Springs

FD330-30 CI Contitech Lift Axle Air Springs W01-M58-6384 Double Convoluted Rubber Bellow

Specifications and Technical Data of 2B12-331 P06

The diameter of the top and bottom cover is: 226.5mm
Specification of the air hole: G1/4
Threaded hole of the top cover: 2XM8X1.25
Center distance between the threaded holes of the top cover: 157.6mm
Distance from the threaded hole of the top cover to the air hole: 73mm
Threaded hole of the bottom cover: 2XM8X1.25
Center distance between the threaded holes of the bottom cover: 157.6mm
Design height: 272mm
Minimum height: 95mm
Maximum height: 272mm
Maximum outer diameter: 325mm

2B12-331 P06 Cross Reference Numbers

Contitech FD330-30

Contitech FD 330-30

Contitech FD330-30 CI

Contitech FD 330-30 CI

Contitech FD330-30 CI 1/4

Contitech FD 330-30 CI 1/4

Contitech FD330-30 CI 1/4 M8

Contitech FD 330-30 CI 1/4 M8

Firestone W01-M58-6384

Firestone W01 M58 6384

Firestone W01M586384

Firestone WO1-M58-6384

Firestone WO1 M58 6384

Firestone WO1M586384

Firestone Style 22-1.5

Firestone W01-358-7444

Firestone W01 358 7444

Firestone W013587444

Vibracoustic VSP2B22R-3 (G1)

Vibracoustic V SP 2 B 22 R-3 (G1)

Troubleshooting Guide

Malfunction	Possible cause	Remedy
Air actuator / air spring does not move	No drive medium available	Check the connections / valves
Cracks or wear except for the reinforcing material	Mechanical or age-related wear	Replace the air actuator / air spring
Extended air actuator / air spring does not retract completely	Reset force too low	Increase the reset force

ContiTech Double Convoluted Air Spring Data Sheet

Model	Minimum Design Height	Maximum Stroke	Required Installation Space
FD 40-10 CI	70	100	160
FD 70-13 CI	72	128	180
FD 110-15 CI	72	156	215
FD 120-17 CI	75	155	230
FD 120-20 CI	77	193	235
FD 200-19 CI	75	200	265
FD 200-22 CI	77	218	265
FD 200-25 CI	77	248	275
FD 330-22 CI	75	230	340
FD 330-30 CI	77	283	355
FD 530-22 CI	77	233	400
FD 530-30 CI	77	273	415
FD 530-35 CI	77	313	420
