GUOMAT 2H230214 Flange Connection Air Suspension Spring M10 Screw Air Bellow

GUOMAT 2H230214 Flange Connection Air Suspension Spring M10 Screw Air Bellow

Product Specifications

GUOMAT: 2H230214

Product Name: Air Suspension Bag,Air Spring

Warranty: 12 Months

Material: Good Quality Rubber and Steel

Spring Type: Flange Type Air Spring

Application: For Industrial Machine,such as potato sorting plant,packaging equipment

Nominal diameter 150mm
Minimum compression: 88mm
Safe extension: 246mm
Stroke: 158mm
Design height: 214mm
Cover diameter: 223mm
Thread specification: M10
Number of threads: 8 M10 threads for top and bottom covers
Center distance between threads: 185mm

Application of flange air spring in potato sorting plant
1. Shock absorption and vibration isolation of vibrating screening equipment
Application scenario: Potato sorting line is usually equipped with vibrating screen or drum screen for grading by size. A large impact force will be generated during vibration.

Function of flange air spring:

Replace traditional metal spring or rubber shock absorber, adjust stiffness and damping by compressed air, and effectively absorb high-frequency vibration.

Reduce vibration transmission to equipment frame or ground, reduce noise and extend equipment life.

Precise adjustment: It can adapt to the needs of different potato varieties or sorting speeds through air pressure adjustment.

2. Buffer protection of conveying system
Application scenario: Potatoes are prone to skin damage due to collision during conveyor belt or roller transmission.

Function of flange air spring:

Installed at the support point or turning point of the conveyor belt, using its elastic characteristics to slow down the impact of potatoes falling or turning.

The flange design facilitates rigid connection with the conveyor frame to ensure stability.

3. Stability of optical sorting equipment
Application scenario: Modern sorting plants use optical sensors or cameras to detect potato defects (such as mold spots and green skin).

Function of flange air spring:

Provide a stable support platform for optical equipment to prevent external vibration from interfering with imaging accuracy.

Compensate for uneven ground or slight displacement during equipment operation by actively adjusting air pressure.

4. Accurate support of weighing module
Application scenario: High-precision weighing sensors are required when potatoes are sorted by weight.

Function of flange air spring:

Isolate the mechanical interference of weighing module and other vibration sources to ensure accurate weighing data.

The flange connection method is easy to integrate with the weighing structure, maintaining rigidity while providing flexible buffering.

What about our package & shipping terms?

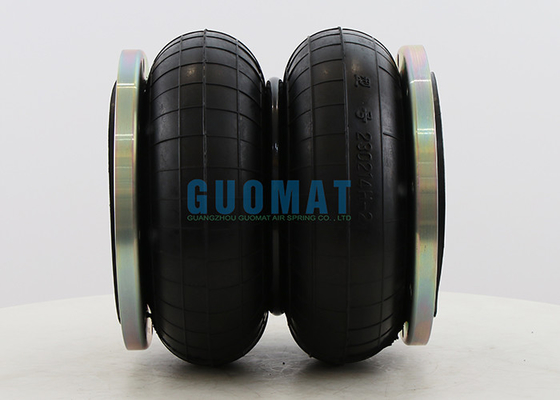

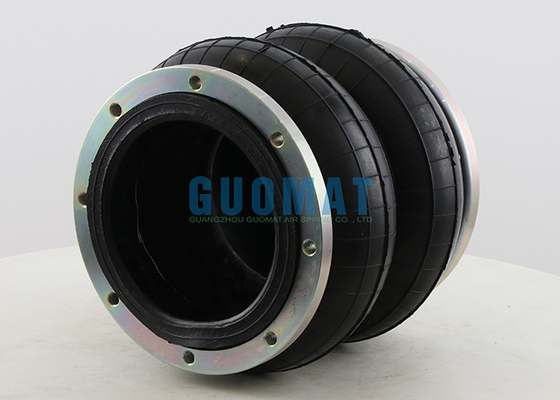

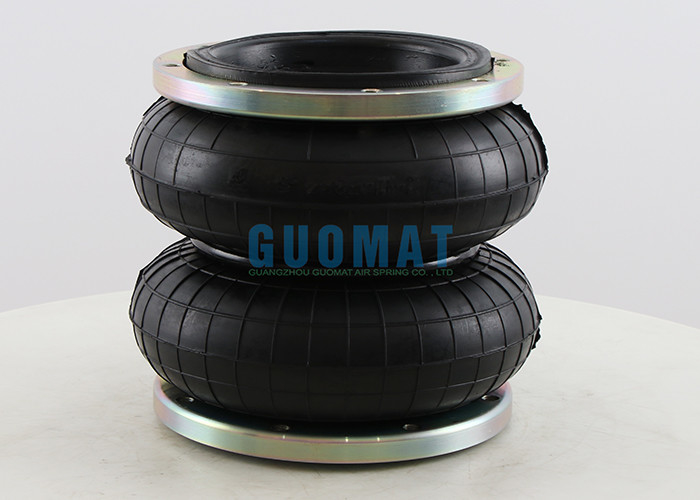

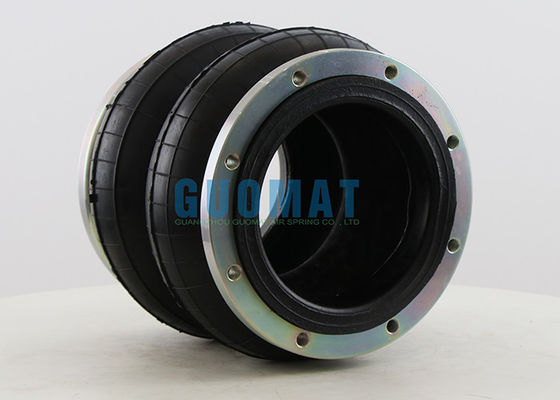

Details pictures of air spring 2H230214
