W01-M58-6136 Firestone Triple Convoluted Rubber Air Spring Style 33 Bellow Air Bag

W01-M58-6136 Firestone Triple Convoluted Rubber Air Spring Style 33 Bellow Air Bag

Quack Detail

GUOMAT Number: 3B6136

Cross Firestone Number: W01-M58-6136

Cross Firestone Number: W01 M58 6136

Cross Firestone Number: W01M586136

Cross Firestone Style: Style 33

3B6136 Convoluted Air Spring Technical Data

• The maximum height is 508mm
• The minimum height is 114mm
• The design height is 375mm
• The diameter of the top cover and the bottom cover is 287mm
• The top cover has four M8X1.25 blind nuts
• The center distance between the blind nuts of the top cover is 159mm
• The top cover also has an air hole, the specification is 1/4BSP
• The center distance between the blind nuts of the top cover and the air hole is 79mm
• The bottom cover has four M8X1.25 blind nuts
• The center distance between the blind nuts of the bottom cover is 159mm
• At 7Bar air pressure, the maximum outer diameter is 386mm

Force Table

Specific applications of rubber air springs in Web Tensioning Devices

(1) Floating support of tension rollers
Function: The rubber air spring supports the tension roller (such as a floating roller or a dancer roller) and applies a reverse force through air pressure regulation to balance the tension of the web.

Dynamic response: When the web speed or tension fluctuates, the air spring quickly adjusts the air pressure to maintain the position of the roller stable and avoid sudden changes in tension.

(2) Closed-loop tension control system
Sensor feedback: Combined with a tension sensor or position sensor, the web tension is monitored in real time, and the air pressure of the air spring is controlled by the PLC to achieve closed-loop regulation.

Multi-stage control: Air springs are used independently in unwinding, intermediate traction, winding and other workstations to meet different tension requirements.

(3) Vibration and impact absorption
Shock absorption: When the web runs at high speed, lateral vibration or instantaneous impact may occur. The damping characteristics of the air spring can effectively suppress vibration and protect the equipment.

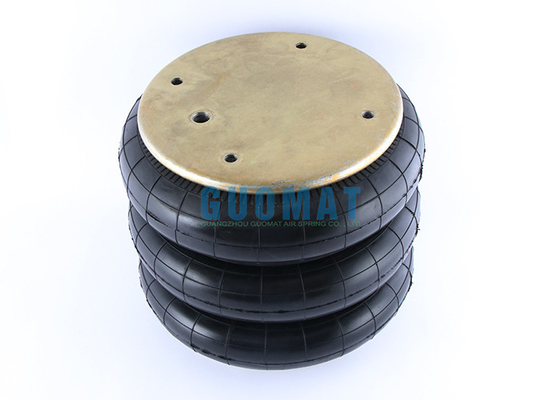

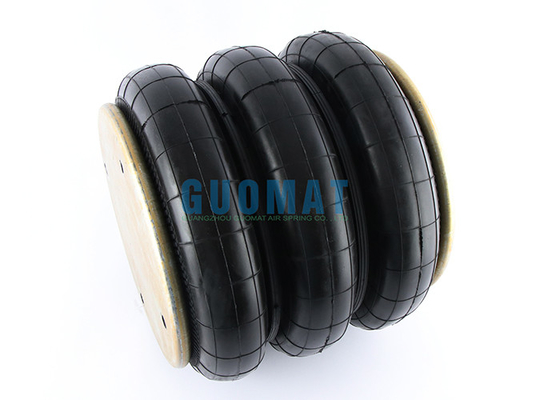

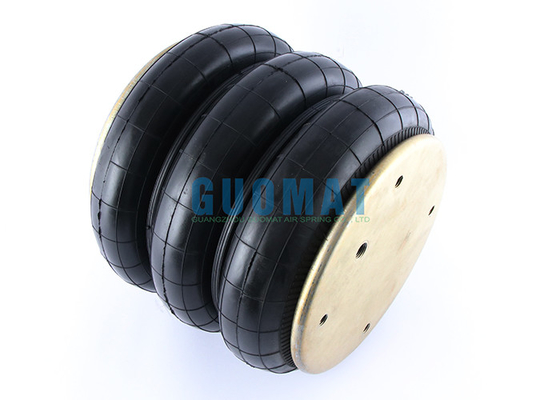

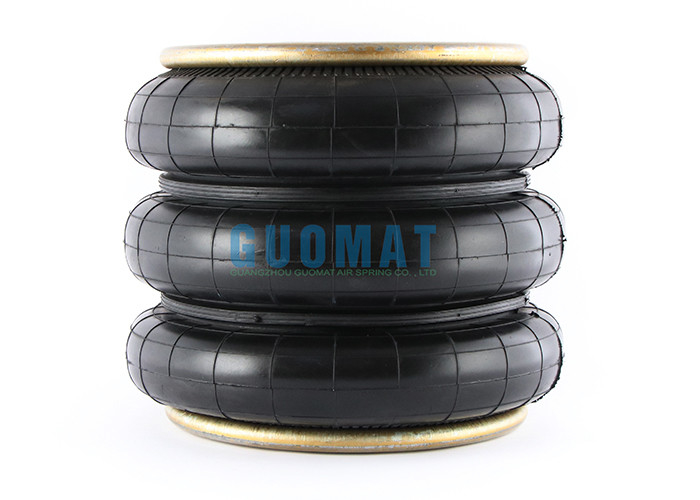

GUOMAT Product Picture
