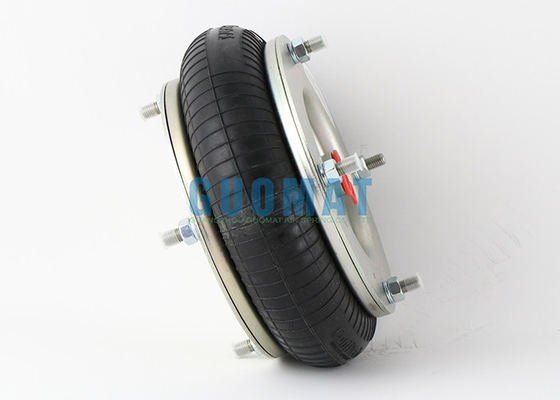

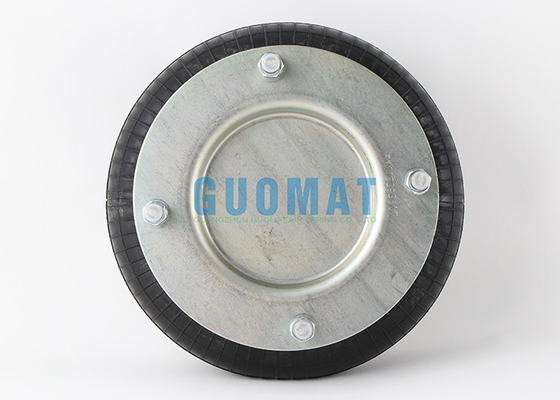

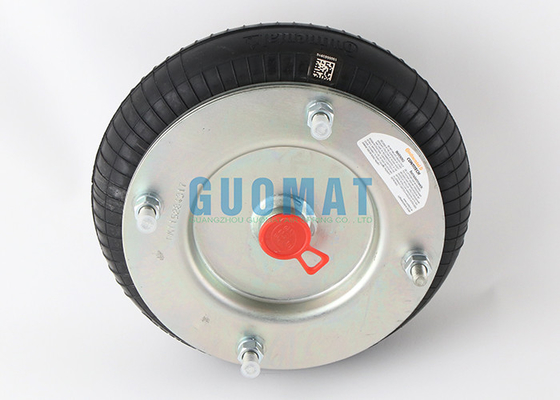

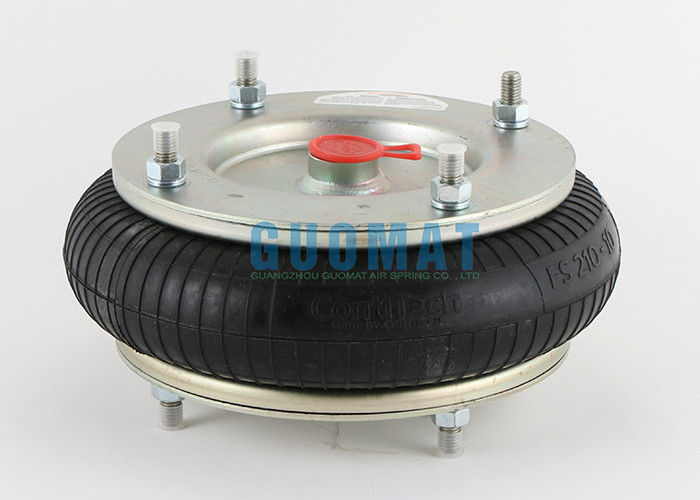

FS210-10 DS Contitech Air Spring G1/2 Flange Connection Type Air Suspension Bag
Product Information
Original Manufacturer: Continental
Continental Contitech: FS210-10
Continental Contitech: FS 210-10
Continental Contitech: FS210-10 DS G1/2
Continental Contitech: FS 210-10 DS G1/2
Continental Contitech: FS210-10 DS G1/2 M10
Continental Contitech: FS 210-10 DS G1/2 M10
FS210-10 Contitech Air Spring Technical Data
Top cover diameter: 210mm
Air hole: G1/2
Screw: Top cover has 4 M10 screws; bottom cover has 4 M10 screws
Center distance between two screws: 181mm
Maximum outer diameter: 270mm
Suitable installation space: 300mm
Maximum height: 150mm
Minimum height: 50mm
Recommended height for vibration isolation: 120mm
Industrial Air Spring
Industrial air springs (also known as pneumatic springs, airbag springs) are devices that use the elastic properties of compressed air to achieve buffering, shock absorption, support or height adjustment. Its core advantages are adjustable stiffness, wide load range, and excellent vibration isolation performance. It is widely used in industrial machinery, transportation, precision equipment and other fields.
Industrial machinery and automation
Shock absorption and vibration isolation: used for stamping machines, injection molding machines, CNC machine tools, etc. to reduce the impact of equipment vibration on precision and extend life.
Load balancing: adjust height or compensate for load changes in robotic arms and assembly lines to maintain stability.
Vibration isolation: protect precision instruments (such as semiconductor equipment and optical platforms) from ground vibration interference.
Transportation
Commercial vehicles/rail transportation: as suspension system components (such as buses, trucks, subways), improve ride comfort and reduce cargo damage.
Special vehicles: used in fire trucks, ambulances and other occasions where height adjustment is required to adapt to complex road conditions.
Buildings and infrastructure
Building seismic isolation: isolate seismic wave shock in large buildings or bridges.
Equipment base: Reduce vibration transmission of HVAC systems, generators and other equipment.
Aerospace
Aircraft landing gear, door seals, etc., taking advantage of its lightweight and high load-bearing characteristics.
Medical and laboratory
Support equipment that requires a vibration-free environment, such as operating tables and microscope tables.
Contitech Flange Air Spring
| FS 76-7 DS |
FS 138-8 DS |
| FS 210-10 DS |
FS 412-10 DS |
| FS 614-13 DS |
FS 816-15 DS |
| FD 76-14 DS |
FD 209-21 DS |
| FD 138-18 DS |
FD 210-22 DS |
| FD 412-18 DS |
FD 614-26 DS |
| FD 816-30 DS |
FT 76-20 DS |
| FT 138-26 DS |
FT 210-32 DS |
| FT 412-32 DS |
FT 614-36 DS |
| FT 816-40 DS |
|
