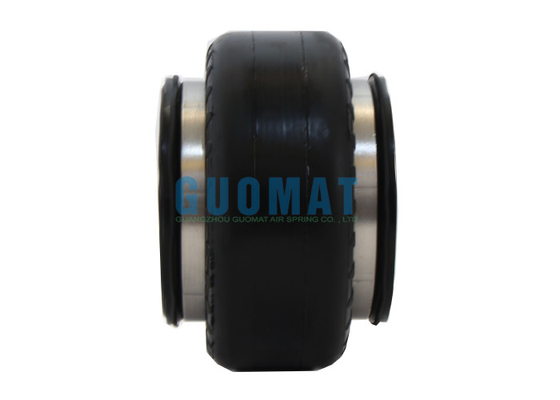

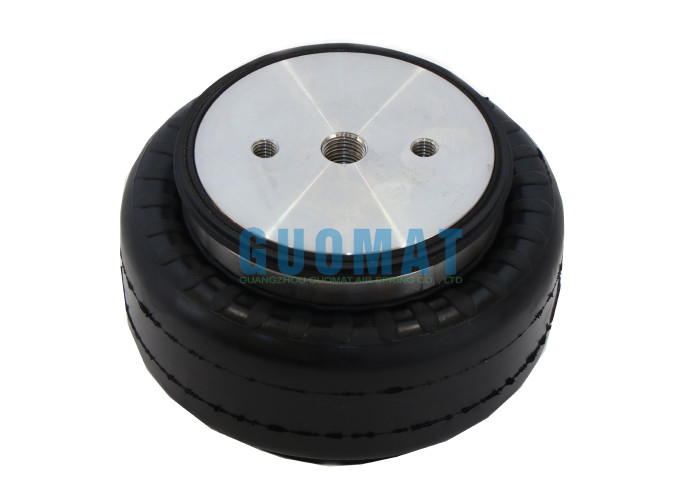

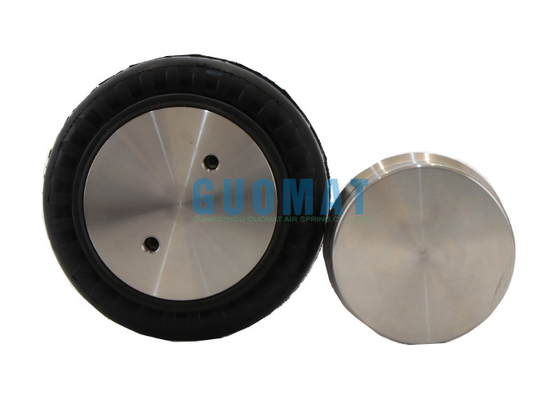

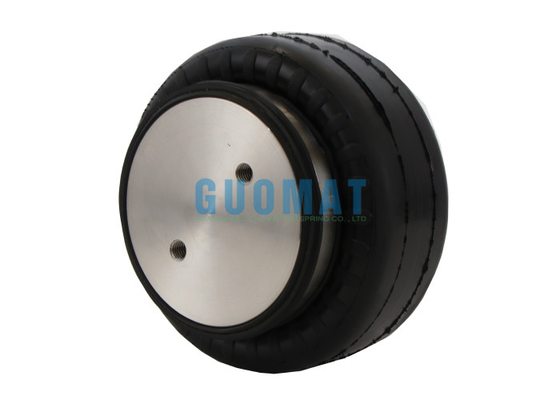

Goodyear 1B5-510 Aluminum Cover Industrial Air Spring 50mm-120mm Stroke Air Bag Replacement

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B5510S

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$79.9-89.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Shock Absorber Type:	Gas-Filled	Warranty:	1 Year
Material:	Rubber Bellow And Aluminum Cover	Quality:	100% Tested
Package:	Carton/Cartons	Function:	Reduce Shock
Goodyear:	1B5-510	Suspension System:	Air Suspension Spring
Highlight:	120mm Stroke Industrial Air Spring , 1B5-510 Industrial Air Spring , Goodyear Industrial Air Spring

Goodyear 1B5-510 Aluminum Cover Industrial Air Spring 50mm-120mm Stroke Air Bag Replacement

Product Description

Brand: GUOMAT

Part No.: 1B5510S

Goodyear Super-Cushion Air Spring 1B5-510

Goodyear Super-Cushion Air Spring 1B 5-510

Goodyear Super-Cushion Air Spring 1B5 510

Goodyear Super-Cushion Air Spring 1B5510

Goodyear Super-Cushion Air Bellow 579-913-501

Goodyear Super-Cushion Air Bellow 579 913 501

Goodyear Super-Cushion Air Bellow 579913501

Enidine Air Springs YI-1B5-510

Enidine Air Springs YI 1B5-510

Technical Parameter
Air Fitting: 1/4" BSP - On Center
End Plate Dia.: 85mm
Mounting Holes: (2) 3/8"-16
Mtg. Hole Spacing: 44.5mm
Max Height: 120mm

Min Height: 50mm

Max Outer Dia.: 150mm
Bumper: No

Goodyear Single Convoluted Air Spring

Model No.	Bellow No.	Stroke(inch)	Cover dia.(inch)	Threaded hole center dia.(inch)	Distance between threaded hole and air hole(inch)
1B12-301	578-91-3-301	7.2-2.6	9.0	6.2	2.88
1B12-305	578-91-3-301	7.2-2.6	9.0	6.2	2.88
1B12-306	578-91-3301	7.2-4.2	9.0	6.2	2.88
1B12-313	578-91-3-301	7.2-2.3	9.0	6.2	2.88
1B12-322	578-91-3-301	7.2-2.6	9.0	5.5	3.1
1B14-350	578-91-3-351	7.2-2.3	11.3	6.25	3.12
1B14-351	578-91-3-351	7.2-4.2	11.3	6.25	3.12
1B14-373	578-91-3-351	7.2-2.6	11.3		6.20
1B14-358	578-91-3-352	8.3-2.3	11.30	6.25	3.12
1B8-564	579-91-3-532	6.7-2.3	5.03	2.75	1.38
