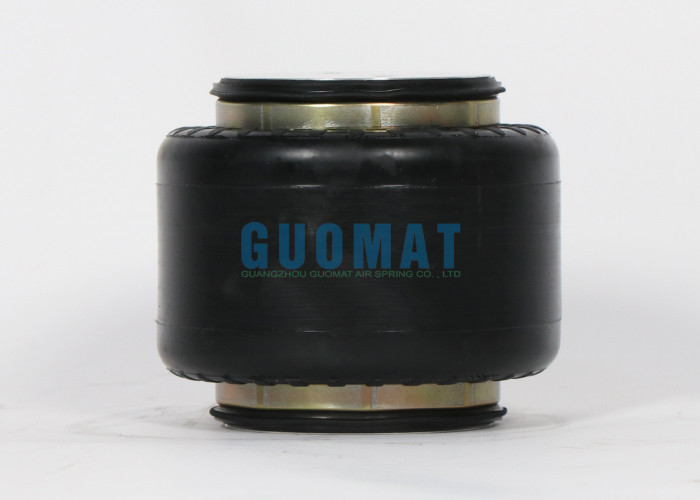

1B5-520 Single Convoluted Rubber Air Bellow 579-912-52 Conveyor Belt Equipment Air Spring

1B5-520 Single Convoluted Rubber Air Bellow 579-912-52 Conveyor Belt Equipment Air Spring

Product Information

GUOMAT Number 1B5520

Goodyear Number 1B 5-520

Goodyear Number 1B5 520

Goodyear Number 579-912-520

Goodyear Number 579 912 520

Goodyear Number 579912520

Enidine Inc. YI-1B5-520

Enidine Inc. YI 1B5 520

Enidine Inc. YI1B5520

Technical Data

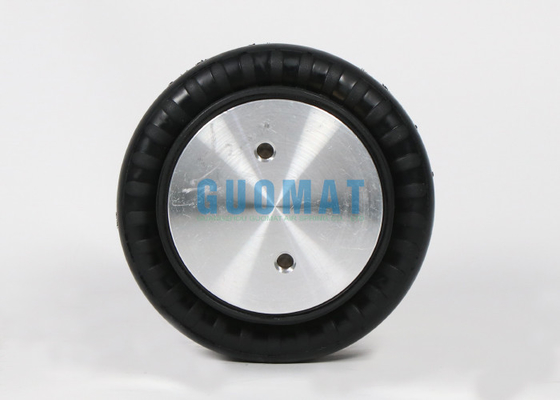

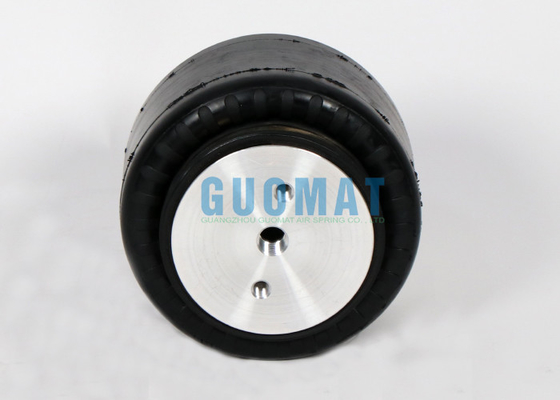

Top Cover Plate

Top cover plate diameter: 3.4''

Air fitting: 1/4'' or 3/4''

Threaded hole: 3/8''-16 UNC-2BX5/8'' Deep

Center distance between threaded holes: 1.75''

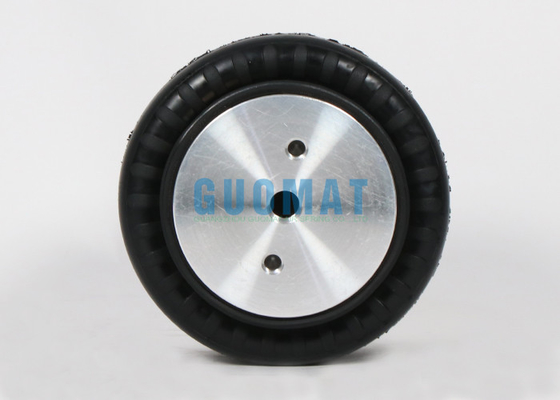

Bottom Cover Plate

Bottom cover plate diameter: 3.4''

Threaded hole: 3/8''-16 UNC-2BX5/8'' Deep

Center distance between threaded holes: 1.75''

Rubber Bellows

The rubber bellows max.outer diameter: 6.5''

Max height: 5.8''

Min height: 1.8''

Compressed height: 4''

Load Range (ISOLATOR): 190-1500 lb

Design Height Range (ISOLATOR): 3.5-5.0 in

Useable Stroke (ACTUATOR): 3.0 in

Assembly Weight: 1.4 lb

Force to Compress at 0 PSIG (APPROS): 40 lb

Nominal Free Standing Height At 0 PSIG: 4.3 in

Application of Industrial Air Springs in Conveyor Belt Equipment

Application scenarios:
Conveyor belt equipment often vibrates due to material impact, motor vibration or mechanical transmission during operation, especially in high-speed, heavy-load or long-distance conveying scenarios.

Solution: Install air springs at equipment support points (such as drive devices, brackets or frames) to absorb vibrations using their compressibility and damping characteristics.

Effect: Reduce equipment structural fatigue, reduce noise, and protect key components such as conveyor belts and bearings.

Typical Application Cases

Long-distance conveyor belts in mines:
Air springs are used at the drive roller and redirection roller to alleviate the impact force during start-stop and prevent belt tearing.

Automated warehousing and sorting lines:
The height of the conveyor belt is adjusted by air springs to meet the needs of different sorting stations.

Heavy material conveyors:
Dynamically balance the load to avoid structural deformation caused by uneven material distribution.
