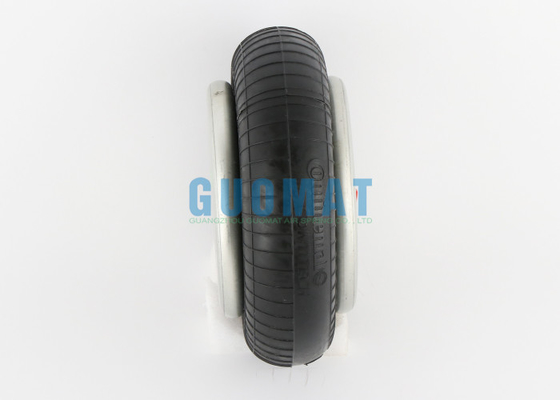

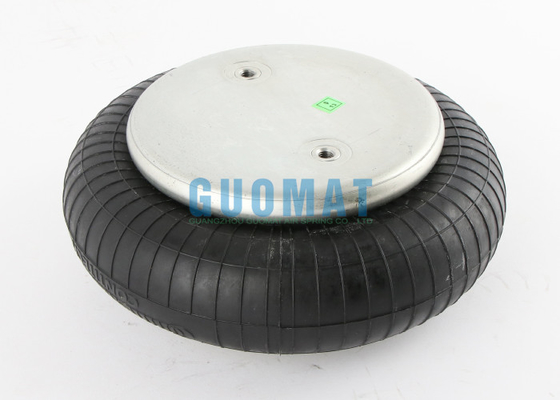

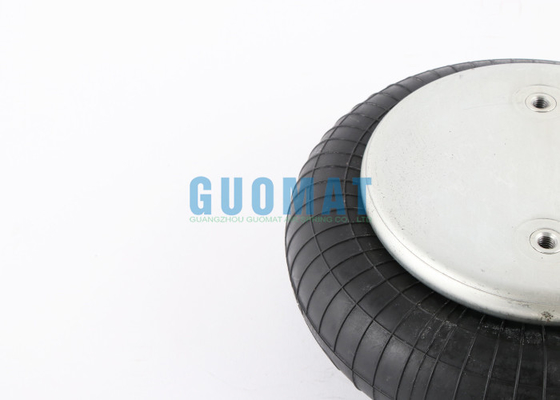

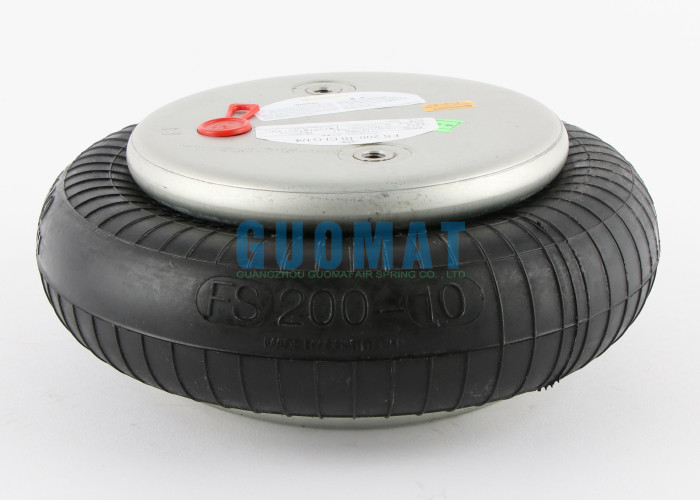

FS200-10 Contitech Air Pneumatic Actuators G1/4 Rubber Air Suspension Spring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B20010-1/4

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$69.9-159.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Type:	Single Convoluted Airbag	Warranty:	1 Year
Material:	Rubber + Steel	Packing:	Brown Carton
Quality:	100% Tested	Convolutions:	1
Spring Weight:	2.3KG	Pressure Range:	3-8Mpa
Highlight:	G1/4 Rubber Air Suspension Spring , FS200-10 Rubber Air Suspension Spring , Contitech Rubber Air Suspension Spring

FS200-10 Contitech Air Pneumatic Actuators G1/4 Rubber Air Suspension Spring

Company Information

Item	Air Spring/Shock Absorber Spring/Air Bellows
Brand	GUOMAT
Model Number	1B20010-1/4
Material	Rubber And Steel
Warranty	1 Year
MOQ	1 PCS If We Have Stock
Package	(1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package
Delivery Time	2-8 Working Days
Payment	T/T, L/C, PayPal, Western Union
After Service	(1) Examination Before Shipment (2) Follow Up The Customers' Feedback
Main products we sell	Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump

The Following is the Model Information of this Product

GUOMAT Part Number: 1B20010-1/4

Contitech Part Number: FS200-10

Contitech Part Number: FS 200-10

Contitech Part Number: FS200-10 CI

Contitech Part Number: FS 200-10 CI

Contitech Part Number: FS200-10 CI G1/4

Contitech Part Number: FS 200-10 CI G1/4

Contitech Part Number: FS200-10 CI G1/4 M8

Contitech Part Number: FS 200-10 CI G1/4 M8

FS 200-10 Contitech Industrial Air Spring Technical Data

The top and bottom diameter: 161mm

Threaded hole: M8
Center distance between threaded holes: 89mm
Maximum outer diameter: 250mm
Maximum height: 140mm
Minimum height: 51mm
Design height: 110mm

Rubber bellows only

With crimped plates,G1/4 air inlet A=44.5mm excentrical

With crimped plates and bumper A=44.5mm excentrical

With crimped plates,G3/4 air inlet A=38.1mm excentrical

With stainless steel crimped plates,G3/4 air inlet A=38.1mm excentrical

Other Contitech Air Spring

FS 40-6 CI	FS 50-5 CI	FS 70-7 CI
FS 100-10 CI	FS 120-9 CI	FS 120-10 CI
FS 120-12 CI	FS 200-10 CI	FS 330-11 CI
FS 330-14 CI	FS 530-11 CI	FS 530-14 CI
FS 960-12 CI	FS 1330-11 CI	FD 40-10 CI
FD 70-13 CI	FD 110-15 CI	FD 120-17 CI
FD 120-20 CI	FD 200-19 CI	FD 200-22 CI
FD 200-25 CI	FD 330-22 CI	FD 330-30 CI
FD 530-22 CI	FD 530-30 CI	FD 530-35 CI
FD 960-22 CI	FD 1330-25 CI	FT 330-29 CI
FT 430-32 CI	FT 530-32 CI	FT 530-35 CI
FT 960-34 CI	FT 1330-35 CI	FS 22-3 DI CR
FS 44-5 DI CR	FS 76-7 DI CR	FS 76-7 DS CR
FS 138-8 DS	FS 210-10 DS	FS 412-10 DS
FS 614-13 DS	FS 816-15 DS	FD 22-4 DI CR
FD 44-10 DI CR	FD 76-14 DI CR	FD 76-14 DS CR
FD 138-18 DS	FD 209-21 DS	FD 210-22 DS
FD 412-18 DS	FD 614-26 DS	FD 816-30 DS
FT 22-6 DI CR	FT 44-15 DI CR	FT 76-20 DI CR
FT 76-20 DS CR	FT 138-26 DS	FT 210-32 DS
FT 412-32 DS	FT 614-36 DS	FT 816-40 DS
