2B7070 GUOMAT Double Convoluted Industrial Air Spring FD 70-13 Contitech Rubber Bellows

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B7070

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Double Convolution Air Spring	Warranty:	12 Months
Material:	Rubber + Steel	ContiTech:	FD70-13
Gas Hole:	G1/4	Rubber Diameter:	146mm
Height:	162mm	Other Name:	Air Suspension Spring,Air Bags
Highlight:	FD 70-13 Industrial Air Spring , GUOMAT Double Convoluted Industrial Air Spring , Contitech Rubber Bellows Industrial Air Spring

2B7070 GUOMAT Double Convoluted Industrial Air Spring FD 70-13 Contitech Rubber Bellows

Product Description

Item Name: Industrial Air Spring
Brand: GUOMAT/Neutral
Model Number: 2B7070
Type: Convoluted Type
Material: Rubber and Steel
Warranty: 1 Year
MOQ: 1 Piece
Color: Black
Origin: Mainland China
Size: Manufactured to Standard Specifications

Contitech: FD70-13/FD 70-13/FD70-13CI/FD 70-13 CI

2B7070 GUOMAT Industrial Air Spring Technical Data

Cover Plate	Top Cover Plate Diameter:105mm
Cover Plate	Bottom Cover Plate Diameter:105mm
Air Inlet	G1/4
Blind Nut	Screw Center Distance Of Top Cover Plate:44.5mm
	Screw Center Distance Of Bottom Cover Plate:44.5mm
	Screw And Gas Hole Distance Of Top Cover Plate: 22.25mm
	Top Cover Plate Screw (Nut) Tooth:2XM8X1.25
	Bottom Cover Plate Screw (Nut) Tooth:2XM8X1.25
Rubber Bellow	Rubber Bellow Natural Diameter:146mm
	The Working Stroke:MAX 200.7mm to MIN 71.12mm
	Maximum Height:200.7mm
	Minimum Height:71.12mm
	Compression Height:129.58mm

Product Features
Excellent shock absorption performance
Traditional steel coil springs will also produce self-vibration due to the impact of objects while absorbing shock. This product uses high-quality imported rubber to avoid this problem.

Effectively reduce noise
The vibration action area of the punch air spring is the rubber airbag in the middle. The vibration conductivity is very low. The frequency from the upper end cover to the lower end cover can be reduced to 1HZ

Stable state and quality assurance
Each of our products will undergo an airtightness test before delivery to ensure the quality of the product. There is no need to worry about gravel embedded in the gap of the equipment, affecting the control accuracy and damaging the equipment.

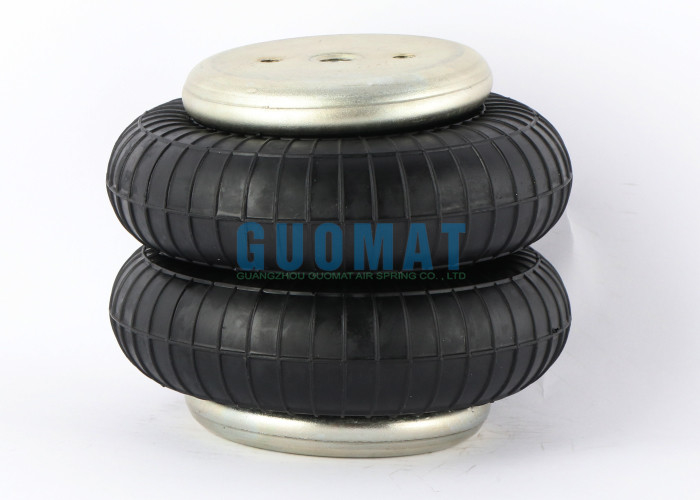

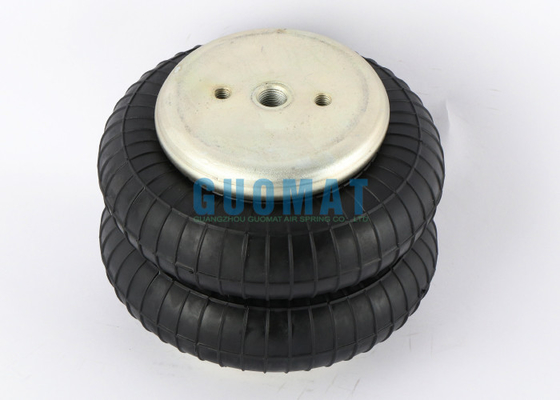

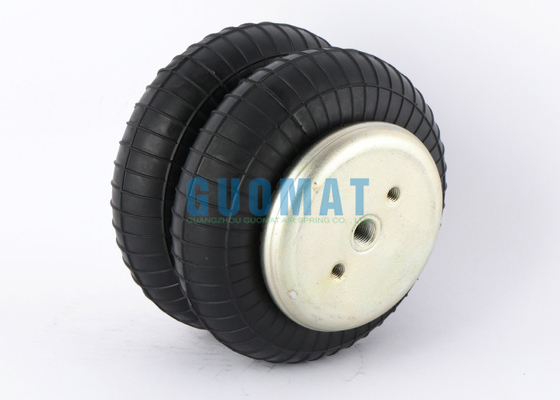

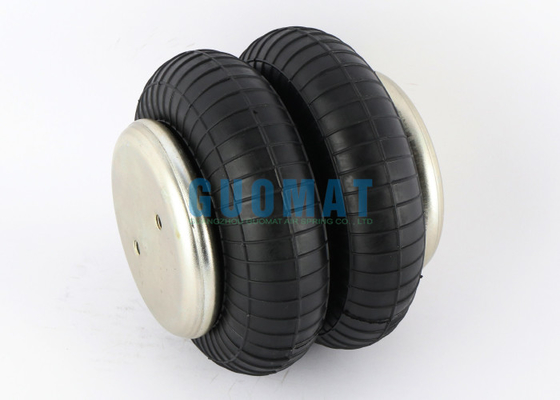

The Real Picture

2B7070 GUOMAT Double Convoluted Industrial Air Spring FD 70-13 Contitech Rubber Bellows 0
