FD76-14 DI CR Contitech Double Convoluted Air Shock G1/2 Air Fitting Industrial Air Spring

Product Details:

Place of Origin:	Germany
Brand Name:	Contitech
Certification:	ISO/TS16949:2009
Model Number:	FD 76-14 DI

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$149.9-169.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Item Name:	Contitech Air Spring	Material:	Rubber
Product Warranty:	12 Months	Color:	Black
Function:	Shock Absorption	Design Height:	155mm
Air Inlet:	G1/2	Part No.:	FD 76-14 DI
Highlight:	FD76-14 Industrial Air Spring , Double Convoluted Industrial Air Spring

FD76-14 DI CR Contitech Double Convoluted Air Shock G1/2 Air Fitting Industrial Air Spring

Product Description

Continental Contitech

FD 76-14 DI CR

70215

Double Convoluted Type

With Flange

Original Model

Original Contitech FD76-14
Original Contitech FD 76-14
Original Contitech FD76-14 DI
Original Contitech FD 76-14 DI
Original Contitech FD76-14 DI G1/2
Original Contitech FD 76-14 DI G1/2
Original Contitech FD76-14 DI G1/2 M10
Original Contitech FD 76-14 DI G1/2 M10
Original Contitech FD76-14 DI / 70215
Original Contitech FD 76-14 DI / 70215

Cross Reference Number
Firestone W01-R58-4070 / WO1-R58-4070
Firestone W01 -R58 4070 / WO1 -R58 4070
Firestone W01R584070 / WO1R584070
Dunlop SP2917 / SP 2917
Dunlop 6X2 / 6''X2
Norgren PM/31062 / PM31062 / PM 31062
GUOMAT 2B6X2T

FD 76-14 Technical Data
Maximum stroke: 110 mm
Maximum height: 190 mm
Minimum height: 75 mm
Recommended maximum working height: 170 mm
Maximum diameter (eight bar): 178 mm
Plate diameter: 153.5 mm
Mounting threads: 4 x M10
Plate material: Galvanized steel
Air inlet: G1/2
Temperature range: -40 to +85°C
Rubber: CR elastomer

Type	Order No.
CR-Rubber bellows, with dismountable plates, G1/2 air inlet	70215
Rubber bellows only	77215

Contitech Model Series D-Double Convoluted Air Bellows

Model	Min.design height (in)	Max. diameter (in)	installation space required(in)	Max. recommeded stroke(in)	Max. stroke (in)	Force at P=116psi			Connection part variant	Distance D (in)
Model	Min.design height (in)	Max. diameter (in)	installation space required(in)	Max. recommeded stroke(in)	Max. stroke (in)	min.height (Ib)	Half stroke(Ib)	max.stroke (Ib)	Connection part variant	Distance D (in)
FD 22-4 DI CR 2 ^3/4X2	2.56	3.15	3.74	1.54	1.77	674.43	427.14	202.33	1	1.42
FD 44-10 DI CR 2 1^/2X2	2.56	4.92	5.51	2.95	3.35	1663.59	1011.4	382.18	2	3.66
FD 76-14 DI CR 6X2	3.15	6.89	7.48	3.74	4.53	3259.73	2090.72	1056.60	3	5.00
FD 76-14 DS CR 6X2	2.95	6.89	7.48	3.74	4.53	3259.73	2090.72	1056.60	4	5.00
FD 138-18 DS 8X2	2.95	9.06	9.65	5.71	6.89	5552.78	2540.34	1124.04	4	5.00
FD 209-21 DS 9^1/4X2	2.95	10.04	10.63	7.28	8.07	7014.04	4158.96	1686.07	4	6.61
FD 210-22 DS 10X2	2.95	10.63	11.81	6.69	8.86	7868.31	4743.47	1596.14	4	7.13
FD 412-18 DS 12X2	2.95	12.99	13.78	6.69	8.86	12049.76	8115.60	3462.06	4	9.13
FD 614-26 DS 14.X2	2.95	15.75	16.73	8.46	10.43	17759.90	11824.95	4428.74	4	11.12
FD 816-30 DS 16X2	6.25	6.25	6.25	6.25	6.25	18928.91	1312.84	4743.47	4	6.25

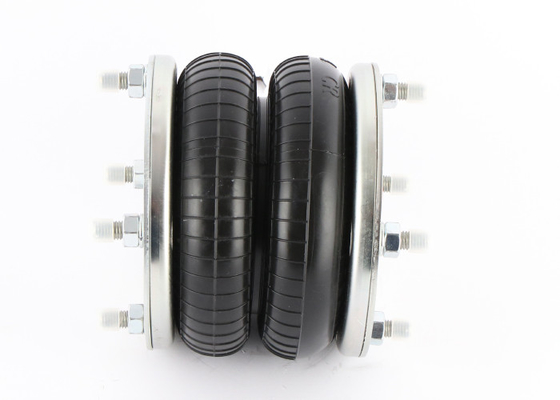

Product Images of Contitech FD76-14 Air Spring Bags
FD76-14 DI CR Contitech Double Convoluted Air Shock G1/2 Air Fitting Industrial Air Spring 0
