M/31081 Norgren Air Bellow SP1537 Dunlop Industrial Air Spring Flange Ring 8''X1

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B8X1T

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$89.9-99.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Features:	Flange Connection	Project Name:	Industrial Air Spring
Material:	Rubber+Steel	Warranty:	1 Year
Packing Size:	242424(cm)	Shock Absorber Type:	Compressed Air
Weight:	3.55KG	Fitting Position:	Mineral Sample Pulverizers
Highlight:	SP1537 Industrial Air Spring , Dunlop Industrial Air Spring , M/31081 Norgren Air Bellow

M/31081 Norgren Air Bellow SP1537 Dunlop Industrial Air Spring Flange Ring 8''X1

Product Description

Item	Value
Type	Air Spring
Part NO.	1B8X1T
Warranty	12 Months
Color	Black
Place of Origin	Guangzhou,China
Certification	ISO/TS16949:2009
Material	Rubber+Steel
Packing	Neutral Packing
MOQ	1 Pcs
Quality	High-Quality
Position	Industrial Machine

Reference Number

Refer to Firestone W01 R58 4054 / W01-R58-4054 / W01R584054

Refer to Contitech FS 138-8 DS / FS 138-8 / FS138-8 DS

Refer to Dunlop Springride SP1537 / SP 1537

Refer to Dunlop Pneuride 8X1 / 8x1 / 8’‘X1

Refer to Norgren M/31081 / M31081 / M 31081

M/31081 Norgren Air Spring Technical Data

Port Size G1/2

Nominal Diameter 8"

Number Of Convolutions 1

Stroke Length 75 mm

Dimensions - Height 175 mm

Dimensions - Length 230 mm

Dimensions - Width 230 mm

Norgren Model	NominalØ(inch) Xconvolutions	Stroke(mm)	Installation Height B min.(mm)	Thrust at 6 bar (N)	Retracting force to reach min.height(N)	Installation B max.(mm)	Thrust at 6 bar(N)
M/31061	6X1	55	50	10950		140	105
M/31062	6X2	115	75	10400	240	190	3200
M/31081	8X1	80	50	18600	120	130	5350
M/31082	8X2	175	75	17650	250	250	4550
M/31101	10X1	100	50	26450	100	150	9000
M/31102	10X2	225	75	26350	100	300	6450
M/31103	10X3	330	100	26600	190	430	6450
M/31121	12X1	100	50	38850	100	150	15100
M/31122	12X2	225	75	38500	110	300	8550
M/31123	12X3	330	100	40600	180	430	10900
M/31141	14 ^1/2X1	125	50	57600	100	175	21550
M/31142	14 ^1/2X2	265	75	61950	90	340	16900
M/31143	14 ^1/2X3	380	100	62550	290	480	19200
M/31162	16X2	315	75	6520	990	390	20200
M/31163	16X3	430	120	64950	750	550	19050
M/31212	21X2	280	90	141000	480	370	53450
M/31262	26X2	410	90	203700	150	500	84450

Our Services

1. OEM Manufacturing welcome: Product, Package...

2. Sample order is available. If you make a large order after got the sample, we will return you the sample fee as discount.

3. We will reply you for your inquiry in 24 hours.

4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

Product Images

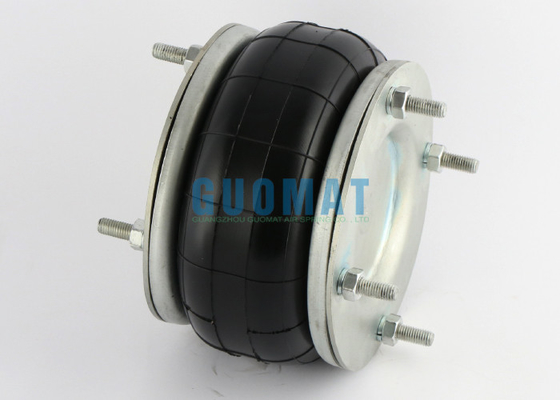

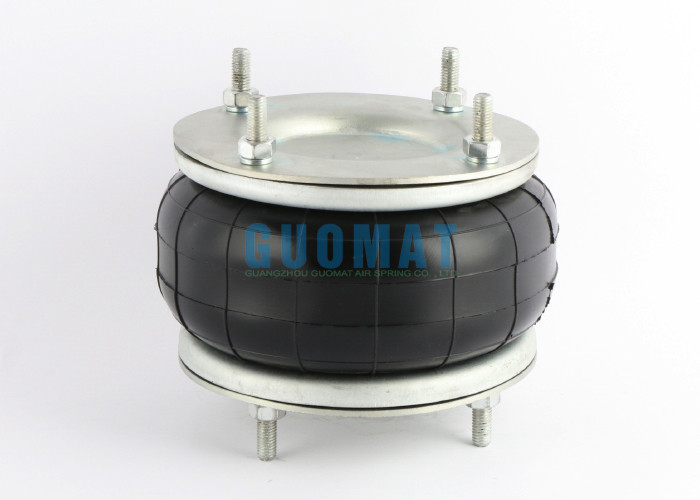

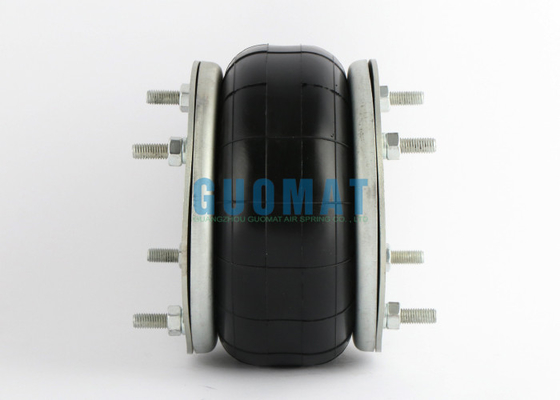

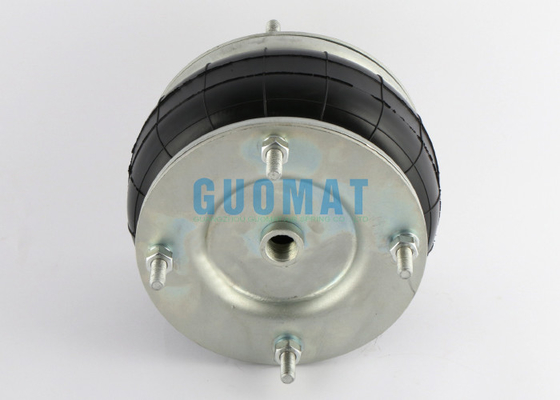

M/31081 Norgren Air Bellow SP1537 Dunlop Industrial Air Spring Flange Ring 8''X1 0
