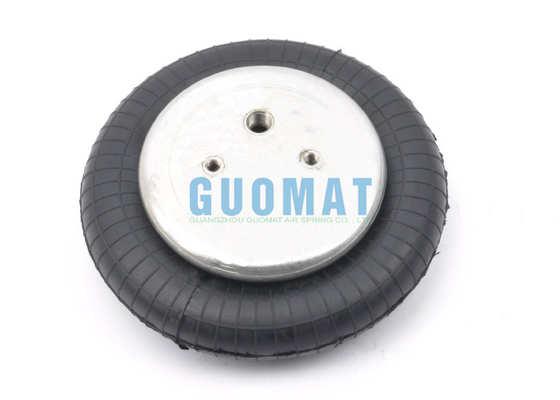

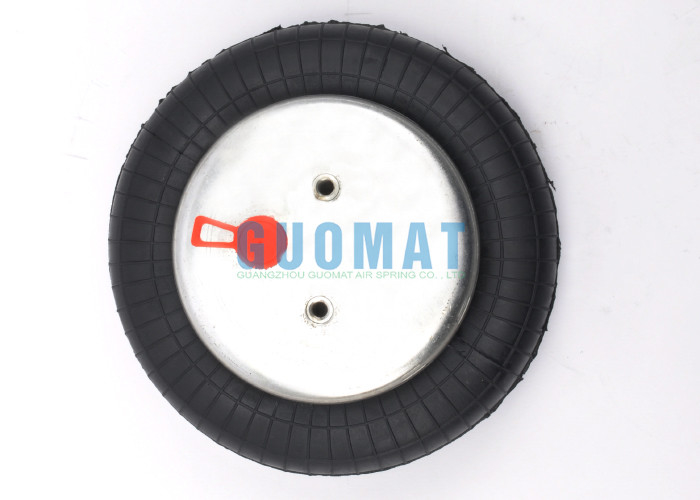

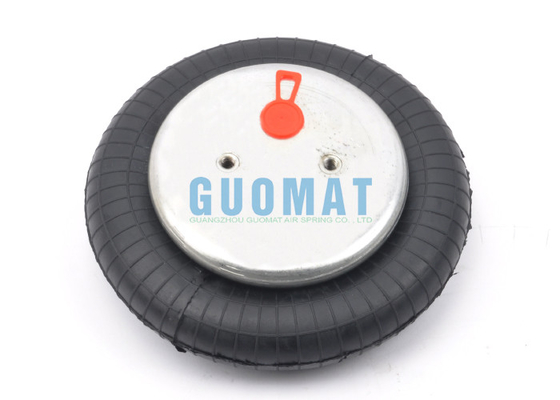

SP-1B07 / SP 1 B 07 Phoenix Single Convolution Bellows Cylinders G1/4 Air Fitting Air Spring
Product Details
|
Product Name
|
Single Convoluted Air Spring Air Bags
|
| Material |
Rubber and Steel |
| Warranty |
12 Months |
| Package |
Standard Packing or Customized |
| Application |
For Industrial Machine |
|
Operation
|
Gas-Filled |
| Phoenix Number |
SP 1B 07 |
| Bellows Number |
1B120-9 |
Refer Numbers
Phoenix Part Number: SP1B07
Phoenix Part Number: SP 1B07
Phoenix Part Number: SP 1B 07
Phoenix Part Number: SP-1B07
Phoenix Part Number: SP-1B 07

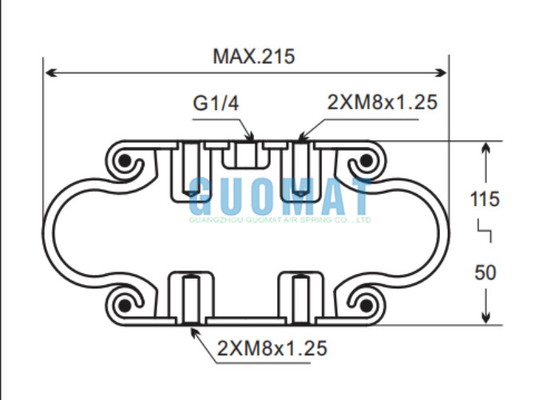

Product Data Parameters
Top Cover Plate Dia.:135mm
Bottom Cover Plate Dia:135mm
Screw Center Distance:53mm
Distance Gas Hole Between Nuts:26mm
Gas Hole Type:G1/4
Screw(Nut)Tooth:2 X M8X1.25
Rubber Bellows Max Dia.: 215mm
The Stroke:50mm-115mm
Phoenix Rubber Air Spring
| Symbol |
Model No. |
Ø mm (inches) |
Port Size |
Max force(N)at 1 bar(0 stroke) |
Max stroke mm |
| Single Convoluted |
SP-1B04 |
150 |
G1/4 |
1250 |
55 |
| SP-1B05 |
165 |
G1/4 |
1350 |
45 |
| SP-1B07 |
205 |
G1/4 |
1550 |
90 |
| SP-1B12 |
250 |
G3/4 |
2800 |
100 |
| SP-1B22 |
350 |
G3/4 |
5050 |
110 |
| SP-1B34 |
420 |
G3/4 |
7600 |
110 |
| Double Convoluted |
SP-2B04 |
165 |
G1/4 |
1250 |
110 |
| SP-2B05 |
165 |
G1/4 |
1350 |
80 |
| SP-2B05A |
170 |
G1/4 |
1750 |
105 |
| SP-2B07 |
215 |
G1/4 |
2200 |
125 |
| SP-2B12 |
250 |
G3/4 |
3700 |
150 |
| SP-2B22 |
320 |
G3/4 |
5000 |
170 |
| SP-2B34 |
390 |
G3/4 |
8000 |
170 |
Industrial Air Spring Application-Scissor Lift
(1) Load adaptability
Dynamic stiffness adjustment: The air spring can flexibly change the stiffness by adjusting the internal air pressure to adapt to different loads (such as heavy object handling or empty state), ensuring that the lifting platform remains balanced under different working conditions.
Automatic leveling: During the extension and retraction of the scissor arm, the air spring can compensate for the platform tilt caused by load change or center of gravity shift in real time, improving operation safety.
(2) Shock absorption and buffering
Vibration absorption: The elastic characteristics of the air spring can effectively absorb mechanical shock during the lifting process (such as start/stop vibration, shaking caused by uneven ground), protecting precision equipment or sensitive goods.
Operation comfort: Reduce the vibration transmitted to the operator, especially in frequent lifting scenarios (such as production lines, logistics sorting), and improve the comfort of long-term operation.
(3) Simplified structure and maintenance
Replacement of complex hydraulic systems: Some scissor lifts use air springs instead of traditional hydraulic cylinders to reduce the risk of oil leakage and reduce maintenance costs.
Modular design: The air spring is easy to install and replace, and supports modular upgrades of the scissor structure to shorten downtime.
Industrial air springs provide a more flexible and intelligent solution for scissor lifts, especially suitable for industrial environments with high requirements for stability, multi-scenario adaptability and low maintenance.
