Large Air Bag LHF500/220-2 Industrial Rubber Bellows Air Spring With Flange Ring

Large Air Bag LHF500/220-2 Industrial Rubber Bellows Air Spring With Flange Ring

Product Description

GUOMAT: LHF500/220-2

GUOMAT: LHF 500/220-2

GUOMAT: LHF500220-2

GUOMAT: LHF 500220-2

Installation Precautions for Vibration Test Bench LHF500/220-2 Rubber Airbag

1. Check before installation
Integrity of the airbag: Check whether the rubber airbag has cracks, wear or aging signs, and ensure that there is no transportation damage.
Model matching: Confirm that the airbag specifications (such as LHF500/220-2) are completely consistent with the requirements of the vibration table.
Complete accessories: Check whether the accessories such as bolts, gaskets, and seals are complete and undamaged.

2. Installation environment requirements
Cleanliness: The installation area must be clean to avoid dust, oil or sharp objects scratching the tire.
Temperature: It is recommended to install at room temperature (30°C~40°C). Extreme temperatures may affect the flexibility of the rubber.

3. Notes on installation steps
Alignment and positioning: Ensure the alignment of the airbag with the vibration table and the base to avoid abnormal vibration or wear caused by eccentric loads.
Tightening torque: Tighten the bolts evenly according to the torque required by the manufacturer to avoid over-tightening (damage to the airbag) or over-loosening (leakage or displacement).
Air pressure adjustment: Confirm the rated air pressure range before inflation, use a pressure gauge for precise control, and prohibit overpressure or underpressure.

Sealing test: Inflate to the working pressure after installation, and let it stand for 30 minutes to check for leaks (you can apply soapy water for detection).

4. Safety and debugging
Protective measures: Wear gloves during installation to avoid contact between rubber and grease or corrosive chemicals.
Initial test: Start the vibration table at low speed without load to observe whether the air tire is evenly expanded and whether there is abnormal shaking or abnormal noise.
Load test: Gradually increase the load to the rated value to monitor the deformation and vibration stability of the air tire.

5. Maintenance tips
Regular inspection: Recheck the bolt tightness and air pressure within 24 hours after operation, and perform routine inspections every month thereafter.

-Life monitoring: The general service life of rubber air tires is 3 to 5 years (depending on the frequency of use), and they should be replaced in time after aging.

Common mistakes to avoid
- × Use tools to directly hit the air tire.
- × Ignore the compensation for changes in air pressure with temperature (high temperature requires pressure relief, and low temperature requires pressure replenishment).
- × Mixing new and used pneumatic tires or accessories from different brands.

LHF Type Air Spring

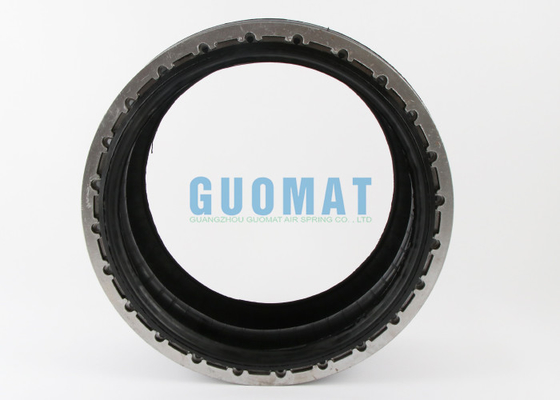

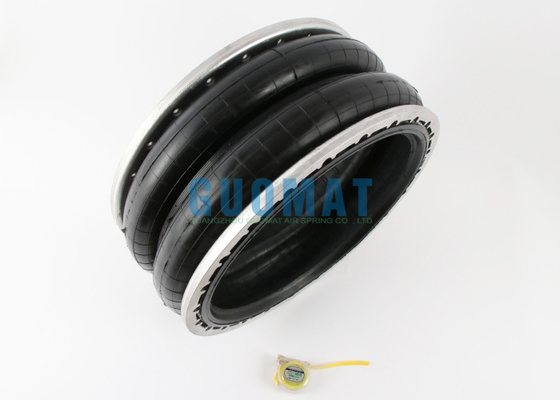

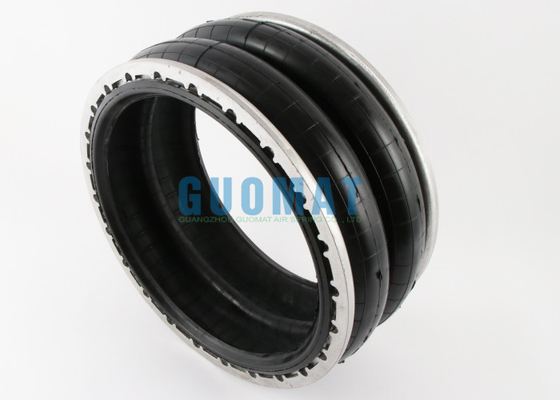

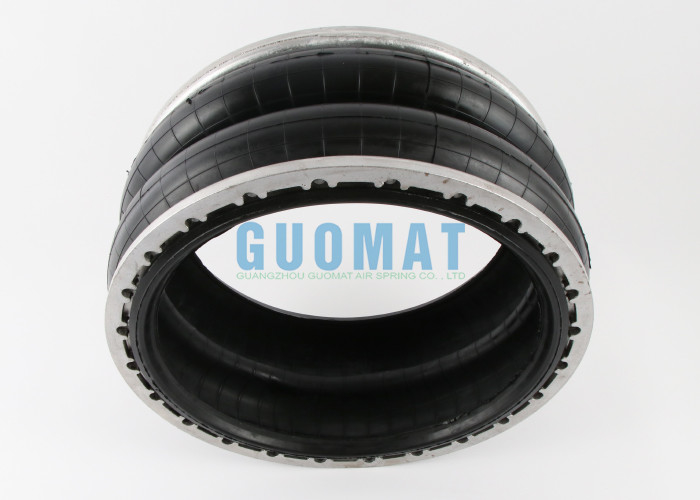

The Real Pictures of LHF500/220-2 Rubber Industrial Air Bags
