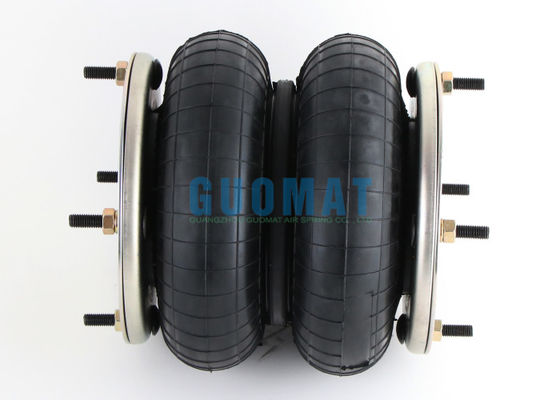

FD138-18 DS Contitech Flange Air Spring 8" x 2 Rubber Bellows For Bin-Tilting Devices
Product Description
Manufaturer: GUOMAT
Model No.: 2B8X2T
Rubber No.: 8''X2
Material: Rubber and Steel
Warranty: 1 Year
Payment Method: T/T,PayPal,Western Union
Shipping Method: By air,By sea,By express(FedEx,UPS,DHL,EMS,TNT)
Original Equipment Manufacturers Numbers
Cross Contitech Part Number: FD138-18
Cross Contitech Part Number: FD 138-18
Cross Contitech Part Number: FD138-18DS
Cross Contitech Part Number: FD 138-18DS
Cross Contitech Part Number: FD 138-18 DS
Cross Contitech Part Number: FD 138-18 DS / 66505
Cross Firestone Part Number: W01-R58-4055
Cross Firestone Part Number: W01 R58 4055
Cross Firestone Part Number: W01R584055
Cross Dunlop Part Number: SP1490
Cross Dunlop Part Number: SP 1490
Cross Dunlop Part Number: 8''X2
Cross Norgren Part Number: M/31082
Cross Norgren Part Number: M 31082
Cross Norgren Part Number: M31082
2B8x2T Rubber Air Spring Tecjhnical Data
|
Design height: 200mm
|
|
Maximum height: 250mm
|
|
Minimum height: 75mm
|
|
Cover diameter: 184mm
|
|
Air hole: G1/2
|
|
Screw thread: M10
|
|
Center distance between screw threads: 155.5mm
|
|
The rubber bellow max outer diameter: 230mm
|
GUOMAT Double Convoluted Air Spring with Flange,Dismountable Plates
| GUOMAT |
Bellow No. |
Firestone |
Contitech |
Norgren |
Dunlop |
| 2B4.5X2P |
41/2''x2 |
W01-R58-4051 |
FD 44-10 DI |
PM/31042 |
SP2441 |
| 2B6X2P |
6''X2 |
W01-R58-4070 |
FD 76-14 DI |
PM/31062 |
SP2917 |
| 2B6X2T |
6''X2 |
W01-R58-4053 |
FD 76-14 DS |
M/31062 |
SP1482 |
| 2B8X2T |
8''X2 |
W01-R58-4055 |
FD 138-18 DS |
M/31082 |
SP1490 |
| 2B10X2T |
10''X2 |
W01-R58-4058 |
FD 210-22 DS |
M/31102 |
SP1538 |
| 2B12X2T |
12''X2 |
W01-R58-4061 |
FD 412-22 DS |
M/31122 |
SP1541 |
| 2B14.5X2T |
14 1/2''x2 |
W01-R58-4064 |
FD 614-26 DS |
M/31142 |
SP1556 |
| 2B16X2T |
16''x2 |
W01-R58-4067 |
FD 816-30 DS |
M/31162 |
SP1557 |
The Real Pictures
