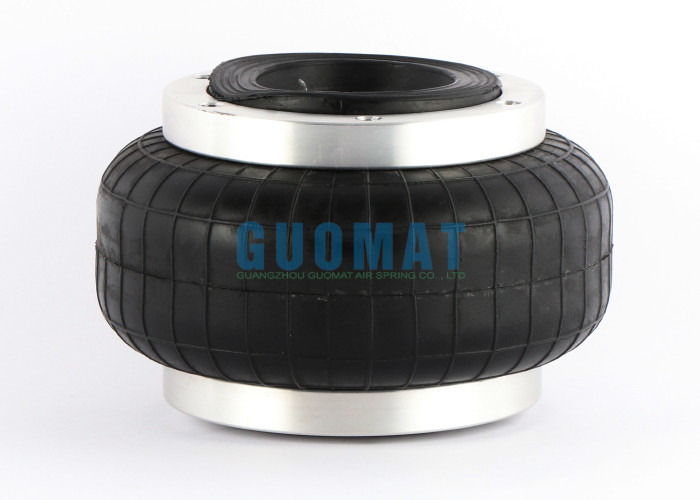

W01-358-0112 Firestone Convoluted Air Spring Style 110 Industrial Bellows Actuator

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1H0112

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$89.9-99.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Type:	Flange Air Spring	Material:	Rubber And Steel
Warranty:	12 Months	Function:	Reduce Shock
Firestone:	W01-358-0112	Bead Ring Type:	4
Other Name:	Single Convoluted Air Spring	Firestone Style:	Style 110

W01-358-0112 Firestone Convoluted Air Spring Style 110 Industrial Bellows Actuator

Product Description

GUOMAT No.: 1H0112

Material: Rubber+Steel

Warranty: 1 Year

Type: Convoluted Air Spring

Color: Black

Place of Origin: Guangzhou,China

Packing: Neutral Packing

Socket head aluminum bead rings(bolts,nuts,washers not included-use 1/4 cap screws)

Firestone Number W013580112

Firestone Number W01-358-0112

Firestone Number W01 358 0112

Firestone Style Number 110

Blind nuts,1/4NPT

Firestone Number W013587451

Firestone Number W01 358 7451

Firestone Number W01-358-7451

Blind nuts,3/4NPT

Firestone Number W013587484

Firestone Number W01 358 7484

Firestone Number W01-358-7484

Rubber bellows only

Firestone Number W013580100

Firestone Number W01 358 0100

Firestone Number W01-358-0100

1H0112 Air Spring Technical Data

Max.Height: 6 inches

Min.Height: 2.1 inches

Maximum Diameter @ 100 PSIG (inches): 8.3
Bead ring Type: 4
Bolt Circle Diameter (inches): 4.5
Number of Bolts (each ring): 6

Design Height: 4.5

Dynamic Characteristics at 4.5 in. design Height

Volume@100PSIG=128in³			Natural Frequency
Gage Pressure (PSIG)	Load (Ibs.)	Spring Rate(Ibs./in,)	CPM	HZ
40	650	554	173	2.88
60	1010	795	167	2.77
80	1390	1046	162	2.71
100	1790	1294	160	2.66

Force Table

Assembly Height(in.)	Volume@100 PSIG(IN3)	Pound Force
Assembly Height(in.)	Volume@100 PSIG(IN3)	@20 PSIG	@40 PSIG	@60 PSIG	@80 PSIG	@100 PSIG
4.0	117	190	810	1240	1700	2160
3.0	91	490	1010	1540	2090	2650
