Contitech Convolution Air Actuator FS412-10 G1/2 Industrial Rubber Air Spring With Flange
Product Information
Original Contitech Number: FS412-10
Original Contitech Number: FS 412-10
Original Contitech Number: FS412-10 G1/2
Original Contitech Number: FS 412-10 G1/2
Original Contitech Number: FS412-10 G1/2 M10
Original Contitech Number: FS 412-10 G1/2 M10
Original Contitech Number: FS412-10 DS G1/2
OEM Number:
FIRESTONE: W01-R58-4060
FIRESTONE: W01-R58 4060
FIRESTONE: W01R584060
DUNLOP: 12X1
DUNLOP: 12''X1
DUNLOP: SP1540
DUNLOP: SP1540 12''X1
NORGREN: M/31121
NORGREN: M31121
NORGREN: M 31121
FS412-10 Contitech Air Spring Technical Data
Maximum height: 150mm
Minimum height: 50mm
Stroke: 100mm
Design height: 120mm
Cover diameter: 260mm
Top cover threaded holes: 4pcs M10
Bottom cover threaded holes: 4pcs M10
Center distance between threaded holes: 232mm
Maximum outer diameter: 330mm
Air hole: G1/2, center
Single Convoluted Contitech Air Spring with Flange
| FS 22-3 DI |
FS 22-3 DI G1/4 |
FS 22-3 DI G1/4 CR |
| FS 44-5 DI |
FS 44-5 DI CR |
FS 44-5 DI G3/8 CR |
| FS 76-7 DI |
FS 76-7 DI CR |
FS 76-7 DI G1/2 CR |
| FS 76-7 DS |
FS 76-7 DS CR |
FS 76-7 DS G1/2 CR |
| FS 138-8 DS |
FS 138-8 DS CR |
FS 138-8 DS G1/2 CR |
| FS 210-10 DS |
FS 210-10 DS G1/2 |
FS 210-10 DS G 1/2 |
| FS 412-10 DS |
FS 412-10 DS G1/2 |
FS 412-10 DS G 1/2 |
| FS 614-13 DS |
FS 614-13 DS G1/2 |
FS 614-13 DS G 1/2 |
| FS 816-15 DS |
FS 816-15 DS G1/2 |
FS 816-15 DS G 1/2 |
GUOMAT Air Spring
Advantage 1: The air spring has a relatively mature and stable technology in production and processing, and the quality level of the factory is relatively high. Therefore, no matter what kind of use it is, it can be seen that its service life is relatively long. In this way, only by integrating the key features of the processing technology in this aspect can the effect of vibration reduction be very good, and the effect in use is more reliable.
Advantage 2: Although there are many customized models and specifications of air springs, the design is very simple in structure. Because there is no friction and rolling part on the surface, it will be more convenient and simpler during maintenance. Because it has been updated in technical parameters, it will become more and more common in actual main uses, and more and more target customers will be faced in the process of sales in the market, matching more suitable airbags for customers.
Advantage 3: The air spring can be flexibly adjusted in height, so after reducing the height in design, there is a significant improvement in travel arrangement. In this way, it is still very convenient during use. In general, there are many requirements for customization, but the key points of flexible adjustment in this regard should be scientifically and rationally mastered to ensure that it is more stable and reliable during use.
As an important equipment in industries such as industrial production, the air spring in the shock absorber should be very familiar to professionals, but for many people who have not been exposed to air springs, this kind of professional terminology is not very familiar, but with the increasing application of air springs, the industry volume of application is gradually expanding, and everyone has more or less heard of the name of air springs. Assembling vibration reduction equipment such as air springs can also solve a big problem for us. In addition, in various production line equipment work, in order to effectively improve the work production efficiency, improve the working environment and maintenance equipment and other conditions, the application of air springs is also increasingly used in machinery and equipment.

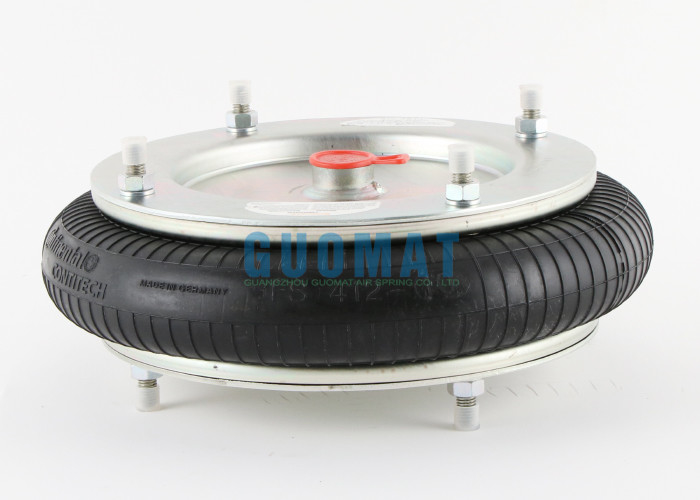

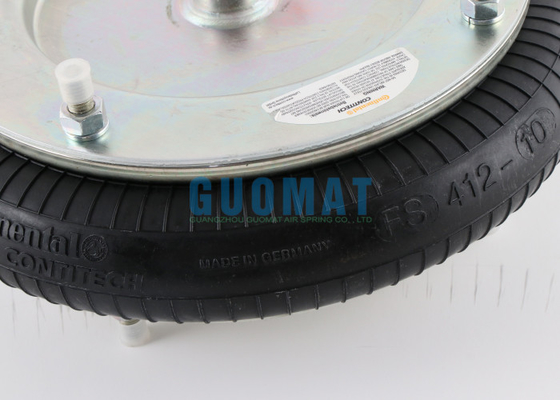

Picture For Contitech FS412-10 Air Spring
