Universal Air Bag A01-760-0335 Firestone Convoluted Air Spring For Commercial Laundry Machines

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B0335

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Item Name:	Convoluted Air Spring	Material:	Rubber + Steel
Warranty:	1 Year	Function:	Reduce Shock
Shock Absorber Type:	Gas-Filled	Firetsone:	A01-760-0335
Stroke:	75mm-230mm	Air Fitting:	3/8NPT
Highlight:	Universal Air Bag A01-760-0335 , Firestone Convoluted Air Spring , Commercial Laundry Machines Air Spring

Universal Air Bag A01-760-0335 Firestone Convoluted Air Spring For Commercial Laundry Machines

Product Introduction

GUOMAT 1B0335 air spring can replace the Firestone A01-760-0335.Using high-quality production materials and experienced production team.

Brand: GUOMAT/Neutral

Model o.: 1B0335

Type: Convoluted Air Spring

Material: Rubber and Steel

Warranty: 12 Months

Price: USD
Price Condition: FOB Guangzhou
Packaging: 4 air springs per carton
Package Size: 31.5 x 31.5 x 21 (cm)
Package Weigh: About 1.5 kg

FIRESTONE	A01-760-0335
FIRESTONE	A01 760 0335
FIRESTONE	A017600335

GUOMAT 2B0335 Convoluted Air Spring Technical Data

Maximum height: 230mm

Minimum height: 75mm

Stroke: 155mm

Maximum outer diameter: 203mm

Top cover plate diameter: 132mm

Top cover plate screw: 2X3/8-16UNC

Center distance between top cover plate screws: 70mm

Distance between top cover plate screw and air hole: 33mm

Top cover plate air hole: 3/8NPT

Bottom cover plate diameter: 132mm

Bottom cover plate threaded hole: 2X3/8-16UNC

Center distance between bottom cover plate threaded holes: 70mm

We proudly offer the highest quality replacement air springs that exceed original equipment requirements.

Specifications:
Suitable for almost all trucks, trailer air suspensions and industrial equipment, long-lasting and durable.
Absorbs road shock and extends the life of tractors and drills.
Reduces vibration and driver fatigue.
Long-term trouble-free operation, stable level; strong traction and comfortable ride.

Our Advantages:
1. A wide range of products
2. Accept original equipment orders
3. Affordable, safe and efficient logistics services
4. Flexible payment methods
5. Warranty guarantee

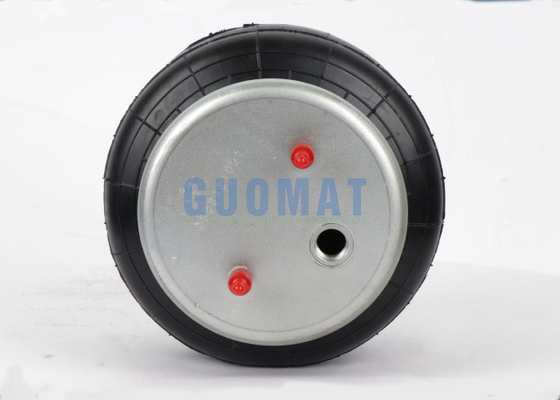

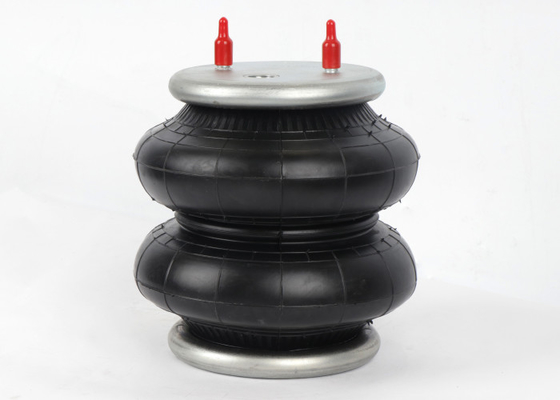

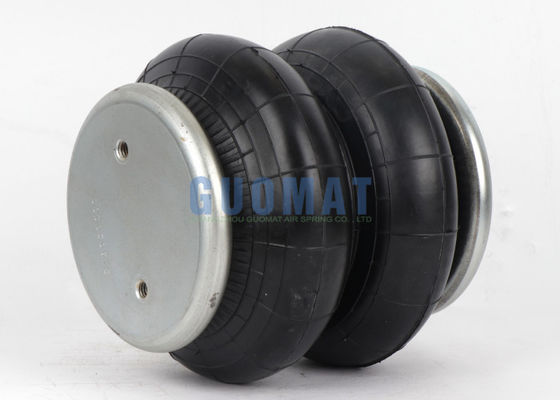

Product Picture

Universal Air Bag A01-760-0335 Firestone Convoluted Air Spring For Commercial Laundry Machines 0
