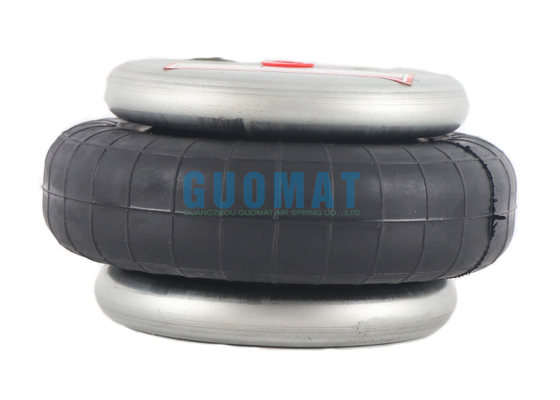

Stype 131 Firestone Rubber Air Shock W01-358-7731 Single Convoluted Air Lift Suspension
Product Description
Item Name: Machine Air Spring
Model No.: 1B7731
Brand: GUOMAT
Warranty: 12 Months
Type: Convoluted Air Spring
Service Offered: OEM
Suspension System: Air Spring Suspension
Applications: For Industrial Machine
Sample: Available
Type Of Goods: Air Spring/Air Bags/Air Ballons
Material: Imported Natrul Rubber
Operation: Gas-filled
Package: Standard Packing Or Customized
OEM Number/Cross Reference Numbers
Firestone Style: 131
Firestone Number: W013587731
Firestone Number: W01 358 7731
Firestone Number: W01-358-7731
Firestone Number: WO13587731
Firestone Number: WO1 358 7731
Firestone Number: WO1-358-7731
Technical Parameters of 1B7731
Top Cover Plate Diameter 115 mm
Bottom Cover Plate Diameter 115 mm
Screw Center Distance 44.5 mm
Gas Hole 1/4NPTF in the middle of the Top Cover Plate
Screw (Nut) Tooth 2pcsX3/8-16UNC
Rubber Bellows Max Outer Diameter 165mm
Rubber Bellows Max Height 115mm
Rubber Bellows Min Height 50mm
Stroke 65mm
W01-358-7731: Blind nuts,1/4NPT
W01-358-7742: Blind nuts,3/4NPT
W01-358-0127: Socket head aluminum bead rings (bolts,nuts,washers not included-use 1/4 cap screws
W01-358-7729: 3/4 NPT(only)upper plate,blind nuts lower plate
W01-358-0131: Rubber bellows only
Force Table
| Assembly Height(in.) |
Volume@100PSIG(in3) |
Pounds Force |
| @20PSIG |
@40PSIG |
@60PSIG |
@80PSIG |
@100PSIG |
| 4.0 |
56 |
160 |
400 |
650 |
910 |
1210 |
| 3.0 |
39 |
310 |
640 |
990 |
1350 |
1730 |
| 2.0 |
20 |
390 |
790 |
1200 |
1600 |
2050 |
Air Springs in Industrial Applications
Air springs are a technology that uses gas pressure to produce elastic effects. They have a wide range of innovative solutions and success stories in industrial applications. Here are a few sharing of innovative solutions and success stories about air springs in industrial applications:
1. Suspension system: Air springs can be used in suspension systems, such as in robots, light vehicles, workbenches, and conveying devices. By adjusting the air pressure, weight support and control can be achieved. This suspension system can provide a more stable motion platform, reduce vibration and noise, and improve the accuracy and reliability of the equipment.
2. Adjustable support system: Air springs can be used in adjustable support systems, such as in workbenches, seats, and heavy equipment. By adjusting the air pressure, the height and hardness of the equipment or workbench can be adjusted. This adjustable support system can be flexibly adjusted according to different needs and working conditions, improving work efficiency and comfort.
3. Shock absorber: Air springs can be used in shock absorbers, such as in transportation equipment, workbenches, and robotic arms. By adjusting the air pressure, shock and vibration absorption and mitigation can be achieved. This shock absorber can protect equipment and workpieces from damage caused by external impacts, extending the service life and maintenance cycle of equipment.
4. Vibration isolation system: Air springs can be used in vibration isolation systems, such as in precision instruments, optical equipment and electronic equipment. By adjusting the air pressure, vibration isolation and shock absorption can be achieved. This vibration isolation system can prevent external vibrations from interfering with and damaging the equipment, and improve the stability and accuracy of the equipment.
5. Load balancing system: Air springs can be used in load balancing systems, such as in hoisting equipment, cranes and suspension equipment. By adjusting the air pressure, the load can be balanced and controlled. This load balancing system can reduce the burden on workers and improve safety and work efficiency.

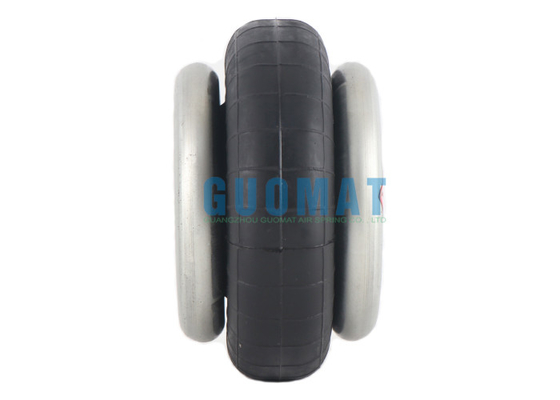

The Picture of 1B7731 Single Convoluted Air Spring
