FS 200-10 Contitech Air Bellows Actuator SP1B12 Phoenix Lift Axle Air Spring EB-250-85

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B200-10

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Industrial Air Spring	Warranty:	12 Months
Material:	Metal+Rubber	Function:	Reduce Shock
Firestone:	W01-M58-6374	Contitech:	FS 200-10
Norgren:	PM/31091	Dunlop(FR):	9 1/4x1 S09101
Highlight:	SP1B12 Contitech Air Bellows Actuator , EB-250-85 Contitech Air Bellows Actuator , Phoenix Lift Axle Air Bellows Actuator

FS 200-10 Contitech Air Bellows Actuator SP1B12 Phoenix Lift Axle Air Spring EB-250-85

Product Description

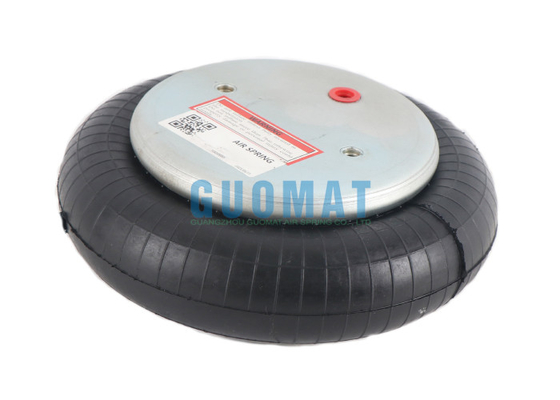

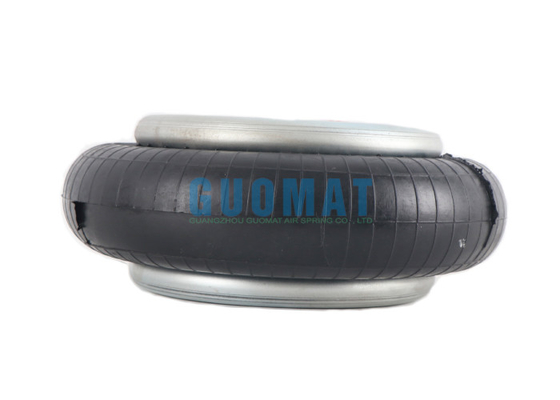

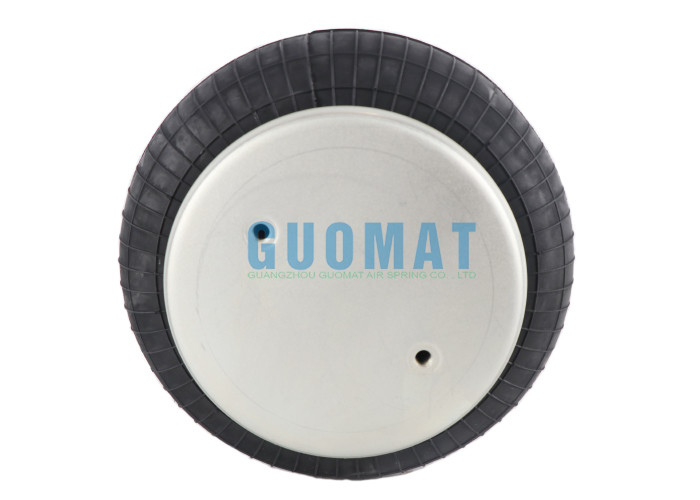

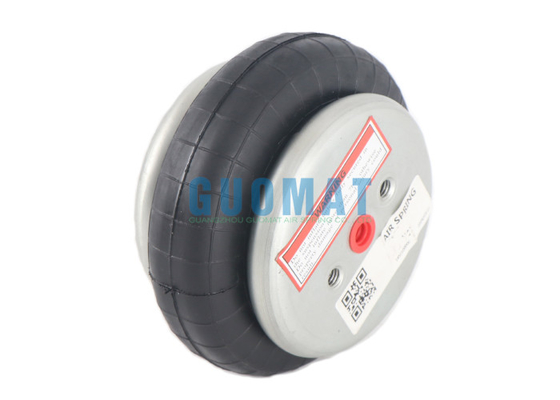

Product Description	Single Convoluted Air Spring
Model No.	1B200-10
Warranty	1 Year Warranty
Material	Natural Rubber+Steel
Country of Origin	China
Brand	GUOMAT/Neutral
Color	Black
Application	For Industrial Machine
Quality	High Quality
Delivery Time	About 3-8 working days
MOQ	10 pieces
Sample Order	Yes

GUOMAT 1B200-10 Detailed Technical Data

Failure Testing ≥3 millions

Working Temperature -40℃ bis +70℃

Top Cover Plate Diameter:160mm

Bottom Cover Plate Diameter:160mm

Gas Hole / Air inlet:G3/4

Rubber Bellows Natural Diameter:220mm

The Natural Height: 110mm

Top Cover Plate Screw (Nut) Tooth:2XM8X1.25

Bottom Cover Plate Screw (Nut) Tooth:2XM8X1.25

Screw Center Distance of Top Cover Plate:89mm

Screw Center Distance of Bottom Cover Plate:89mm

Screw And Gas Hole Distance of Top Cover Plate:38mm

1B200-10 Refer to the Following OEM Numbers

Firestone Part Number: W01-M58-6374 / WO1-M58-6374

Firestone Part Number: W01 M58 6374 / WO1 M58 6374

Firestone Part Number: W01M586374 / WO1M586374

Contitech Part Number: FS200-10

Contitech Part Number: FS 200-10

Contitech Part Number: FS200-10 CI

Contitech Part Number: FS 200-10 CI

Phoenix Part Number: SP1B12

Phoenix Part Number: SP 1B12

Phoenix Part Number: SP 1B 12

Dunlop(FR) Part Number: 9''1/4X1 S09101

Bosch Part Number: 822419004

Festo Part Number: EB-250-85

Norgren Part Number: PM/31091 81/4X1

FS200-10 CI Contitech Air Spring

Vibration isolation – dynamic characteristic values
Design height H: recommended 4.33 inch, minimum 3.54 inch

Pressure P	psi	40	60	80	100	120	Vol.V(in3)
Force (Load)	lbf	1130	1750	2420	3100	3630	159
Spring Rate	lbf/in.	780	1210	1650	2080	2510
Natural Frequency	Hz	2.6	2.6	2.6	2.6	2.6

Pneumatic application – static characteristic values

Force F

Pressure p	psi	406	60	80	100	120	Vol.V(in3)
Height H(in.)	4.5	1040	1620	2280	2910	3450	160
	4.0	1280	1960	2700	3380	3990	150
	3.5	1460	2220	3030	3800	4470	130
	3.0	1600	2430	3290	4120	4890	110
	2.5	1730	290	3480	4390	5250	86
