Mercedes Benz Air Suspension Air Strut A2203205613 S Class W220 Rear Right ABC Air Shock
Specifications
|
Type
|
Air suspension spring
|
Model NO.
|
220RABC
|
|
Car make
|
Mercedes Benz
|
Package
|
Strong Cartons
|
| Car Model |
S Class |
Platform |
W220 |
| Model Edition |
ABC |
Quality |
Good Quality |
|
Position
|
Rear
|
Warranty
|
One year
|
|
Rubber type
|
Natural rubber
|
Place of origin
|
Guangzhou China (mainland)
|
Construction Year:
1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
OEM Numbers:
A2203205613 / A 2203205613 / A 220 320 5613
A2203206213 / A 2203206213 / A 220 320 6213
A2203209013 / A 2203209013 / A 220 320 9013
A2203209213 / A 2203209213 / A 220 320 9213
A2203201813 / A 2203201813 / A 220 320 1813
A220320561380 / A 220320561380 / A 220 320 561380
A220320621380 / A 220320621380 / A 220 320 621380
A220320921380 / A 220320921380 / A 220 320 921380
2203201813 / 220 320 1813
2203205613 / 220 320 5613
220320561380 / 220 320 5613 80
2203206213 / 220 320 6213
220320621380 / 220 320 6213 80
2203209013 / 220 320 9013
2203209213 / 220 320 9213
220320921380 / 220 320 9213 80
Compatibility and Important Checks
Double-check your vehicle: Verify that you have a W220 S-Class (1999-2005) with ABC suspension (not Airmatic). Check the instrument panel for the ABC warning light ABC Sport button.
Left VS Right: A2203205613 is specific to the right rear. The left rear part number is different (A2203205513).
Long Wheelbase (L): Most parts are the same for both standard (V220) and long wheelbase (V221) W220 models, but always confirm compatibility when purchasing, especially when dealing with aftermarket suppliers.
Installation Notes (Critical)
Complexity: Replacing an ABC strut is a complex and potentially dangerous job due to the extremely high hydraulic pressures (up to 3000 PSI / 200 BAR).
Specialized Tools and Knowledge: Specific procedures are required to safely depressurize and pressurize the ABC system. After replacement, the system needs to be properly bled using a Mercedes-Benz diagnostic computer (e.g. STAR/Xentry). Improper bled treatment can result in immediate failure and potential damage.
Fluid Change: The correct and approved hydraulic fluid must be used (usually CHF 11S or CHF 202, please confirm for your specific year/model. Do not use Automatic Transmission Fluid (ATF) or Power Steering Fluid). Fluid flushing is highly recommended when replacing a strut.
Professional Advice: It is highly recommended that this repair be performed by a qualified Mercedes-Benz expert or dealer. Attempting this repair yourself without the proper tools, knowledge and safety procedures is highly likely to result in personal injury, component damage and suspension malfunction.
Before ordering, always double check compatibility with your specific Vehicle Identification Number (VIN), especially when using aftermarket parts.
Packing List
| Item Name |
Net Weight
(KG)
|
Gross Weight
(KG)
|
Package length
(CM)
|
Package width
(CM)
|
Package height
(CM)
|
Volume (CM3) |
| W220 ABC Air Suspension |
12 |
14 |
90 |
26 |
26 |
0.06 |

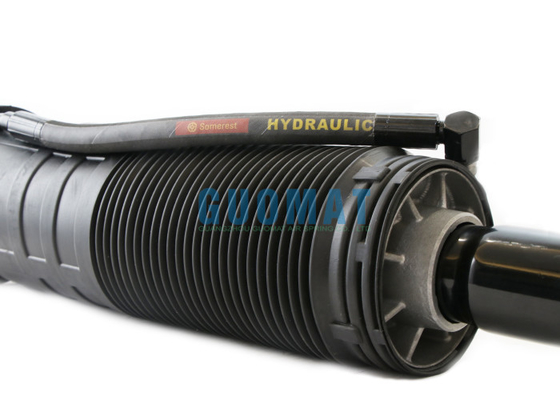

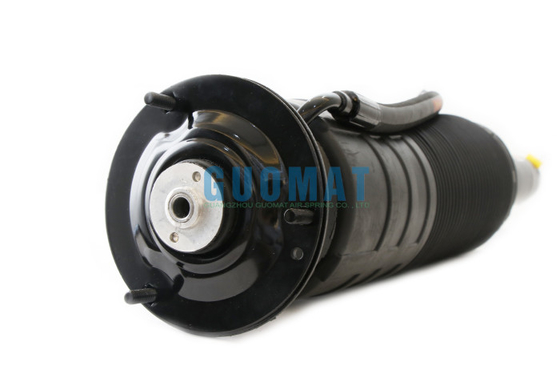

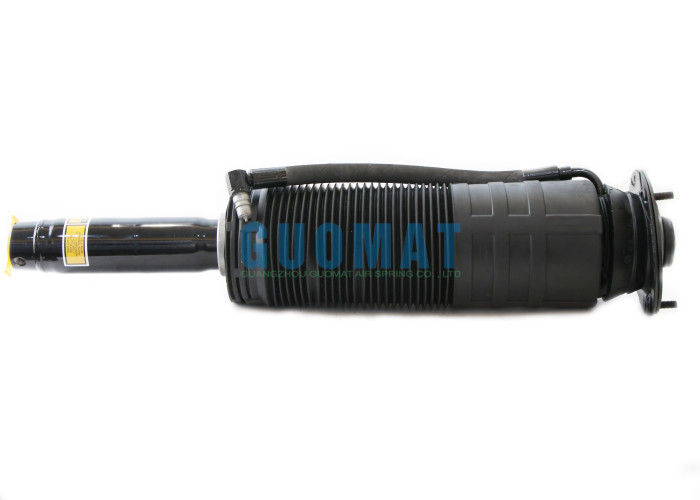

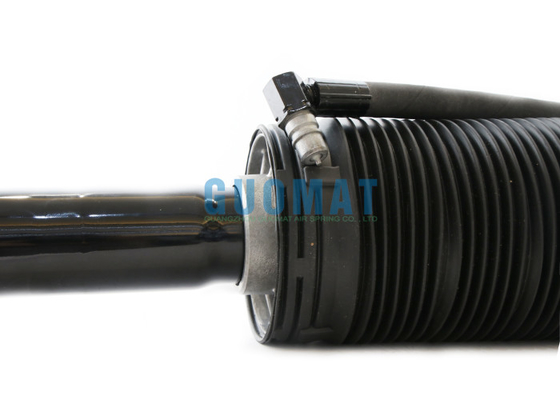

Product Images
