FS 1710-12 RS Contitech Single Convoluted Air Shock 45mm Bolts Flange Air Spring With Bead Rings

Air Spring with Flange Ring

Flange ring air spring is a special air spring structure, usually used for industrial shock absorption, vehicle suspension system or precision equipment support. Its core feature is to achieve rigid connection with external structure through flange ring (flange plate), while using the elastic characteristics of compressed air to provide buffering and support force. The following is a detailed analysis of this technology:

1. Basic structure and working principle

ring design:
Flange ring is a ring-shaped connector made of metal (usually steel or aluminum alloy) with bolt holes for fastening to the base or frame of the equipment. Its sealing and pressure bearing capacity are key.

Airbag part:
Adopt high-strength rubber composite material (such as nylon cord reinforced rubber), fill with compressed air inside, realize elastic deformation through air pressure changes, absorb vibration or support load.

Working principle:
When the load increases, the air pressure in the airbag increases, providing greater support force; conversely, the air pressure decreases to adapt to the displacement change. The flange ring ensures a stable installation and prevents air leakage.

2. Core features

• High load capacity: The flange ring provides rigid support and is suitable for heavy machinery or high-precision equipment.
• Adjustable stiffness: The spring stiffness can be changed by adjusting the air pressure to adapt to different working conditions.
• Excellent shock absorption: Air damping effectively isolates high-frequency vibrations (such as machine tools and precision instruments).
• Corrosion resistance: The flange surface is often galvanized or sprayed, suitable for harsh environments.

Other Types of Air Spring

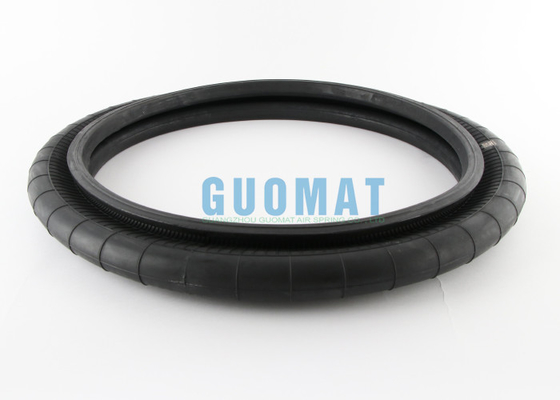

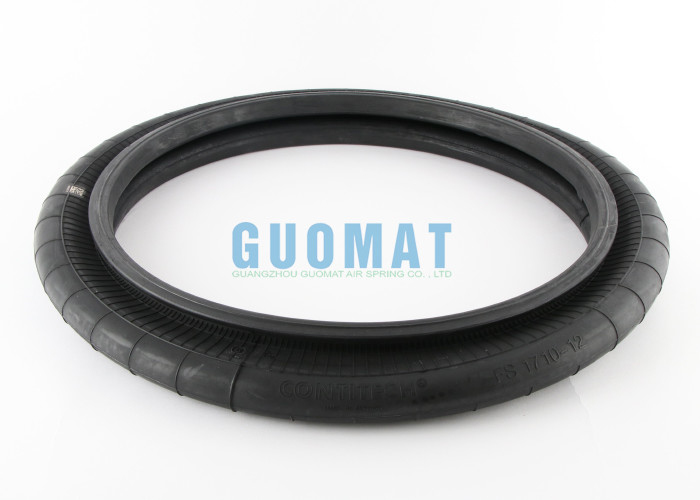

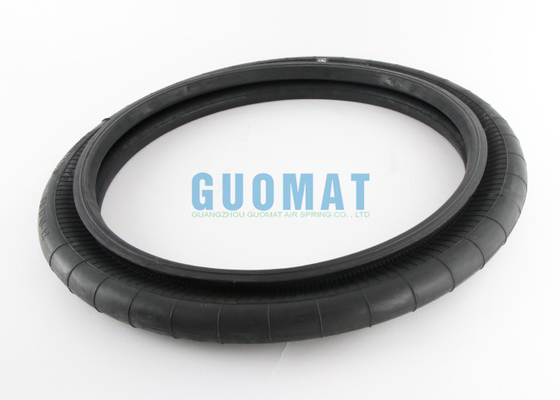

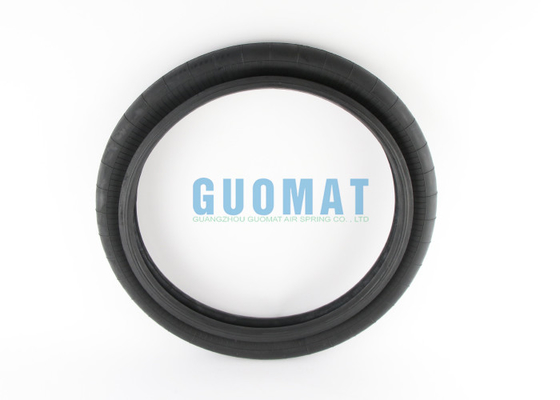

The Real Pictures-Contitech FS1710-12 RS Industrial Air Shocks
