W01-358-6910 Crimped Convoluted Air Springs FD200-19 320 Contitech Industrial Rubber Bellows

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6910

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Item Type:	Rubber Air Spring,Industrial Air Spring	Material:	Natural Rubber/Steel
Warranty:	1 Year Warranty	Function:	Reduce Shock
Firestone:	W01-358-6910	Goodyea:	2B9-200
Weight:	3.3KG	Packing Size:	252525(cm)
Highlight:	6910 Crimped Convoluted Air Springs , Rubber Bellows Crimped Convoluted Air Springs , Crimped Convoluted Air Springs

W01-358-6910 Crimped Convoluted Air Springs FD200-19 320 Contitech Industrial Rubber Bellows

Product Description

Item	Industrial Double Convoluted Air Spring
Material	Rubber + Steel
Warranty	12 Months
MOQ	10 Pieces
Certificate	ISO/TS16949:2009
Color	Black
Application	For Industrial Machine
Manufacturer	GUOMAT
Model No.	2B6910

Specifications and Detailed Technical Parameters
Top Cover Plate Diameter: 160mm
Bottom Cover Plate Diameter: 160mm
Gas Hole: 1/4NPTF
Center Distance of Gas Hole and Screw (Nut) Tooth: 44.5mm
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm
Rubber Bellows MAX Diameter: 251mm
Rubber Bellows Natural Diameter: 224mm
The Stroke: Min 75mm-Max 260mm

Cross-Reference Numbers

Contitech	FD200-19 320
Contitech	FD 200-19 320
Firestone Style	20
Firestone No.	W01-358-6910 / W01 358 6910 / W013586910
FleetPride	AS910
Goodyear	2B9-200 / 2B 9-200 / 2B9 200
Goodyear Flex No.	578-92-3-202 /
Triangle	AS-4320
Taurus	6325
TRP	AS69100
Automann	SP2B12R-6910

OE Manufacturer Numbers

R&S Truck	1027405
Ridewell	1003586910C
SAF Holland	57006910
Taurus	AS218-6910
Watson&Chalin	AS-0001
Dayton	354-6910
DINA	A-8127-19
Granning	2726
Hendrickson	S-8768
Hendrickson	45843-3
Loadguard	SC2011
Navistar/Fleetrite	554783C1
Prevost	63-0174
Suspension Dynamics	630174
Granning	1371

Advantages of Our Factory
1. Nearly 20 years of dedicated manufacturing experience
2. Full industry chain integrated service: from raw material procurement → independent research and development → production → quality inspection → logistics full process control
3. Strict quality control: triple quality inspection process: raw material entry inspection → production process sampling → finished product full inspection
4. Super high cost performance: large-scale production reduces marginal costs and prices are competitive
5. Exports to 30 countries including Europe, America, Southeast Asia, etc., providing localized after-sales support
6. 24-hour multi-language customer service response (Chinese/English/Spanish)

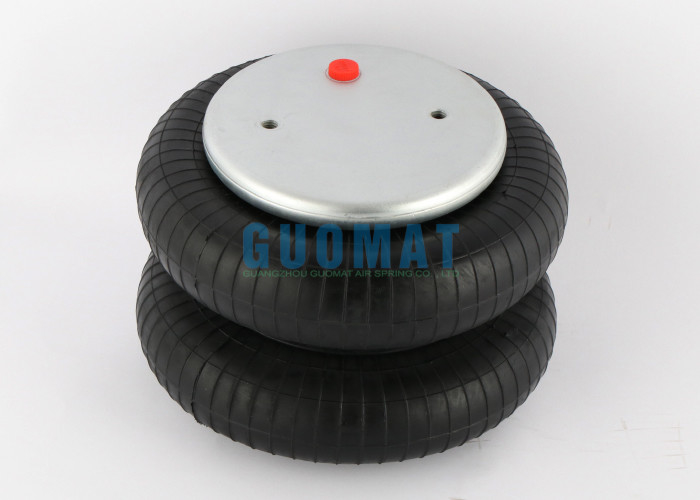

The Real Pictures
W01-358-6910 Crimped Convoluted Air Springs FD200-19 320 Contitech Industrial Rubber Bellows 0
