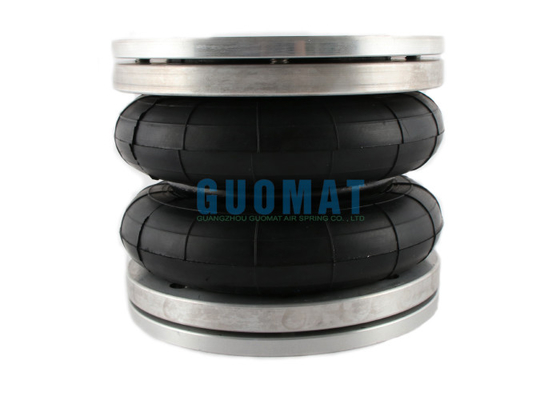

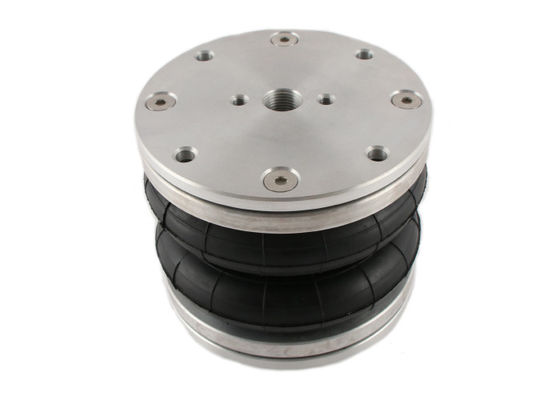

FD 76-14 DI CR Contitech Suspension Rubber Bellows 6X2 Norgren Industrial Air Spring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	6X2

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$69.9-99.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Package:	Neutral Brown Carton Packaging	Function:	Shock Absorption
Medium:	Compressed Air	Operation:	Gas-filled
Model No.:	2B6X2P	Convolutions:	2
Firestone:	W01-R58-4070	Contitech:	FD 76-14 DI

FD 76-14 DI CR Contitech Suspension Rubber Bellows 6X2 Norgren Industrial Air Spring

Product Description

Brand : GUOMAT

Model No.: 2B6X2P

Material: Rubber Bellows + Aluminum Cover

Warranty: 1 Year

Replaces These Air Springs (Air Bellows)

Continental ContiTech: FD 76-14 1/2 M8Continental ContiTech: FD 76-14 Dl G1/2
Continental ContiTech: FD 76-14 D1 G1/2 M8
Continental ContiTech: FD 76-14 DI G1/2 CR
Continental ContiTech: FD 76-14 DI CR G1/2
Continental ContiTech: FD 76-14 DI CR / FD76-14DICR / FD7614DICR

Continental ContiTech Bellow:FD 76-14 / FD76-14 / FD7614

Firestone No: WO1-R58-4070 / W01 R58 4070 / WO1R584070

Firestone Style: 6"x2
Dunlop FR: 6"x2 SP1646(COMPOSITE)

Dunlop FR: 6"x2 SP2917 (ALUMINIUM)

Dunlop UK (Pneuride): A3 1330 02 01/A313300201

Norgren: PM/31062/PM 31062/PM31062

Nominal 0 (inch)x convolutions: 6"x2/6"x2/6x2Parker: 6"x2 9109001A
YS-AIR:YS-160-2VS/YS 1602VS/YS1602VSManufacturer Original-part no. Model

Technical Data

Maximum height: 195mm
Minimum height: 80mm
Design height: 160mm
Cover diameter: 152.5mm
Threaded hole: M8
Center distance between threaded holes: 127mm
Maximum outer diameter: 178mm

Vibration isolation – dynamic characteristic values
Design height H: recommended 160mm, minimum 150mm

Pressure ［bar］	3	4	5	6	7	8	VoI.［I］
Force ［Load］［KN］	2.6	3.5	4.5	5.5	6.5	7.6	2
Spring Rate ［N/CM］	67.5	85.5	103.5	121.5	139.5	157
Natural Frequency ［HZ］	2.5	2.4	2.4	2.3	2.3	2.3

Pneumatic application – static characteristic values
Force F [kN]

Pressure P	［bar］	3	4	5	6	7	8	VoI.［I］
Height H(mm)	160	2.58	3.52	4.5	5.5	6.54	7.6	2
	140	3.3	4.46	5.64	6.84	8.07	9.33	1.7
	120	3.88	5.21	6.57	7.96	9.38	10.8	1.5
	100	4.59	6.16	7.76	9.4	11.1	12.8	1.2
