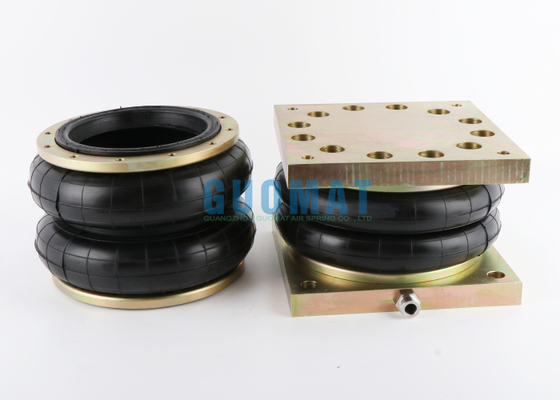

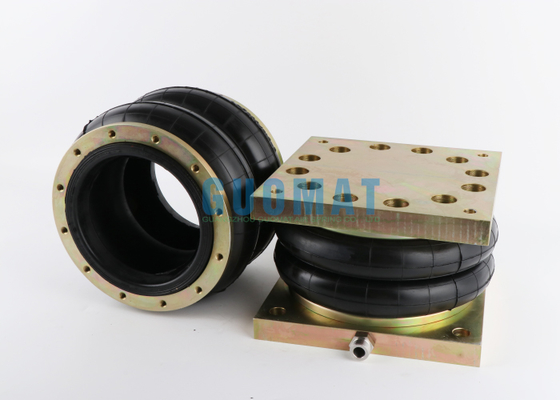

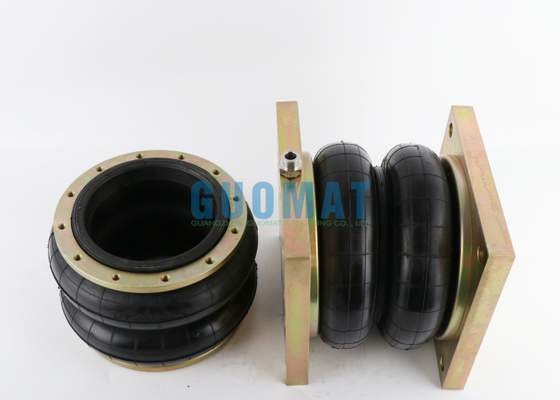

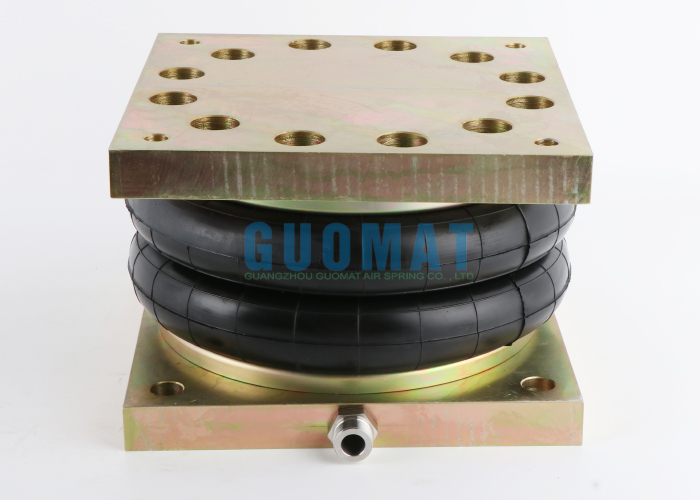

Double Convoluted Industrial Air Bags LHF200/212-2 Rubber Air Spring With Cover Plate

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	LHF200/212-2

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-89.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Features:	Complete Unit With Cover	Product Item:	Industrial Air Spring
Warranty:	12 Months	Material:	Rubber + Steel
Installation:	Direct Installation	Part No.:	LHF200/212-2
Color:	Black	MOQ:	6pcs

Double Convoluted Industrial Air Bags LHF200/212-2 Rubber Air Spring With Cover Plate

Product Description

Model	LHF200/212-2
Main Material	Natural Rubber
Warranty	1 Year
Number of Convolutions	2
Connection Method	Flange Connection with Cover Plate
Color	Black
Package	Strong Carton

The LHF200/212-2 airbag vibration isolator is an advanced vibration isolation device specially designed for linear vibrating screens to provide better vibration isolation effect. It uses airbags as vibration isolation elements, which have the advantages of small size, light weight, compact structure, easy installation, good damping effect and long service life.

The LHF200/212-2 airbag vibration isolator has a reasonable structural design, which can effectively isolate vibration and reduce the impact on the surrounding environment and equipment. It uses an airbag woven from high-strength steel wire, which has a high load-bearing capacity and fatigue resistance, and can withstand the impact and vibration generated during the screening process. At the same time, the filling inside the airbag uses a special rubber material, which can effectively absorb and isolate vibration and improve the vibration reduction effect of the equipment.

The installation of the LHF200/212-2 airbag vibration isolator is also very convenient, and it can be easily installed on various types of linear vibrating screens. It uses standardized interfaces and sizes, which can be matched with various screening equipment without special tools and skills. In addition, the LHF200/212-2 airbag vibration isolator is also equipped with intelligent sensors and controllers, which can monitor and control the operating status of the equipment in real time to ensure the stability and reliability of the equipment.

LHF Type Air Spring

Model	Convolutions	Design diameter	Maximum outer diameter	Front end outer diameter	Design height	Stroke
LHF100/166-2	2	100	160	112	176	74-200
LHF100/238-3	3	100	160	112	256	98-275
LHF150/212-2	2	150	230	158	222	90-250
LHF150/304-3	3	150	230	158	322	120-350
LHF200/212-2	2	200	280	208	224	90-250
LHF200/304-3	3	200	280	208	326	120-350
LHF230/120-1	1	230	320	182	124	90-250
LHF230/218-2	2	230	310	238	224	120-350
LHF230/316-3	3	230	310	238	326	60-150
LHF250/255-2	2	250	350	260	255	90-260
LHF250/218-2	2	250	330	258	224	120-360
LHF250/316-3	3	250	330	258	326	120-360
LHF256/92-1	1	256	310	210	92	50-145
LHF256/166-2	2	256	10	210	166	74-240
LHF280/218-2	2	280	360	288	224	90-260
LHF280/316-3	3	280	360	288	326	120-360
LHF300/218-2	2	300	380	308	226	90-270
LHF300/316-3	3	300	380	308	330	120-370
LHF320/186-2	2	320	380	260	186	80-280
LHF320/350-3	3	327	417	340	240	102-280
LHF320/350-3	3	327	417	340	350	125-415
LHF340/226-2	2	340	420	340	226	90-270
LHF400/218-2	2	400	480	408	228	90-275
LHF400/316-3	3	400	480	408	334	120-375
LHF440/218-2	2	440	520	448	218	90-248
LHF440/316-3	3	440	520	448	316	120-365
LHF500/220-2	2	500	580	508	220	92-252
LHF500/320-3	3	500	580	508	320	120-370
LHF580/262-2	2	580	680	588	262	92-308
LHF580/384-3	3	580	680	588	384	125-450
