FT 330-29 431Contitech Triple Convolutions Air Lift Bag 3B12-300 Goodyear Industrial Air Spring
Product Information
Project Description: Triple Convoluted Air Spring For Industrial Machine
Brand: GUOMAT
Model Number: 3B8008
Warranty: 1 Year
Material: Rubber and Steel
Cross Reference Number
Cross For: Firestone
Competitor Part No.: W01-358-8008 / W01 358 8008 / W013588008
Cross For:Contiteh
Competitor Part No.: FT330-29 431 / FT 330-29 431 / FT330-29431
Cross For: Goodyear
Competitor Part No.: 3B12-300 / 3B 12-300 / 3B12 300 / 3B12300
Cross For:Goodyear
Competitor Part No.: 578-93-3-100 / 578 93 3 100 / 578933100
Cross For: Triangle
Competitor Part No.: 6334/4431
Cross For: Dayton
Competitor Part No.: 3548008
Cross For: Leland
Competitor Part No.: Sc2130
Cross For: Ridewell
Competitor Part No.: 1003588008C
Cross For: Silent Drive
Competitor Part No.: AS-0019
Cross For: Hendrickson
Competitor Part No.: S11637/NS501690
Cross For: Watson&Chalin
Competitor Part No.: AS-0019
Cross For: EZ RIDE
Competitor Part No.: 8030155
Cross For: SAF Holland
Competitor Part No.: 57008005
Cross For: Tuthill
Competitor Part No.: 6392
Technical Data
| Top cover plate diameter |
231mm |
| Threaded holes of top cover plate |
3/8-16UNC |
| Combination studs of top cover plate |
1/4NPTF,3/4-16UNF |
| Center distance between threaded holes of top cover plate and combination studs |
140mm |
| Bottom cover plate diameter |
231mm |
| Threaded holes of bottom cover plate |
2X3/8-16UNC |
| Center distance between threaded holes of bottom cover plate |
140mm |
| Natural outer diameter |
295mm |
| Design height |
297mm |
Composition of the Air Spring
Inner rubber layer
Excellent permeation resistance
Pressure maintenance
Specific elastic modulus
Dynamic crack resistance
Moisture resistance
Outer rubber layer
Mechanical protection
Optimal corrosion protection
UV and chemical resistance
Prevention of premature cracking
Energy dissipation - puncture resistance
Chemical resistance
Perfect sealing of top and bottom plates
Assembly plates
Uniform coating thickness
Moisture resistance
Crack resistance especially in welding areas
Optimized plate thickness for heavy loads
Impact resistance
Clean design for easy assembly
Fabric layer
Structural elasticity
Ensuring geometry
Reinforcement layer bonding
Perfectly spaced layers for uniform force distribution
Optimum ply angle between first and second layer

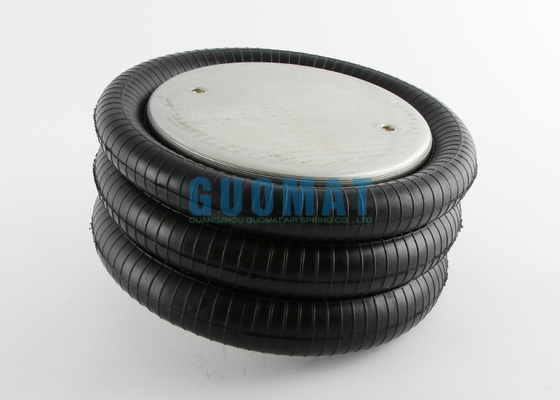

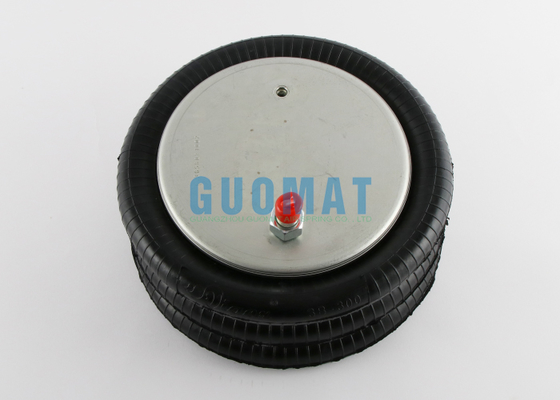

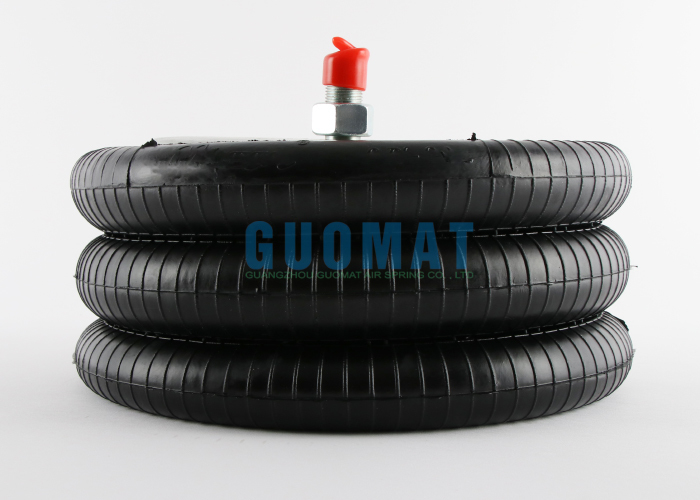

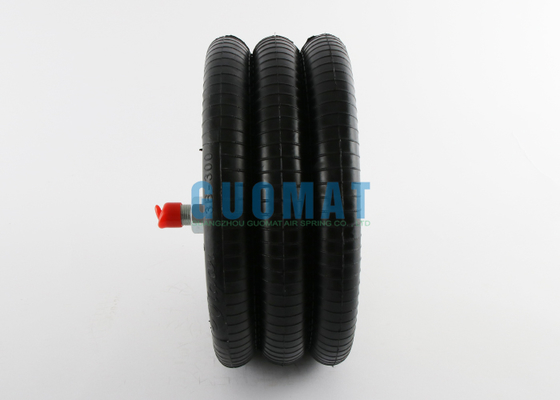

Product Image
