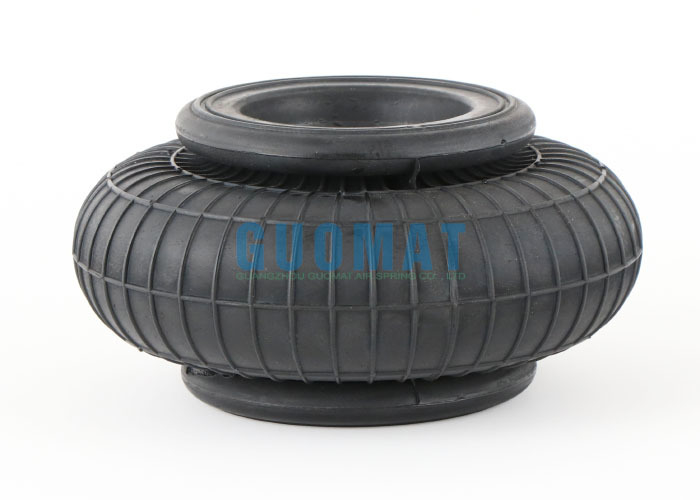

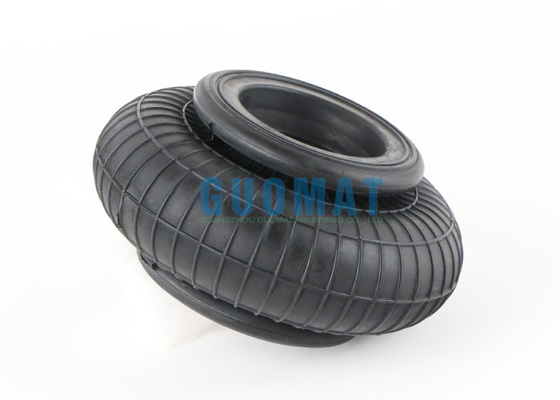

FS70-7 Contitech Replacement Air Springs W01-358-0131 Firestone Rubber Air Bellows Spring

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B7070R

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Item:	Rubber Air Spring	Quality:	100 % Tested
Transport Package:	Neutral Packing	HS Code:	8708809000
Type:	Gas-Filled	Contitech:	FS 70-7 VP
Firestone:	W01-358-0131	Color:	Black

FS70-7 Contitech Replacement Air Springs W01-358-0131 Firestone Rubber Air Bellows Spring

Specifications and Detailed Technical Parameters: 1B7070R

Type: Rubber Air Spring Bag

Brand: GUOMAT

Model No.: 1B7070R

Warranty: 1 Year

Material: Good Quality Rubber

HS Code: 8708809000

Other Name: Air Suspension

Convolutions: Single Convoluted

OEM Number/Cross Reference Number

Contitech: FS70-7VP

Contitech: FS 70-7VP

Contitech: FS70-7 VP

Contitech: FS 70-7 VP

Firestone: W01-358-0131

Firestone: W01 358 0131

Firestone: W013580131

1B7070 Assembly Part Number

GUOMAT NO.: 1B7070

CONTITECH NO.: FS70-7

CONTITECH NO.: FS 70-7

CONTITECH NO.: FS70 7

CONTITECH NO.: FS707

PHOENIX NO.: SP1B05

PHOENIX NO.: SP 1B05

PHOENIX NO.: SP 1B 05

BOSCH NO.: 822419002

FESTO NO.: EB-165-65

FESTO NO.: EB 165 65

FESTO NO.: EB16565

WEFORMA NO.: WBE 200-E1

WEFORMA NO.: WBE200-E1

Compressed Height	2.01"
Max Expanded Height	4.53"
Max Diameter	6.5"
Max Inflation Pressure	120 psi
Max Stroke	2.52"

W01-358-7731: Blind nuts,1/4 NPT

W01-358-7742: Blind nuts,3/4 NPT

W01-358-0127: Socket head aluminum bead rings(bolts,nuts,washers not included-sue 1/4 cap screws)

W01-358-7729: 3/4NPT(only)upper plate,blind nuts plate

W01-358-0131: Rubber bellows only

Assembly Height (in.)	Volume@100PSIG(in³)	Pounds Force
Assembly Height (in.)	Volume@100PSIG(in³)	@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
4.0	56	160	400	650	910	1210
3.0	39	310	340	990	1350	1730
2.0	20	390	790	1200	1600	2050
