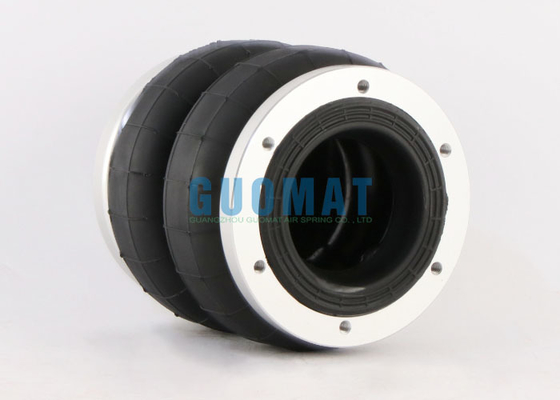

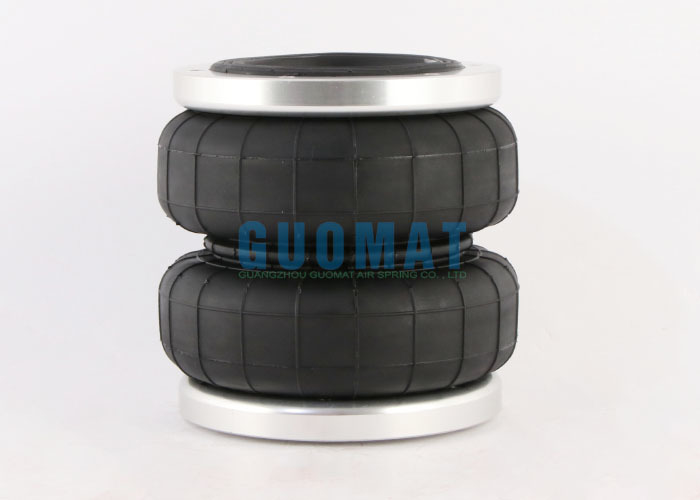

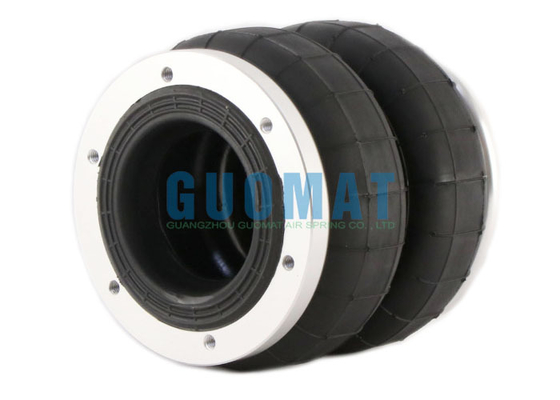

W01-358-0030 Firestone Industrial Bellows Actuator 25 Style Rubber Air Spring For Scissor Lifts

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6X6F

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$69.9-99.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Industrial Air Spring	Material:	Rubber Bellow And Steel Cover
Warranty:	1 Year Warranty	Packaging:	Carton/Cartons
Type:	With Flange Ring	MOQ:	6pcs
Convolutions:	2	Firestone:	W01-358-0030

W01-358-0030 Firestone Industrial Bellows Actuator 25 Style Rubber Air Spring For Scissor Lifts

Product Description

Item	Air Spring/Shock Absorber Spring/Air Bellows
Brand	Guomat/Neutral
Material	Rubber And Steel
Warranty	1 Year
MOQ	10 Pieces
Payment	T/T, L/C, PayPal, Western Union
Delivery Time	2-8 Working Days
Package	(1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package
After Service	(1) Examination Before Shipment (2) Follow Up The Customers' Feedback

Cross Reference Number

Firestone Part Number: W01-358-0030

Firestone Part Number: W01 358 0030

Firestone Part Number: W013580030

Firestone Part Number: WO1-358-0030

Firestone Part Number: WO1 358 0030

Firestone Part Number: WO13580030

Firestone Style Number: 25

Technical Data

Maximum Diameter @ 100 PSIG (inches): 6.4
Maximum Height (inches): 6.1
Maximum Stroke (inches): 3.1
Minimum Usable Height (inches): 3
Force @ 80PSI at Stroke of 1 Inch (pounds): 1450
Force @ 80PSI at Stroke of 3 Inch (pounds): 880
Force @ 80PSI at Stroke of Maximum Stroke (pounds): 820
Style Cross-Ref Extended Height (Similar End Closure) Style Number: 255-1.5
Material: 2-Ply Standard Cord

Bead ring Type: 4
Bolt Circle Diameter (inches): 4.5
Number of Bolts (each ring): 6
Design Height:5.5

Assembly Height(mm)	Volume@7 bar (cu cm)	EFF Area @7 bar(cm aq)	kN Force
Assembly Height(mm)	Volume@7 bar (cu cm)	EFF Area @7 bar(cm aq)	@ 3 bar	@ 4 bar	@ 5 bar	@ 6 bar	@ 7 bar
150	1421	62	1.64	2.29	2.92	3.66	4.32
140	1344	74	2.03	2.81	3.63	4.50	5.30
130	1253	85	2.39	3.27	4.13	5.09	5.96
120	1159	95	2.69	3.66	4.61	5.66	6.62
110	1049	103	2.97	4.00	5.04	6.16	7.18
100	939	109	3.21	4.27	5.38	6.57	7.65
90	817	116	3.41	4.52	5.69	6.95	8.10
80	698	122	3.55	4.76	5.98	7.31	8.52
