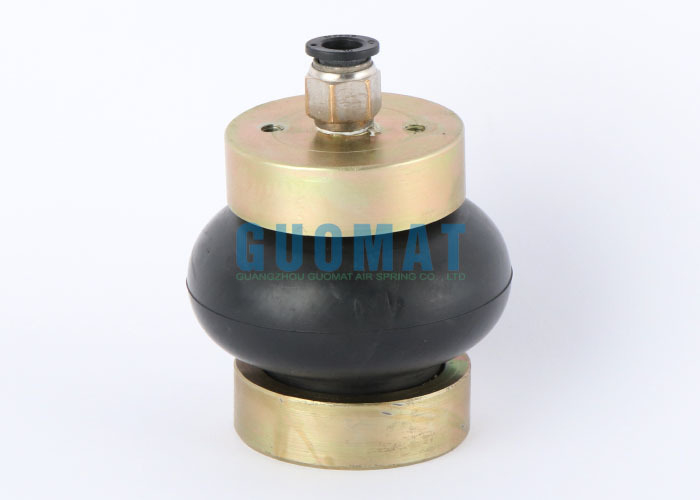

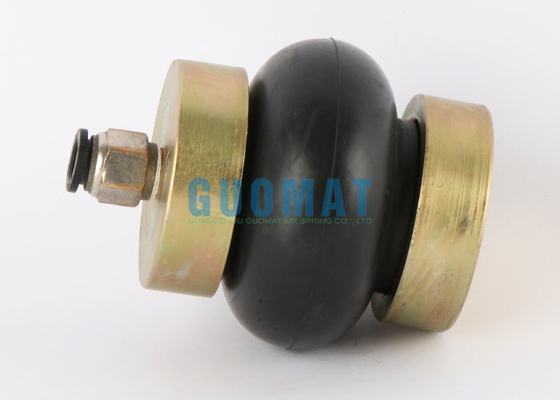

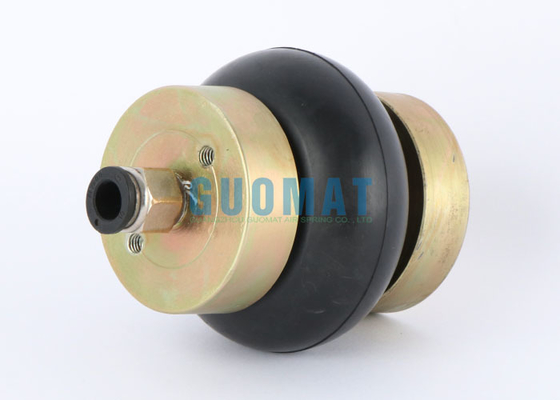

ZF40/60-1 Single Convoluted Air Spring 2.5X1 Rubber Bellows Air Bags Dia. 63MM

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	ZF40/60-1

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$59.9-79.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Type:	Single Convoluted Airbag	Warranty:	1 Year
Material:	Rubber + Steel	Packing:	Brown Carton
Quality:	100% Tested	Part No.:	ZF40/60-1
Usage:	Industrial	Function:	Reduce Vibration

ZF40/60-1 Single Convoluted Air Spring 2.5X1 Rubber Bellows Air Bags Dia. 63MM

Company Information

Item	Air Spring/Shock Absorber Spring/Air Bellows
Brand	GUOMAT
Model Number	ZF40/60-1
Material	Rubber And Steel
Warranty	1 Year
MOQ	1 PCS If We Have Stock
Package	(1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package
Delivery Time	2-8 Working Days
Payment	T/T, L/C, PayPal, Western Union
After Service	(1) Examination Before Shipment (2) Follow Up The Customers' Feedback
Main products we sell	Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump

Technical Data

Range: 2.5X1
Medium: compressed air
Operation mode: single action
Stroke length: 40 mm
Stomatal size: G1/8
Nominal diameter: 2.5
Convolution number: 1
Operation mode: single action
Working pressure: 0 ... 8 bar
Working temperature: -30 ... 50°C
Theoretical power: 5750 N

No.	Part No.	Convolutions	Design diameter (mm)	Maximum outer diameter (mm)	Front end outer diameter (mm)	Design height (mm)	Stroke (mm)	Effective area (cm²)	0.4-0.7MP load capacity (kg)
1	GF40/60-1	1	40	80	80	60	40-70	12.6	50-88
2	GF80/58-1	1	80	120	110	58	35-66	50.3	201-352
3	GF100/140-2	2	100	150	145	140	68-168	7805	314-550
4	GF100/166-2	2	100	160	160	176	74-200	78.5	314-550
5	GF100/238-3	3	100	160	160	256	98-275	78.5	314-550
6	GF120/102-1	1	120	188	180	102	50-118	113.1	452-792
7	GF150/206-2	2	150	230	220	216	74-250	176.7	707-1237
8	GF150/298-3	3	150	230	220	316	98-350	176.7	707-1237
9	GF200/206-2	2	200	280	280	218	74-250	314.2	1257-2199
10	GF200/298-3	3	200	280	280	320	98-350	314.2	1257-2199
11	GF230/206-2	2	230	310	310	218	74-250	415.5	1662-2908
12	GF230/298-3	3	230	310	310	320	110-350	415.5	1662-2908
13	GF250/206-2	2	250	330	330	218	74-250	490.9	1964-3436
14	GF250/298-3	3	250	330	330	320	110-350	490.9	1964-3436
