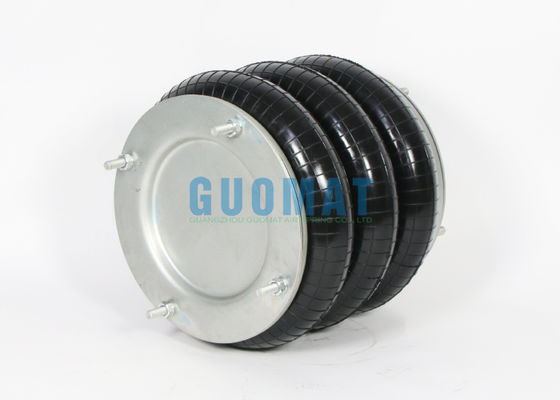

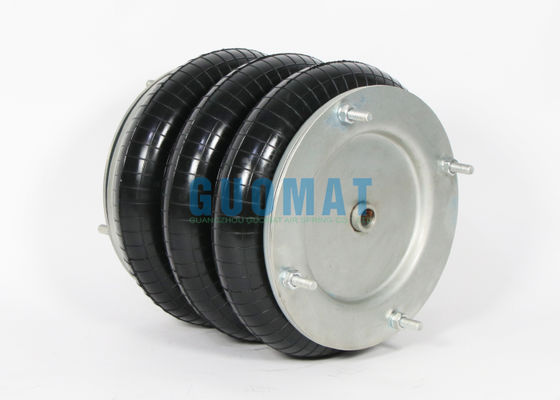

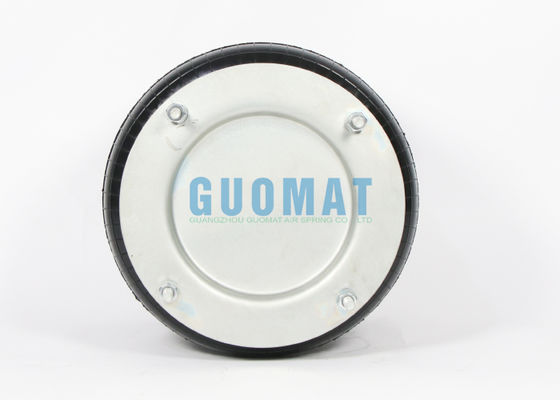

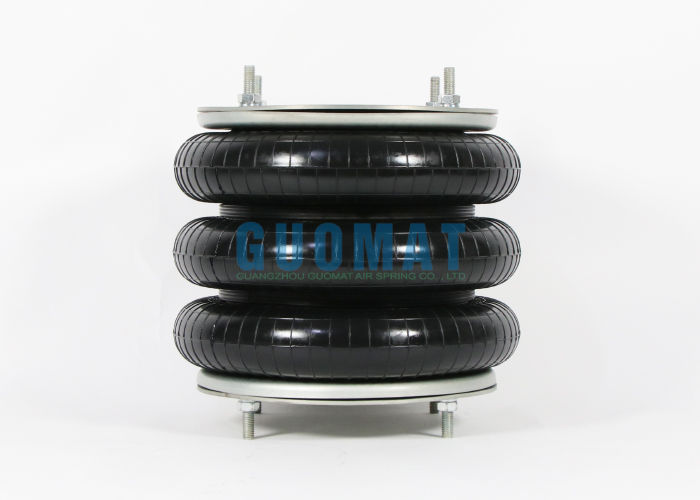

10X3'' Triple Convoluted Type Air Bags FT210-32 DS Contitech Flange Rubber Air Actuator

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B10X3T

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$139.9-159.9/pc
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Spring Material:	Rubber And Steel	Condition:	Brand New
Warranty:	1 Year	Applications:	Industrial Machine
Air Fitting:	G1/2	Color:	Black
Firestone:	W01R584095	Convolutions:	3
Highlight:	Contitech Flange Air Actuator , 10X3 Triple Convoluted Air Bags , Triple Convoluted Type Air Bags

10X3'' Triple Convoluted Type Air Bags FT210-32 DS Contitech Flange Rubber Air Actuator

Product Description

Brand: GUOMAT

Model No.: 3B10X3T

Bellows No.: 10''x3

Cross Reference No.:

ContiTech Part Number: FT210-32

ContiTech Part Number: FT 210-32

ContiTech Part Number: FT210-32 DS

ContiTech Part Number: FT 210-32 DS

ContiTech Part Number: FT210-32 DS G1/2

ContiTech Part Number: FT 210-32 DS G1/2

ContiTech Part Number: FT210-32 DS G1/2 M8

ContiTech Part Number: FT 210-32 DS G1/2 M8

Firestone Part Number: W01R584059

Firestone Part Number: W01 R58 4059

Firestone Part Number: W01-R58-4059

Firestone Part Number: WO1R584059

Firestone Part Number: WO1 R58 4059

Firestone Part Number: WO1-R58-4059

Dunlop Part Number: SP1539

Norgren Part Number: M/31103

Norgren Part Number: M 31103

Norgren Part Number: M31103

10''x3 Air Bellow Technical Data

The design height: 322mm
Effetive diameter: 200mm
Compressed height: 118mm
Maximum height: 400mm
Full strock: 282mm
The rubber bellows Max.outer diameter: 270mm
Cover plate: 210mm
Gas hole: G1/2
Bolt/Stud: M10
Working medium: water,air
Working pressure: ≤0.7Mpa
Burst pressure: ≥1.6Mpa
Endurance cycle: ≥10⁶
Temperature: -35℃-+60℃

Pneumatic Application – Static Characteristic Values

Force F (kN)

Pressure p	bar	3	4	5	6	7	8	Vol.v(l)
Height H (mm)	350	5.62	7.66	9.75	11.8	14	16.3	11
	300	7.1	9.56	12	14.5	17.1	19.8	9.5
	250	8.62	11.6	14.6	17.6	20.7	24	8.2
	200	10.3	13.8	17.3	20.8	14.4	28.3	6.6
	150	12.1	16.1	20.1	24.2	28.3	32.6	4.7
