Product Description

Item: Rubber Industrial Air Spring

Model Number: 2B7400

Brand: GUOMAT/Neutral

Material: Rubber+Steel

Spring Warranty: 12 Months

Cross Reference Number

Firestone Style: 22

Firestone Nunber: W01-358-7400/W013587400/W01 358 7400

Firestone Nunber: WO1-358-7400/WO13587400/WO1 358 7400

Contitech Number: FD330-22 313/FD 330-22 313/FD330-22313

Goodyear Number: 2B12-209/2B 12-209/2B12 209/

Goodyear Rubber Number: 578923309/578 92 3 309/578-923-309

Triangle Number: 6316/4313

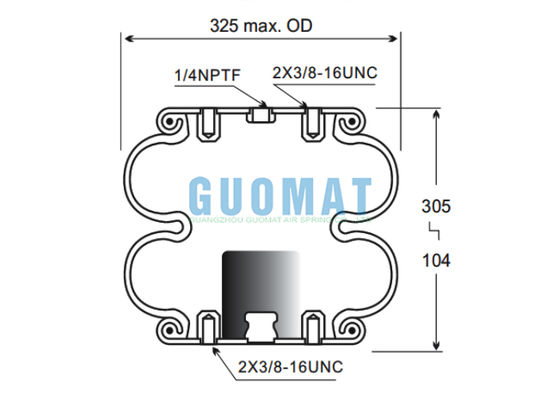

2B7400 Industial Air Spring Technical Data

Top Plate Diameter: 231mm

Air Fitting: 1/4-18NPTF

Threaded Hole on the Top Plate: 2X3/8-16UNC

Distance Between Threaded Holes on Top Plate: 157mm

Distance Between Threaded Hole and Air Fitting: 73mm

Bottom Plate Diameter: 111mm

Threaded Hole on the Bottom Plate: 2X3/8-16UNC

Distance Between Threaded Holes on Bottom Plate: 157mm

Rubber Bellow Max. Diameter: 325mm

Max. Height: 305mm

Min.Height: 104mm

Contitech Air Spring

FD 330-22 363

FD 330-22 472

FD 330-22 471

FD 330-22 500

FD 330-22 313

FD 330-22 337

FD 330-22 318

FD 330-22 346

FD 330-22 364

FD 330-22 366

FD 330-22 367

FD 330-22 365

FD 330-22 368

FD 330-22 331

FD 330-22 327

FD 330-22 343

FD 330-22 334

FD 330-22 363

FD 330-22 364

Firestone Style 22

Firestone W01-358-7180: Blind nuts,1/4NPT

Firestone W01-358-7400: Blind nuts,1/4NPT,bumper

Firestone W01-358-7184: Blind nuts,3/4NPT

Firestone W01-358-7185: Blind nuts,3/4NPT,bumper

Firestone W01-358-7431: Countersunk steel bead rings 1 5/8 bolts,washers

Firestone W01-358-0226: Rubber Bellows ony

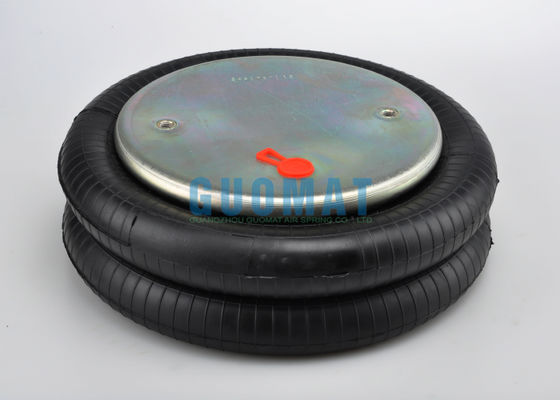

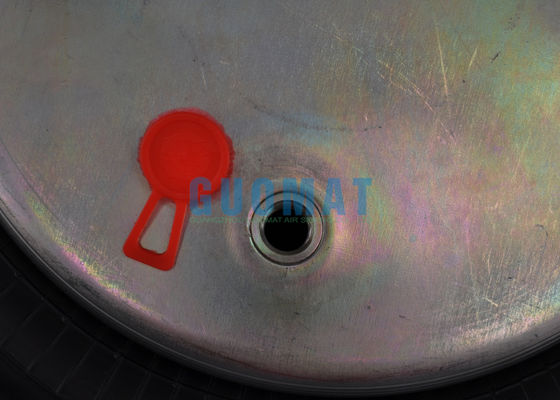

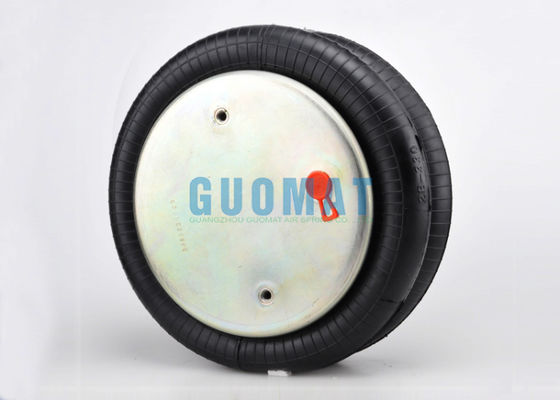

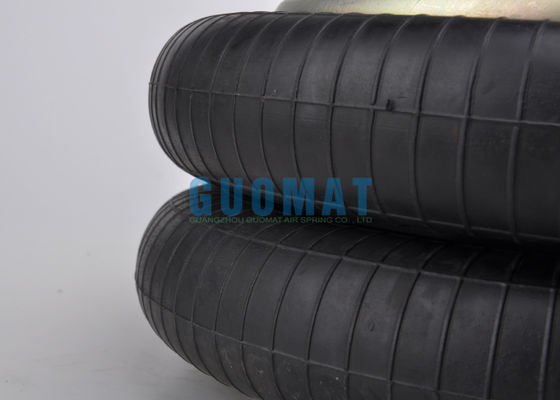

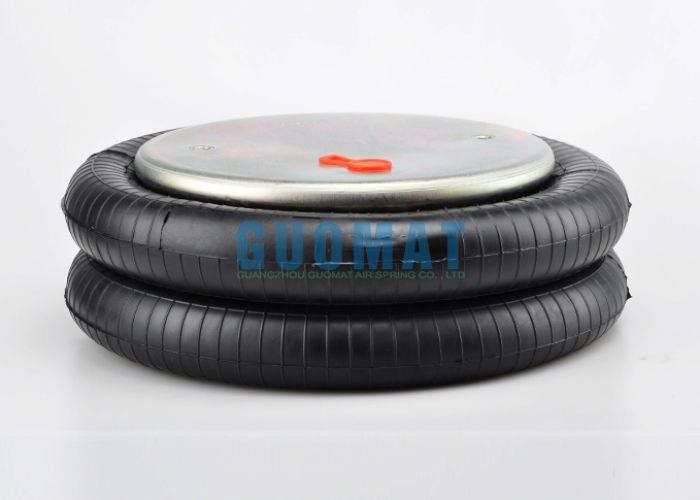

Picture Show
