W01-358-7996 Firestone Rubber Air Spring FT 330-29 520 Contitech Industrial Air Bellows Bag Bags
Product Introduction
Item: Industrial Air Spring
Brand: GUOMAT
Model No.: 3B7996
Material: Rubber and Steel
Structure: Top Cover Plate,Bottom Cover Plate and Rubber Bellow
Warranty: 12 Months
Refer Number
Firestone Part Number: W01-358-7996
Firestone Part Number: W01 358 7996
Firestone Part Number: W013587996
Firestone Bellows Number: 38
Contitech Part Number: FT 330-29 520
Contitech Part Number: FT330-29 520
Contitech Part Number: FT330-29520
Goodyear Part Number: 3B12-335
Goodyear Part Number: 3B 12-335
Goodyear Part Number: 3B12 335
Goodyear Bellows Number: 578933100
Goodyear Bellows Number: 578 93 3 100
Goodyear Bellows Number: 578-93-3-100
Triangle Part Number: 6334
Triangle Part Number: 4520
Technical Parameters
| Nut/blind nut |
|
Top plate screw (nut) teeth: M12X1.75
Top plate combo stud: 1/4NPTF,M18X1.5
Bottom cover plate screw (nut) teeth: 2X3/8-16UNC
The screw center distance of the cover plate: 157.5mm
|
| Air hole/air inlet/air fittings |
1/4NPTF
The distance betweem the air hole/air inlet/air fittings and the screw: 157.5mm |
| Rubber Bellows |
|
Rubber bellows max.outer diameter: 330mm
Max.height: 460mm
Min.height: 117mm
Spring stroke: 343mm
|
| Plate diameter |
Top plate diameter (width): 231 mm
Bottom cover plate diameter: 231 mm |
| Bumper block/bumper block |
| With |
| Belt loop/Belt loop/Girdle hoop |
| Without |
Triple Convoluted Type Air Spring
Triple convoluted air springs are a specific type of air spring characterized by three distinct lobes (or convolutions) in their flexible rubber bellows. This design offers a unique balance of properties, making them suitable for demanding applications where high load capacity, compactness, progressive spring rates, and stability are critical.
Primary Applications:
Heavy-Duty Truck & Trailer Suspensions:
Drive Axles: Handling the high static and dynamic loads of loaded trucks, especially on rough roads. The progressive rate helps manage varying loads and impacts.
Trailer Axles: Supporting heavy cargo loads efficiently. Compact height is often beneficial here.
Cab Suspensions: Isolating the driver's cabin from chassis vibrations and impacts, improving comfort and reducing fatigue.
Off-Highway & Construction Equipment:
Large Haul Trucks (Mining, Quarry): Essential for carrying massive payloads over extremely rough terrain. High load capacity and long stroke are critical.
Articulated Dump Trucks (ADTs): Handling heavy loads and the articulation stresses inherent in their design.
Wheel Loaders, Excavators (Suspension-equipped models): Providing ride comfort and stability for operators moving between sites or on rough job sites. Compactness can be important.
Agricultural Machinery (Large Tractors, Combines): Supporting heavy implements, improving ride quality over fields, and providing load leveling.
Industrial Machinery & Vibration Isolation:
Large Presses, Machine Tools: Leveling heavy machinery and isolating vibrations to protect the machine foundation and surrounding equipment.
Test Rigs & Simulators: Providing precise load support and vibration isolation for sensitive testing environments.
Foundations for Sensitive Equipment: Isolating equipment like MRI machines or precision manufacturing tools from building vibrations.
Bus Suspensions:
Heavy-Duty Coaches & City Buses: Supporting the vehicle structure, passengers, and cargo. The progressive rate provides a good balance of comfort when empty and stability when fully loaded. Compact height can be advantageous.

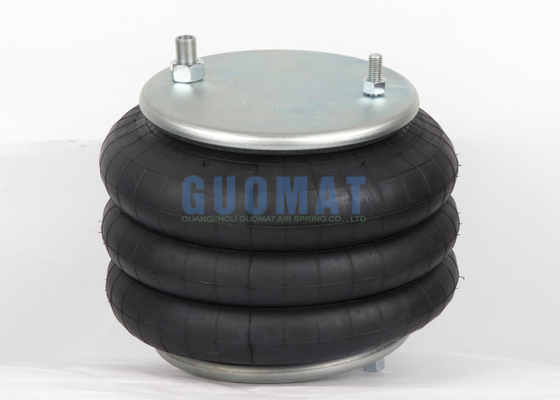

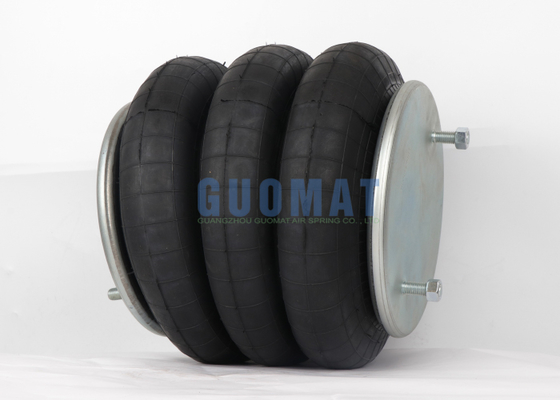

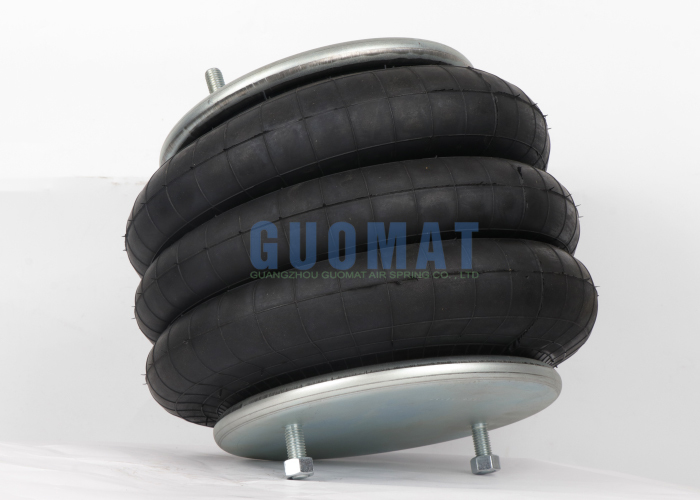

The Related Picture
